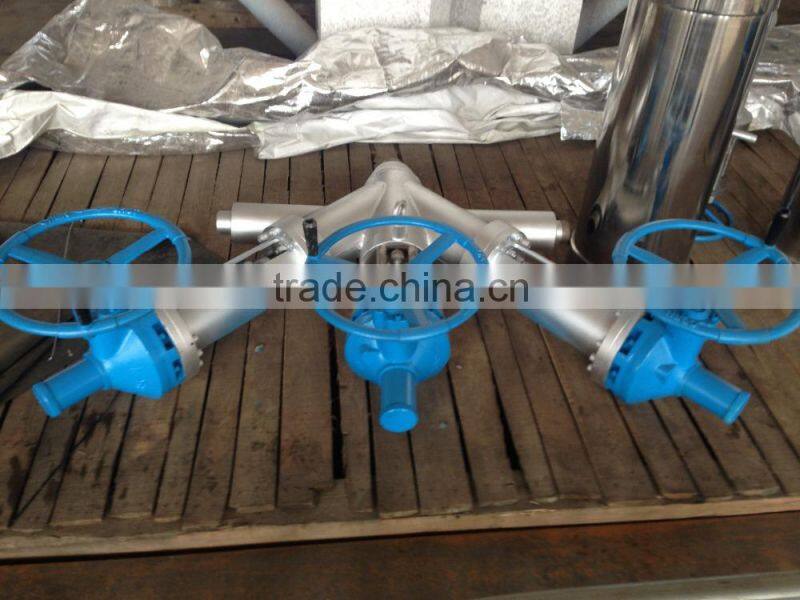

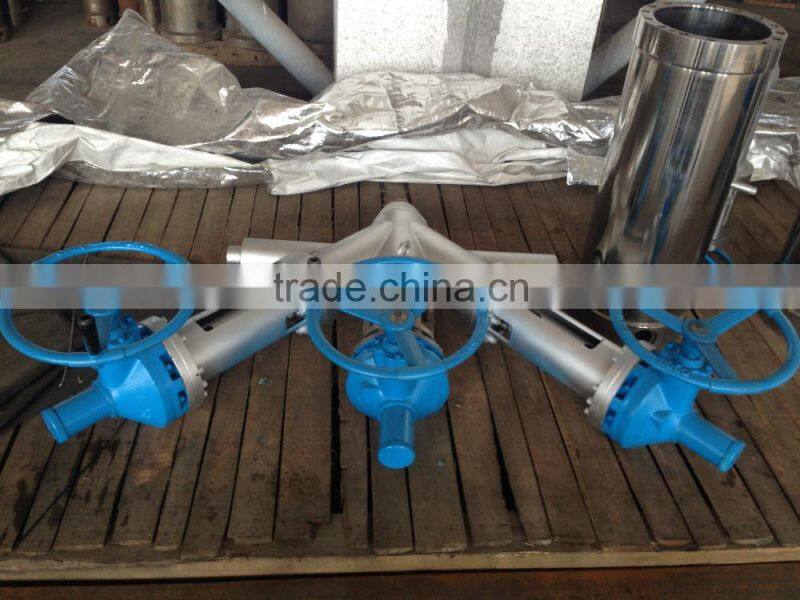

Jacket 4-way melt valve

jacket 4-way valve

Operation: Manual, Electric

Inspection and Test: API STD 598

Design STD: ANSI B 16.34

Catheter Material: 304, 316

Core Material: 304, 316, 304L, 316L

Suitable Medium: HTM

Inside Tube Suitable Medium: Lipid, Polymer, Fusion

Suitable Design Temp.: ≤330

Core Design Temp.: ≤360

Valve Size: DN50~DN400 (1inch~16inch)

Jacket Class: 0.6~2.5 Mpa 150LB

Core Class: 0.6~42 Mpa 125LB~2500LB

No dead angle; Apply to the state of high-pressure and Vaccum; Actuating; Electric, Worm gear

Design of the Flow channel : straight line designs

Connection type of fuse pipe: Flange coupling/ Butt welding

Connection type of heat medium: Flanges/  Butt welding

Hard seal of valve stem : valve stem and valve body welded with carbide alloy to ensure the  abrasion resistance of the sealed surface

7 steps to ensure the quality

1.Professional fluid analysis provides proof for the selection of diferrent types for customers.

 2.Precise finite element analysis provides guarantee for prodcut quality.

 3.Thermal state pressure test proved to be stable and safe for clents to use under work conditions.

 4.Vacuum test guarantees the reliability of valves that requires special processing.

 5.Advanced testing equipment makes sure that various parameters of valves meet the design needs.

 6.Advanced ultra-sound defect detector makes sure that each welding line can achieve comppelte defect detection .

 7.Advanced Physicochemical analysis machine makes sure that the quality of every part meets the design needs.
