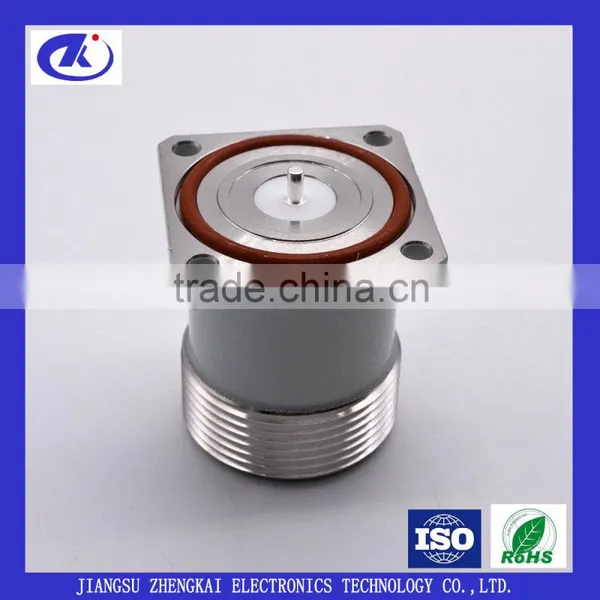

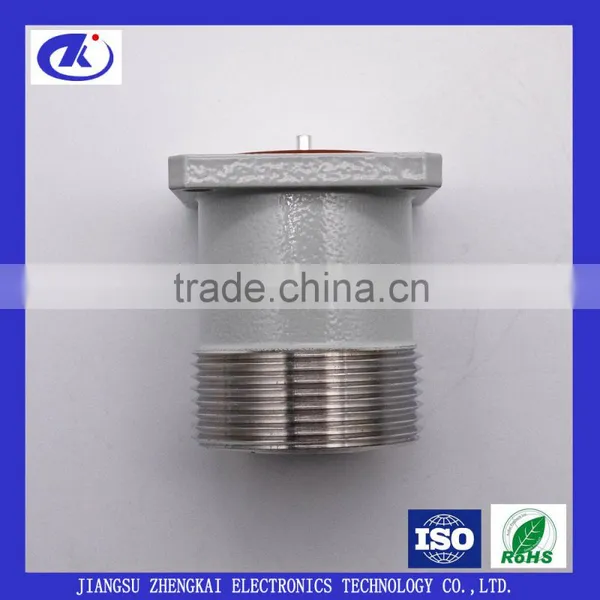

7/16DIN Female Flange Panel Connector
US$ 2.96 - 3
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
ZK PANEL connector
Model Number:
7/16-M-KFD-72 PANEL connector
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI SHENZHEN GUANGDONG NINGBO QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RF N TYPE MALE CONNECTOR FOR 1/2 CABLEUS$ 1.08 - 1.18MOQ: 1 Piece -
N RF Coaxial Plug(Male) Connector for 1/2" Coaxial CableUS$ 1.16 - 1.35MOQ: 1 Piece
-
7/16 Coaxial Female Connector for 7/8'' CableUS$ 2.42 - 2.66MOQ: 1 Piece
-
DIN Male Right Angle Connector For 1/2"Superflexible CableUS$ 2.68 - 2.95MOQ: 1 Piece
-
RF Coaxial DIN (7/16) Male Connector For1-1/4"cableUS$ 10 - 11MOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
ZK PANEL connector
Model Number
7/16-M-KFD-72 PANEL connector
Type
DIN
Application
RF
Gender
Female
Product Description
Interface
| According to | IEC60169-4 |
Electrical
| 1 | Characteristic Impedance | 50ohm |
| 2 | Frequency Range | DC-7.5GHz |
| 3 | VSWR | 1.15 |
| 4 | Dielectric withstanding voltage | 4000RMS,50Hz |
| 5 | Dielectric Resistance | ≥10000MΩ |
| 6 | Contact Resistance | Outer Contact≤0.5mΩ ;Center Contact≤1.0mΩ |
| 7 | Working Voltage | 2500V,50Hz |
| 8 | Insertion Loss (3G) | ≤0.07*(GHz)dB |
| 9 | PIM3 | ≥160dBc |
Mechanical
| 1 | Durability | Mating cycles ≥500 |
Material and plating
|
Description |
Material | Plating |
| 1 | Body | Brass | Tri-alloy |
| 2 | Insulator | PTFE | – |
| 3 | Center conductor | Phosphor bronze | Ag |
| 4 | Other | Brass | Ni |
Environmental
| 1 | Temperature Range | -40℃~+85℃ |
1.CNC machines ,advanced test equipment
2.All products are suit for ROHS.
3.ISO14001 certificate,ISO9001 certificate
Metal Workshop
Assembly Workshop
Assembly workshop and professional team;
Test Area
Quality: We use the best quality components to ensure the standard of our
product range is of the highest caliber
All products we sold out are strictly selected and tested by our QC department
Packing Area
Certifications
