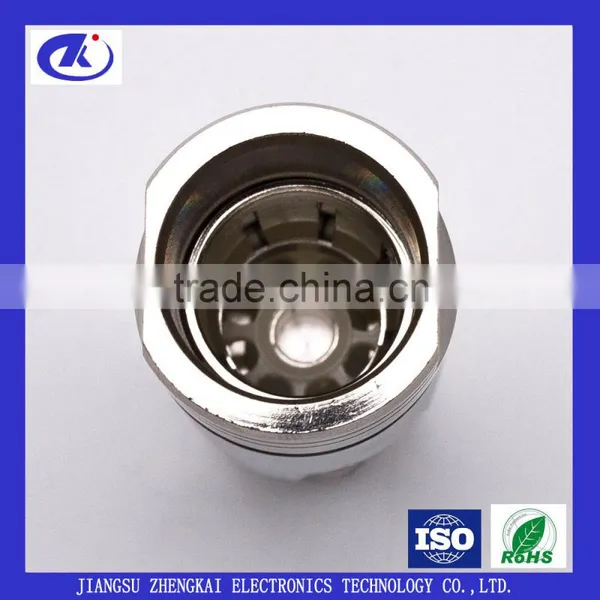

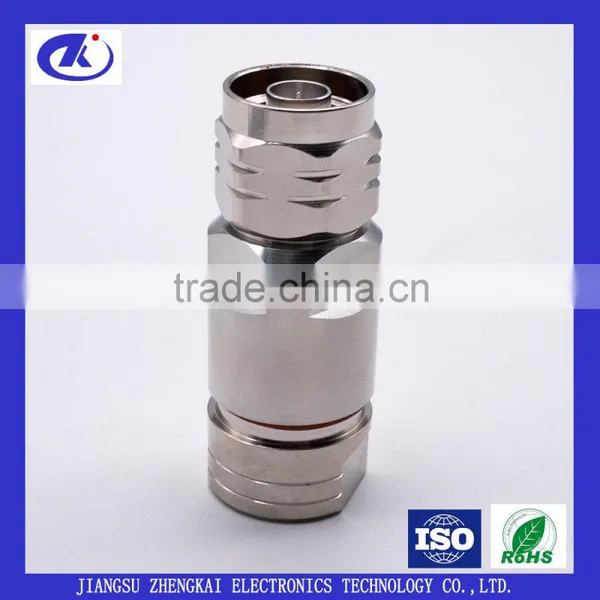

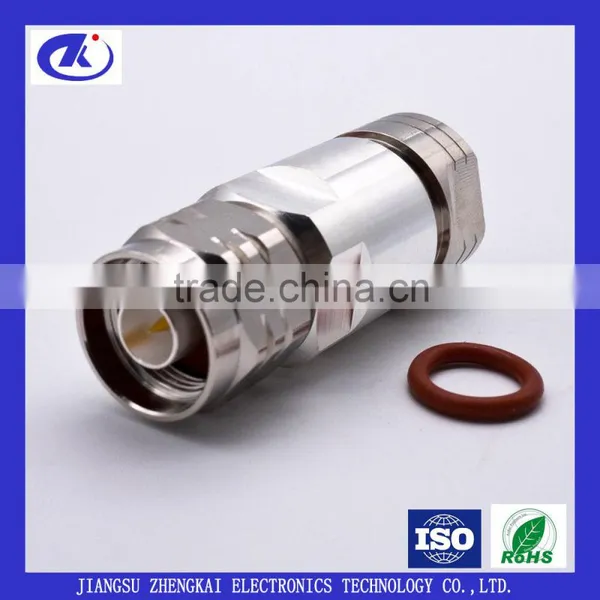

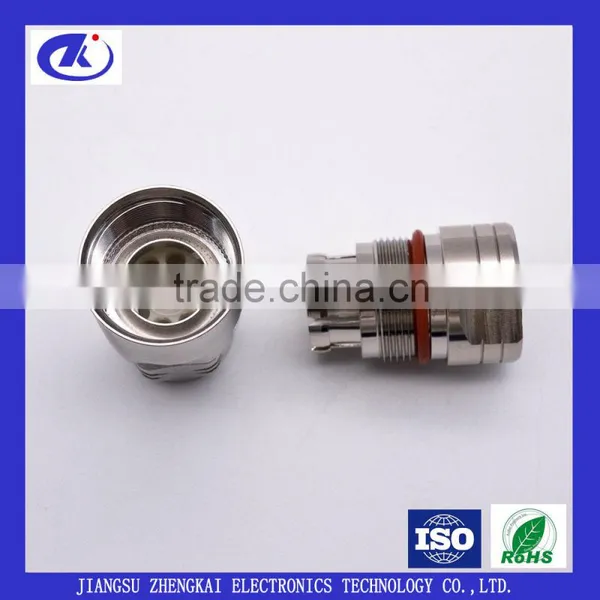

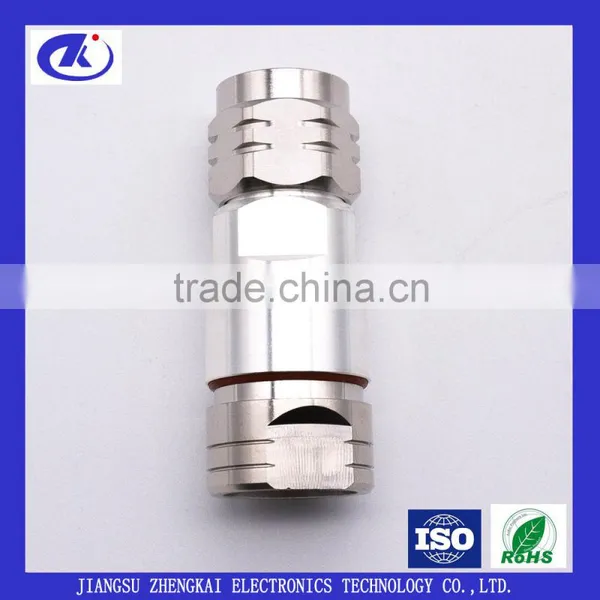

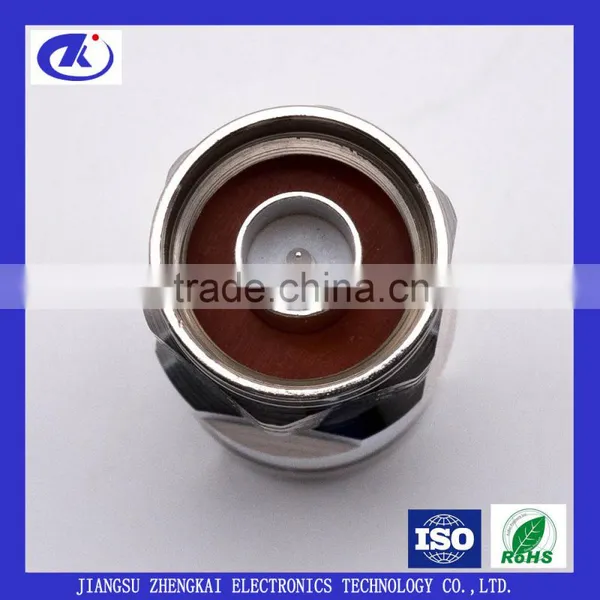

Help CenterN RF Coaxial Plug(Male) Connector for 1/2" Coaxial Cable
Related Products
-
7/16 Coaxial Female Connector for 7/8'' CableUS$ 2.42 - 2.66MOQ: 1 Piece -
DIN Male Right Angle Connector For 1/2"Superflexible CableUS$ 2.68 - 2.95MOQ: 1 Piece
-
RF Coaxial DIN (7/16) Male Connector For1-1/4"cableUS$ 10 - 11MOQ: 1 Piece
-
RF Coaxial TNC Male Connector LMR400 CableUS$ 0.95 - 1.05MOQ: 1 Piece
-
RF DIN (7/16) Female Connector for 1-1/4"cableUS$ 9 - 9.9MOQ: 1 Piece
Electrical Requirements | ||||
Impedance |
50Ω/75Ω |
|||
Frequency |
DC-11GHz |
|||
Withstand Voltage(at Sea Level) |
≤2500V rms ,50 Hz |
|||
Working Voltage(at Sea Level) |
≤1000V rms ,50 Hz |
|||
Insulation Resistance |
≥5000MΩ |
|||
|
Sheltered Effectiveness |
90dB,1GHz |
|||
|
Contact Resistance |
Center Conductor |
≤1.0mΩ |
||
Outer Conductor |
≤1.0mΩ |
|||
Mechanical Requirements | ||||
Center Conductor Retention |
0.56N (standard) |
|||
Connection strength |
450N |
|||
Connection Endurance Distance |
Normal Torque |
≥0.7-1.1N.m |
||
Endurance Distance |
≥1.7N.m |
|||
Vibration |
100m/S2,10-500Hz,10gn Acceleration |
|||
Impact |
500m/ S2,1/2 sine wave,11ms,50gn Acceleration |
|||
Durability |
500sysles |
|||
Environmental Requirements | ||||
Temp.Range |
-55°C-+155°C |
|||
Salt Spray |
48h spray |
|||
Material | ||||
Body |
Brass |
|||
Plug |
Brass |
|||
Jack |
Tin Phosphorus Bronze |
|||
Crimp Tube |
Brass/Red Copper |
|||
Other Metal |
Brass |
|||
Insulator |
PTFE |
|||
Sealing Ring |
Silicone Rubber |
|||
Surface Treatment | ||||
Body |
Silver/Nickel/Ternary Alloys |
|||
Center Conductor |
Silver/Gold |
|||
Outer Conductor |
Silver/Nickel/Ternary Alloys |
|||
Other Metal |
Nickle |
|||
Applications:
1)Antennas
2) Base station
3) Broad cast
4) Cable assembly
5) Cellular
6) Components
7) Instrumentation
8) Microwave Radio
9) Mil-Aero
10) PCS
11) Radar
12) Radios
13) Satcom
14) Surge protection
15) WLAN
Note:
1) These characteristics are typical but may not apply to all connectors
2) OEM and ODM are available
Assembly workshop and professional team;
Quality: We use the best quality components to ensure the standard of our
