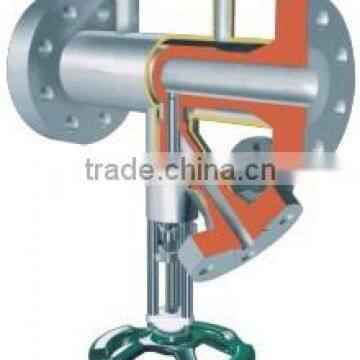

Jacketed Sampling/discharge valve
Jacketed sampling/discharge valves can directly conduct sampling and discharge of process fluid on production lines.they can be applied in high pressre and even high vacuum system.the design of the top of the valves stem completely fits the shape of the pipeline inwall.which makes sure that valve doesn't creat anyobstacles to the flow of process fluid.the non-flange connection of valve body and main pipeline can prevents polymers form freezing inside the valve boday.vertical or horizontal .both can carry out complete discharge to process cess flid can flow steadily and freely.
Advantages:
(1). Jacketed Y type stop valve is used to cut off process fluid.they can replace ball valves and plug valves in high temperature.high pressure(or vacuum)polyester process system that requires straight-flow channel and strict shutoff control.
(2). When the valve is shut off, the feeding mouth of plunger matches up with the internal wall of pipeline and provides no disturbance to the meld flow inside the pipeline.
(3). Exquisite workmanship
(4). Widely applicable
Rematks: Special size, material, directing of the medium according to customers requirement
Operation: Manual, Electric
Inspection and Test: API STD 598
Design STD: ANSI B 16.34
Catheter Material: 304,316
Core Material: 304,316,304L,316L
Catheter Suitable Medium: HTM
Inside Tube Suitable Medium: Lipid, Polymer, Fusion
Suitable Design Temp.: 330
Core Design Temp.: ≤360
Valve Size: DN50~DN400 (2~16)
Jacket Class: 0.6~2.5 Mpa 150LB
Core Class: 0.6~42 Mpa 125LB~2500LB
No dead angle; Apply to the state of high-pressure and Vaccum; Actuating; Electric, Worm gear
Design of the Flow channel : straight line designs
Connection type of fuse pipe: Flange coupling/ Butt welding
Connection type of heat medium: Flanges/ Butt welding
Hard seal of valve stem : valve stem and valve body welded with carbide alloy to ensure the abrasion resistance of the sealed surface
High-Tech and Science results certificates
Iso 9001 international quality certificate
Patents (we have 20 patents which are authorized by STATE INTELLECTUAL PROPERTY OFFICE OF THE P.R.C)
