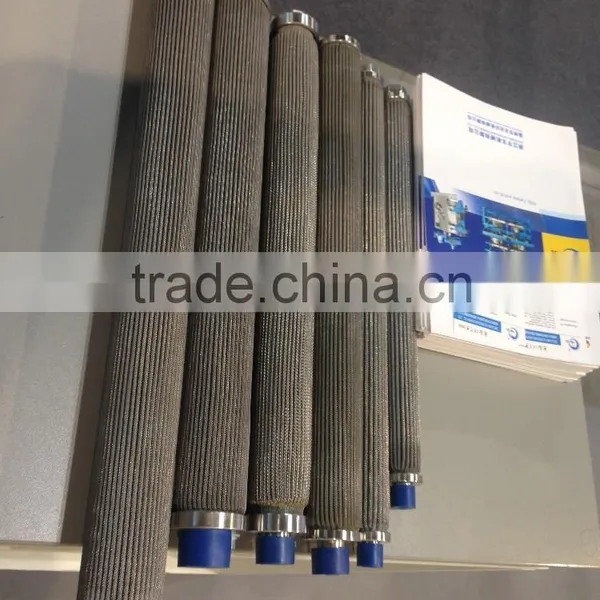

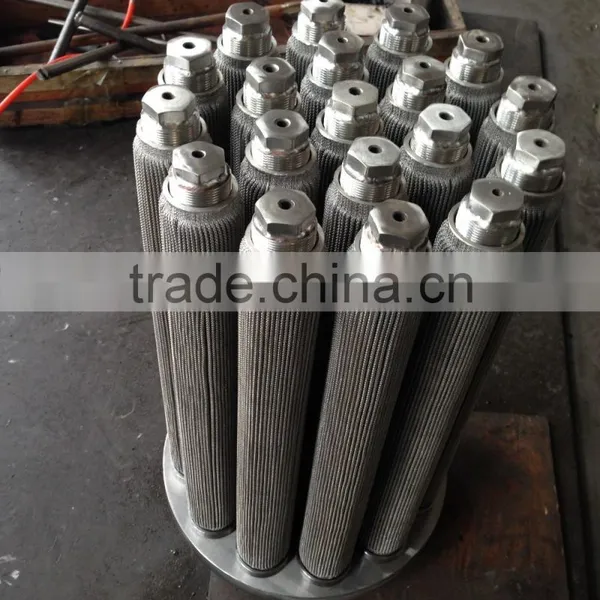

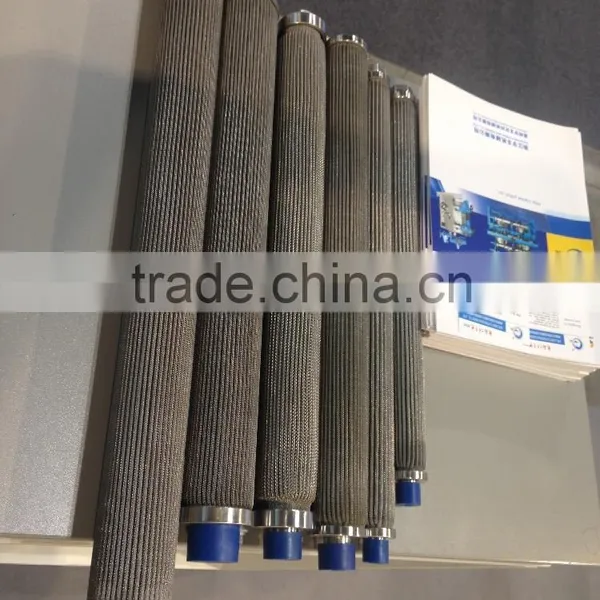

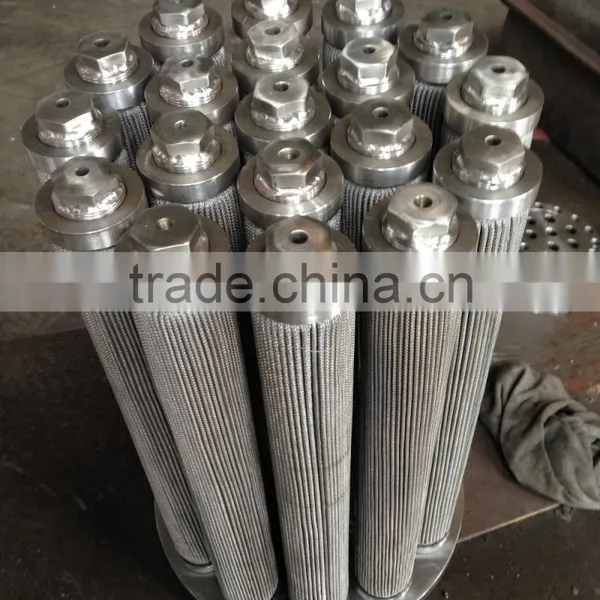

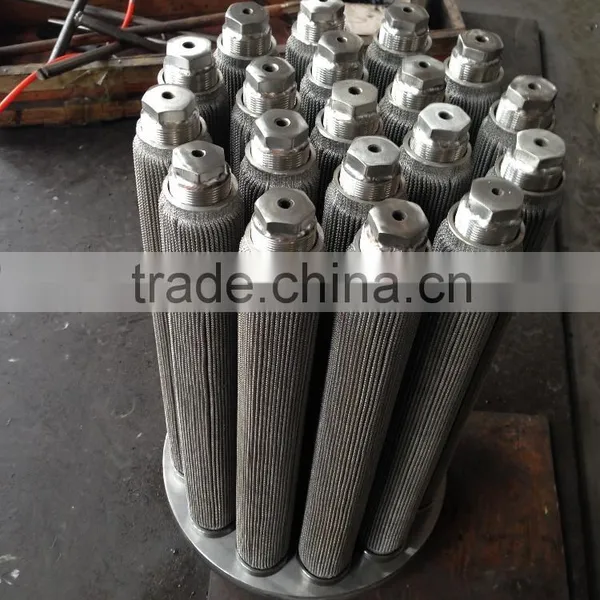

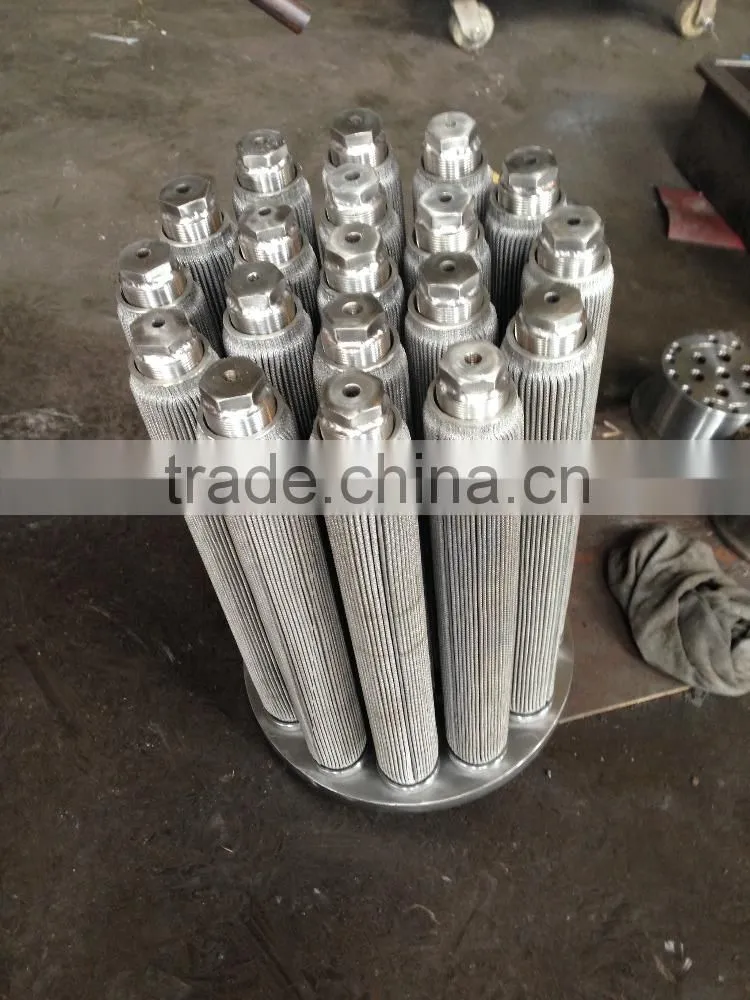

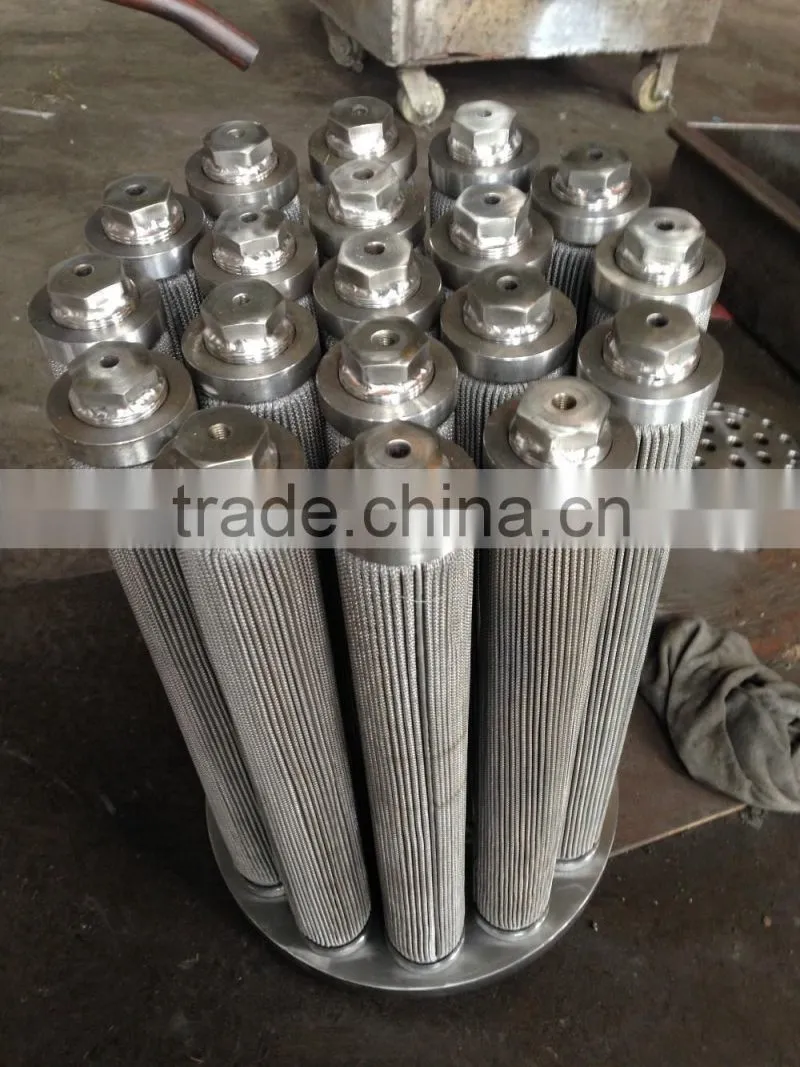

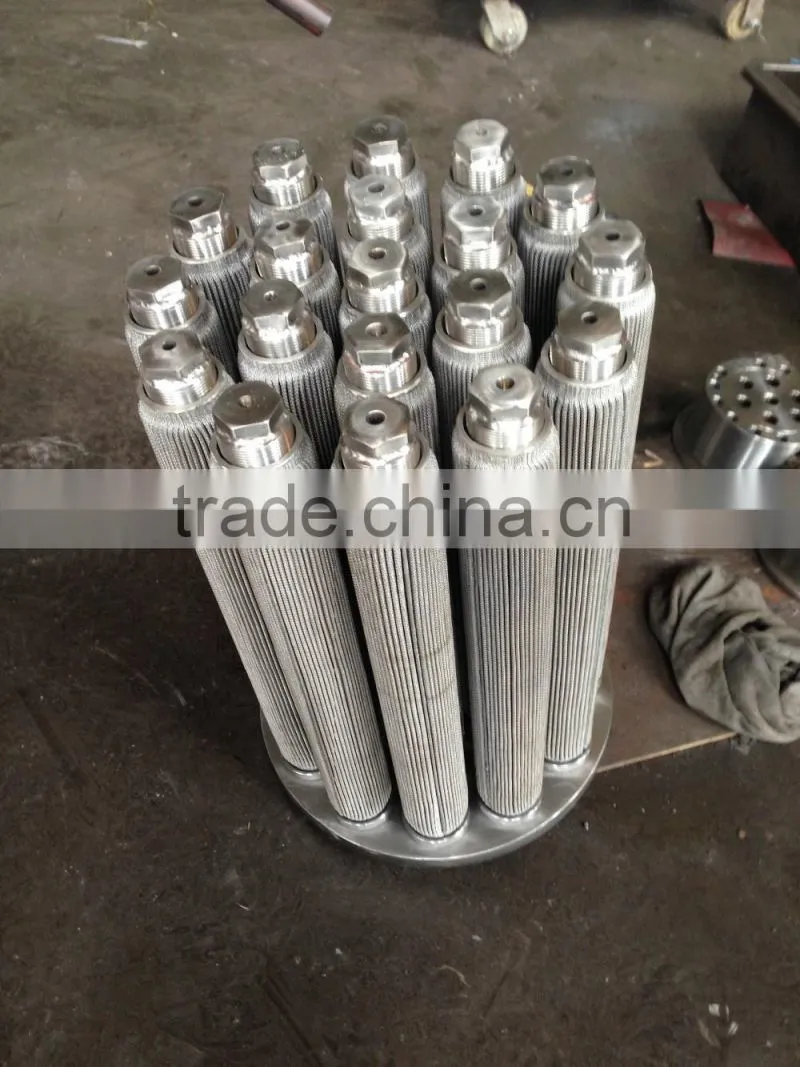

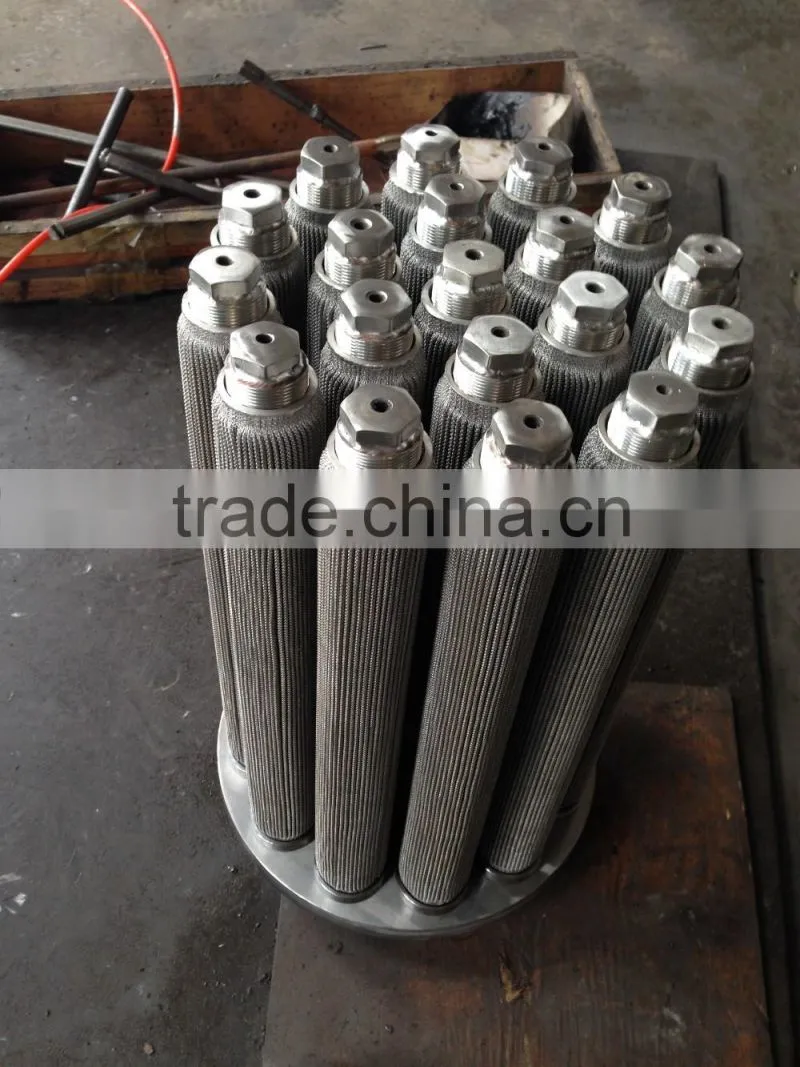

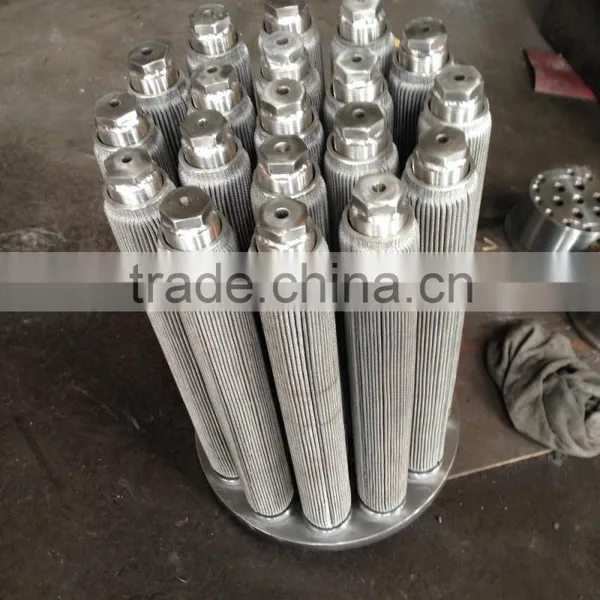

Filter Candles/Filter Elements
Filter material: import metal fiber sintered felt, domestic metal fiber sintered felt, 304 Microgroove web, 304 Square hole webs.
Typical Applications:
suitable for extreme operating environments
steam filtration
pharmaceuticals:prefiltration and decarbonate filtration
Food&Beverages:viscous liquid with high temperature
Fine Chemical:strong acid and alkaline filtration
water.filtrate the Ozone containing water
Operation conditions
| Cartridge code | Max temperature | Max differential pressure |
| TI | 220℃(428F) | 6.0Bar(87psi) |
| STS | 300℃(572F) | 6.0Bar(87psi) |
| STP | 300(572F) | 6.0Bar(87psi) |
PH value compatibility:1-14
Suitable for steam and hot water sanitisation.
Mechanical Strength
Metal structure and sintered at high temperature.
High temperature and Pressure Resistant
Cartridges can work under extreme high temperature and pressure conditions.
Wild Chemical Compatibility
cartridges can resist to strong acid.alkaline and Ozone Oxidation
Long life
Cartridges can be backwashable and cleaned by chemical solvent.hot water.steam
Materials
Filter material: Titanium powder sintered
SUS316 powder sintered
SUS316 mesh pleated
Cartridge demensions(Nominal)
outer diameter:60mm/80mm
length:10''-250mm
length:20''-50mm.30''-750mm.40-1000mm
(length is based on cut ends)
Nominal Micron
TI:0.45um.1um.5um.10um.20um.50um.
STS:1um.5um.10um.20um.50um.
STP:1um. 5um.10um.20um.50um.
Applications: the field of chemical fiber, petroleum chemical and all the related chemical industry.
It is of pleated structure, able to bear huge amount of dirt, can be cleaned repeatedly, firm and not easy to be deformed, high-temperature resistance.
The below is our main specification, you can choose your needs from it.
Main Specification:
φ |
L |
M2 |
M1 |
Pattern |
Filter Fineness |
Operating Pressure |
Operating Temperature |
35 |
217 |
M20×1.5 |
M5 |
Welded |
3~100 |
Max 30Mpa |
≤310 |
35 |
425 |
M20×1.5/2 |
M5 |
Welded |
|||
35 |
485 |
M20×1.5/2 |
M5 |
Welded/ Assembled |
|||
50 |
515 |
M27×2 |
M6 |
Welded/ Assembled |
|||
50 |
515 |
M27×3 |
M6 |
Welded/ Assembled |
|||
58 |
515 |
M33×2 |
M8 |
Welded/ Assembled |
|||
58 |
515 |
M36×3 |
M8 |
Welded/ Assembled |
|||
60 |
1215 |
M36×3 |
M8 |
Welded/ Assembled |
High-Tech and Science results certificates
Iso 9001 international quality certificate
Patents (we have 20 patents which are authorized by STATE INTELLECTUAL PROPERTY OFFICE OF THE P.R.C)
Now we start a representative office in Xiaoshan.Hangzhou.we warmly welcome your visit in Hangzhou and Wenzhou!
Exhibition
