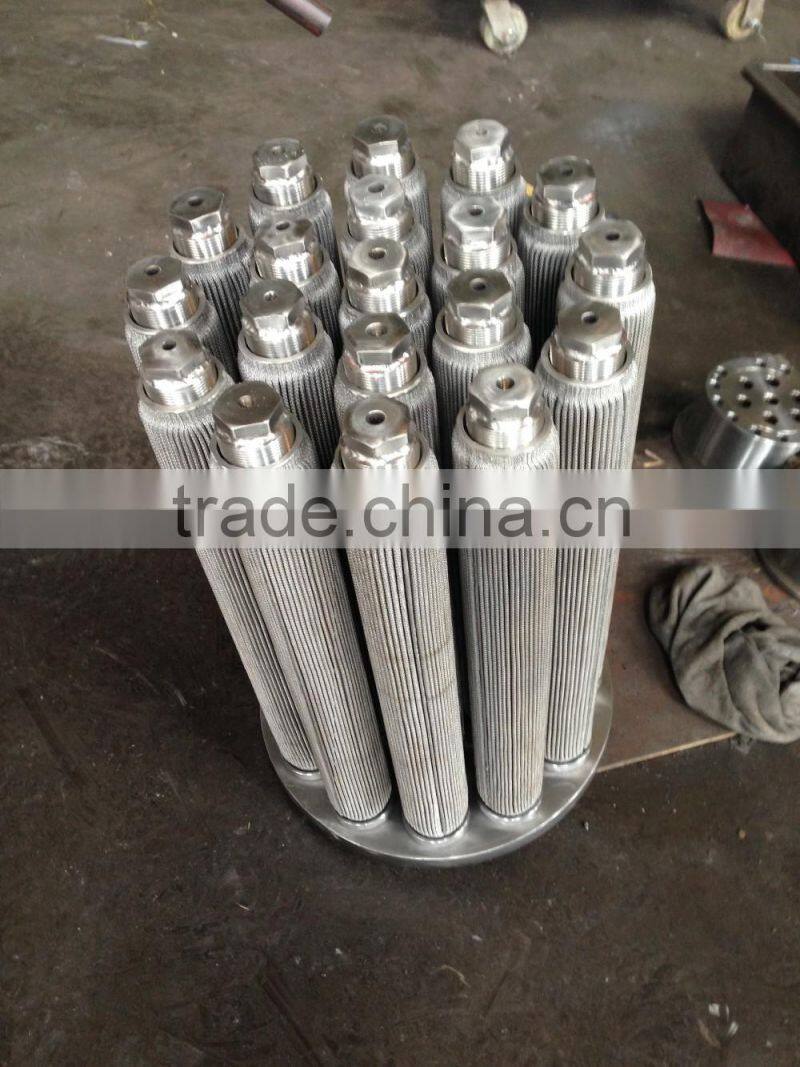

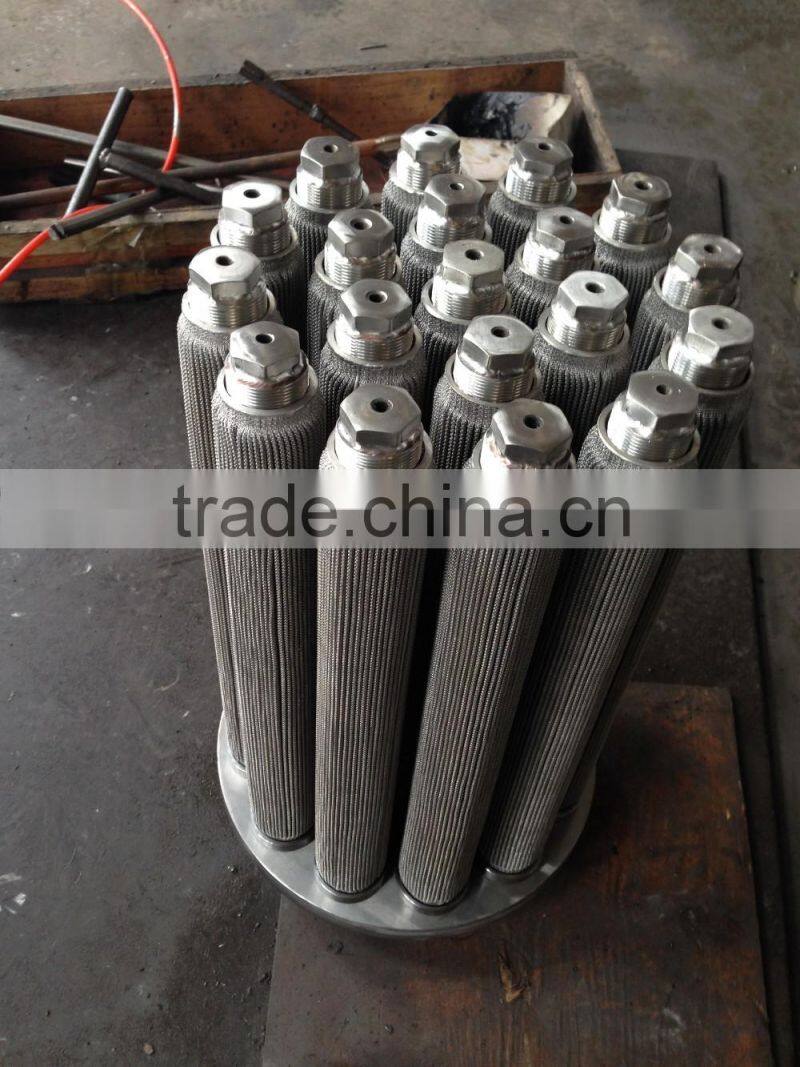

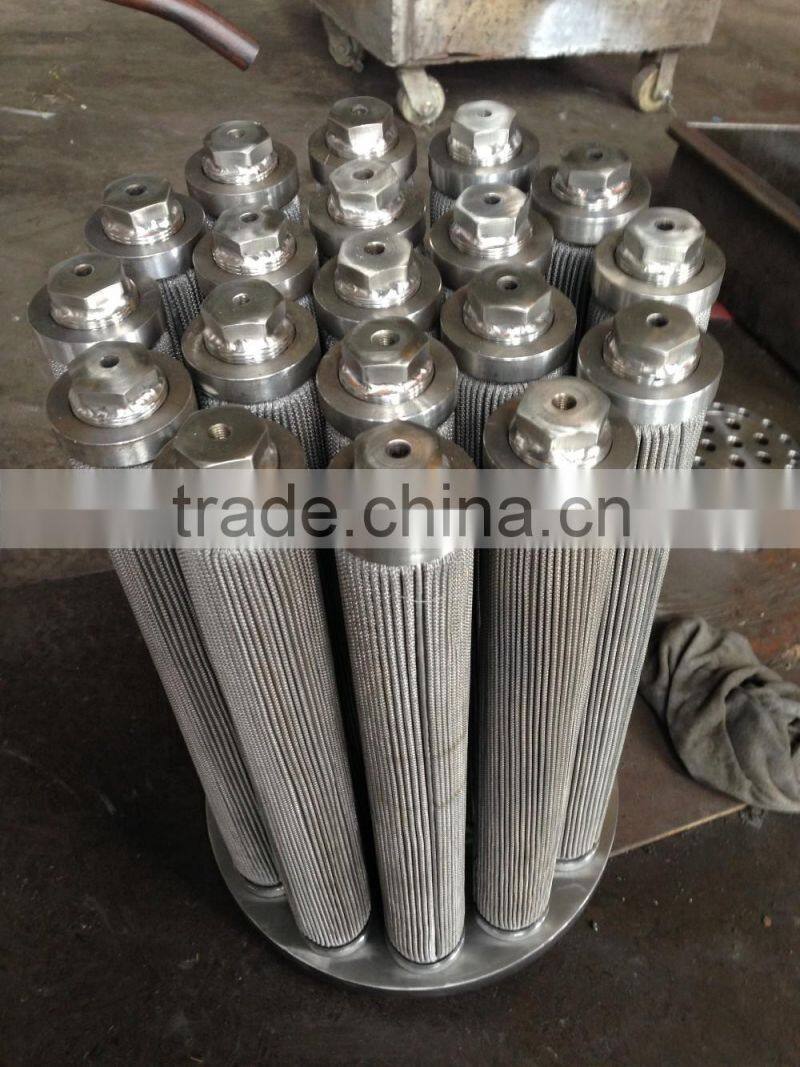

Metal Pleated Filter Element,Stainless Steel Filter cartridge.Filter Candle
Filter material: import metal fiber sintered felt, domestic metal fiber sintered felt, 304 Microgroove web, 304 Square hole webs.
Applications: the field of chemical fiber, petroleum chemical and all the related chemical industry.
It is of pleated structure, able to bear huge amount of dirt, can be cleaned repeatedly, firm and not easy to be deformed, high-temperature resistance.
The below is our main specification, you can choose your needs from it.
Main Specification:
φ |
L |
M2 |
M1 |
Pattern |
Filter Fineness |
Operating Pressure |
Operating Temperature |
35 |
217 |
M20×1.5 |
M5 |
Welded |
3~100um |
Max 30Mpa |
≤310 |
35 |
425 |
M20×1.5/2 |
M5 |
Welded |
|||
35 |
485 |
M20×1.5/2 |
M5 |
Welded/ Assembled |
|||
50 |
515 |
M27×2 |
M6 |
Welded/ Assembled |
|||
50 |
515 |
M27×3 |
M6 |
Welded/ Assembled |
|||
58 |
515 |
M33×2 |
M8 |
Welded/ Assembled |
|||
58 |
515 |
M36×3 |
M8 |
Welded/ Assembled |
|||
60 |
1215 |
M36×3 |
M8 |
Welded/ Assembled |
High-Tech and Science results certificates
Iso 9001 international quality certificate
Patents (we have 20 patents which are authorized by STATE INTELLECTUAL PROPERTY OFFICE OF THE P.R.C)
Now we start a representative office in Xiaoshan.Hangzhou.we warmly welcome your visit in Hangzhou and Wenzhou!
