CPF PF2T Melt Filter
1. Application
Polyester POY, PP, Non-Woven, PA (PA6, PA66), Nylon, all kinds of Composite Yarn. Product Segmentation is based on the different technical and engineering requirements of POY / PA, POY/ Non-Woven, Pure Chip Spinning / PET Bottle Chip Spinning (Recycled PET Chip Spinning).
2. Technical Advantages
1) Heating Effects: Reasonable heating structure design ensures steady, fast heating, exceptional heat-preservation effect and short heating time.
2) Pre-Heating System: No pre-heating is required for filter housing. It can reach the working temperature within 5-8 hours after being installed inside the filter machine.
3) Operation System: Filter housing can be lifted up and installed up-straight inside the machine directly.

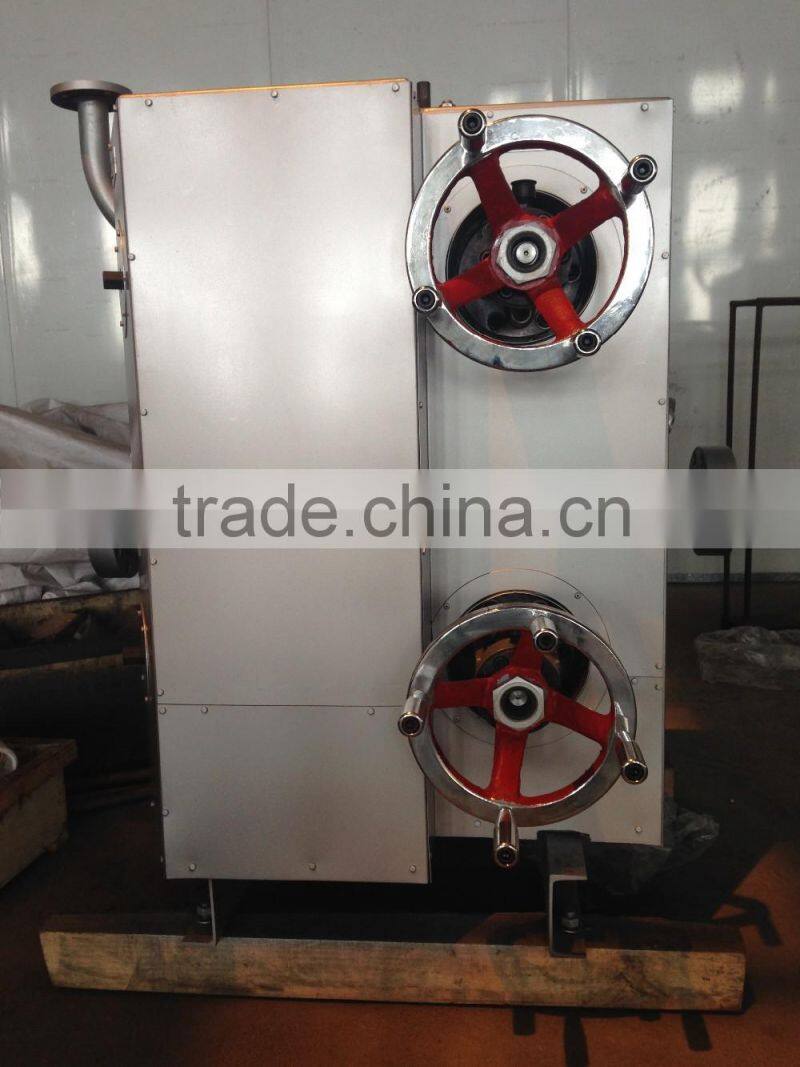

4) Patented Key Product Structure: 2-Wheel 3-Way Switch Valve ensures non-stop switching between two cylinders. The filtering area can be multiplied by openning up both two cylinders by using the switch valve.
3. Main Technical Parameters
Max. Working Pressure: 20Mpa
Max. Working Temperature: 310°C
Allowed Jacket Pressure: 0.25Mpa
Max. Pressure Difference before and after Filtering: 6Mpa
Single Cylinder Filter Area: 0.5~19m2
Filtration Rate: 5um~60um
Melt Tube DN: φ20~80mm
Melt Tube Connection: Welded in filter or Welded by Flange
HTM Medium: Biphenyl or HTM
Heating Method: HTM Recirculation Heating or Electrical Heating
4. Specifications:
| Series |
Filtering Area(m2) |
Filter Element |
Applicable Screw(mm) |
Sealing Type |
| PF2-1.05B | 1.05×2 | φ35×425×7 | φ80--90 |
Enforced or Self-Sealed |
| PF2-1.26B | 1.26×2 | φ35×485×7 | φ95--100 |
Enforced or Self-Sealed |
| PF2-1.80B | 1.80×2 | φ35×425×12 | φ110 |
Enforced or Self-Sealed |
| PF2-2.50B | 2.5×2 | φ50×500×7 | φ80--90 | Self-Sealed |
| PF2-3.5B | 3.5×2 | φ58×500×7 | φ100 | Self-Sealed |
| PF2-4.5B | 4.5×2 | φ50×500×13 | φ110 | Self-Sealed |
| PF2-5.5B | 5.5×2 | φ50×500×15 | φ120 | Self-Sealed |
| PF2-6.5B | 6.5×2 | φ58×500×13 | φ135 | Self-Sealed |
| PF2-7.0B | 7.0×2 | φ50×500×19 | φ150 | Self-Sealed |
| PF2-7.5B | 7.5×2 | φ58×500×15 | φ150 | Self-Sealed |
| PF2-9.5B | 9.5×2 | φ58×500×19 | φ120--150 | Self-Sealed |
| PF2-12B | 12×2 | φ50×500×32 | φ160--170 | Self-Sealed |
| PF2-15B | 15×2 | φ50×600×37 | φ180--200 | Self-Sealed |
High-Tech and Science results certificates
Iso 9001 international quality certificate
Patents (we have 20 patents which are authorized by STATE INTELLECTUAL PROPERTY OFFICE OF THE P.R.C)
Now we start a representative office in Xiaoshan.Hangzhou.we warmly welcome your visit in Hangzhou and Wenzhou!
