rf Cable Jumper, 1/2" Superflex Cable With 7/16 DIN Male RA to DIN Male Connector, Cable Assembly

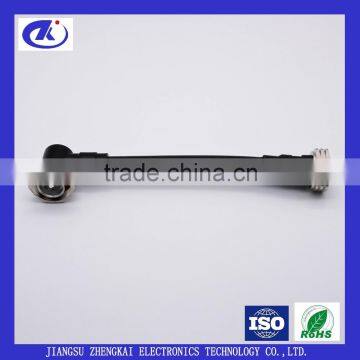

rf Cable Jumper, 1/2" Superflex Cable With 7/16 DIN Male RA to DIN Male Connector, Cable Assembly photo-1

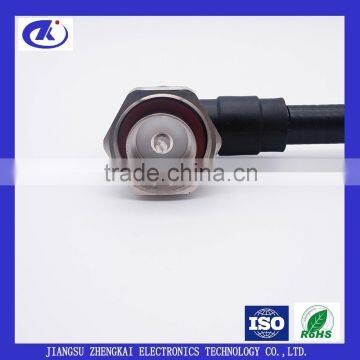

rf Cable Jumper, 1/2" Superflex Cable With 7/16 DIN Male RA to DIN Male Connector, Cable Assembly photo-2

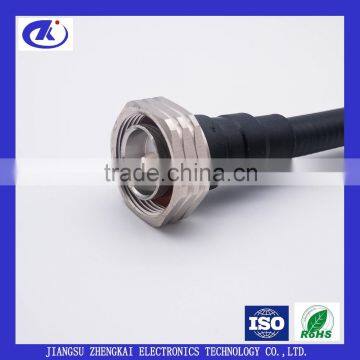

rf Cable Jumper, 1/2" Superflex Cable With 7/16 DIN Male RA to DIN Male Connector, Cable Assembly photo-3
US$ 3.58 - 4.18 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
ZK Jumper Cable
Model Number:
7/16-H-JW1/2S-2-7/16-H-J1/2S-9-0.2m
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai; Shenzhen; Guangzhou; Tianjin; Qingdao; Ningbo;
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name ZK Jumper Cable
Model Number 7/16-H-JW1/2S-2-7/16-H-J1/2S-9-0.2m
Conductor Material Copper
Insulation Material PTFE
Jacket PE
Number of Conductors 1
Application telecommunications

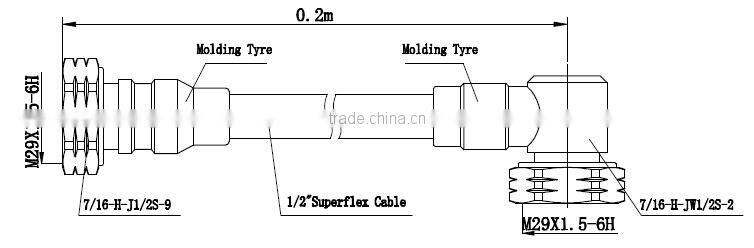

rf cable jumper, 1/2" superflex cable with 7/16 DIN Male RA to DIN Male connector, cable assembly

Cable Descriptions

Item No.: 7/16-H-JW1/2S-2-7/16-H-J1/2S-9-0.2m

Interface

According to 7/16: IEC 60169-4

Electrial

Characteristic Impedance     50ohm
2      Frequency Range DC-3GHz
3 VSWR 1.30
4 Dielectric withstanding voltage ≥2500V
5 Dielectric Resistance ≥5000MΩ
6 Insert Lose ≤ 0.24dB

Mechanical

1 Durability       Mating cycles ≥500

Material and plating



Description

Material Plating
1   Body Brass CuSnZn
2 Insulator PTFE
3 Center conductor Brass Ag
4 Other Brass Ni

Environmental

1 Temperature Range -40℃~+85℃

1.CNC machines ,advanced test equipment
2.All products are suit for ROHS.
3.ISO14001 certificate,ISO9001 certificate





Metal Workshop

rf cable jumper, 1/2" superflex cable with 7/16 DIN Male RA to DIN Male connector, cable assembly



Assembly Workshop

rf cable jumper, 1/2" superflex cable with 7/16 DIN Male RA to DIN Male connector, cable assembly

Assembly workshop and professional team;





Cable Assembly PFD

rf cable jumper, 1/2" superflex cable with 7/16 DIN Male RA to DIN Male connector, cable assembly

Checking this picture about all our process of cable assembly, you'll understand how  great the cable sets are!



Test Area

rf cable jumper, 1/2" superflex cable with 7/16 DIN Male RA to DIN Male connector, cable assembly

Quality: We use the best quality components to  ensure the standard of our

              product range is of the highest caliber
              All products we sold out are strictly selected and tested by our QC department

Packaging Details

rf cable jumper, 1/2" superflex cable with 7/16 DIN Male RA to DIN Male connector, cable assembly

The first step: transparent bags for cable assemblies;

The second step: Cartons with hard paper;

The third step: Wood pallets;

The fourth step: outer water-proof plastic films.



Certifications

rf cable jumper, 1/2" superflex cable with 7/16 DIN Male RA to DIN Male connector, cable assembly
