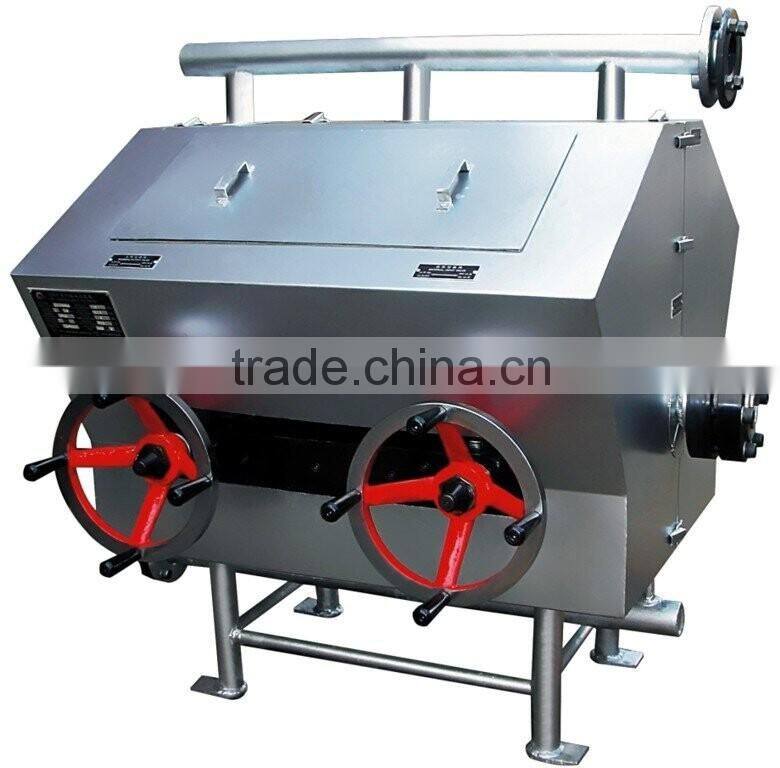

CPF-HT-C Horizontal Melt Filter( continous change-over)
It is used in the chemical fiber field. There are many chemical fiber factories all over China use our filter to select the granule of fixed filter rating and filter impurities. According to your requirement, we can supply you the exact products.
It is a nonstandard article. Hence, further understanding will lead further cooperation. If you have further interest, please let us know.
1. Advantages:
(1). High filter precision
(2). Widely applicable
(3). High efficiency
(4). Warranty 1 year
2. Heating Method: heat transfer oil cycling, or biphenyl cycling
3.Application of CPF Series Products: POY.FDY.Nylong(PA6.PA66.PA11).compound fiber of nylon and polyester.pp spun-bonded non woven.pp melt-blown non-woven.pp fiber.PE spinning fiber.BOPET stretch film.spinning polyurethane fibers.viscose fiber.plant fiber.etc.Due to its novel structure.it is power-effective and widely applicable.
4. Technical Parameters:
Model |
Diameter (mm) |
Filter Area (m2) |
Rated Flow (kg/h) |
Main Specification |
System Pressure |
Biphenyl Jacket Pressure |
Allowable Pressure Differentia |
Operating Temperature |
|||||
PET |
PA.PP.PE |
A |
B |
B1 |
H1 |
H2 |
|||||||
CPF-HT-0.34 |
20 |
0.34 |
21-55 |
20-50 |
720 |
750 |
650 |
User-Defined |
630 |
Max 25Mpa |
≤0.6Mpa |
Max 6Mpa |
≤310 |
CPF-HT-0.6 |
25 |
0.6 |
75-150 |
50-110 |
930 |
960 |
650 |
630 |
|||||
CPF-HT-1.05 |
30 |
1.05 |
200-300 |
150-220 |
990 |
960 |
650 |
630 |
|||||
CPF-HT-1.26 |
30 |
1.26 |
250-350 |
180-250 |
1020 |
1180 |
680 |
780 |
|||||
CPF-HT-1.8 |
40 |
1.8 |
300-420 |
220-300 |
1080 |
1180 |
680 |
780 |
|||||
CPF-HT-1.95 |
40 |
1.95 |
420-550 |
250-330 |
1090 |
1300 |
720 |
840 |
|||||
CPF-HT-2.5 |
40 |
2.5 |
480-600 |
330-420 |
1180 |
1300 |
720 |
840 |
|||||
CPF-HT-2.7 |
40 |
2.7 |
550-680 |
380-480 |
1120 |
1380 |
760 |
880 |
|||||
CPF-HT-3.5 |
50 |
3.5 |
700-900 |
490-630 |
1150 |
1460 |
800 |
920 |
|||||
CPF-HT-4.05 |
50 |
4.05 |
800-1000 |
560-700 |
1180 |
1540 |
840 |
960 |
|||||
CPF-HT-6.0 |
65 |
6.0 |
1000-1200 |
700-840 |
1210 |
1620 |
860 |
1000 |
|||||
High-Tech and Science results certificates
Iso 9001 international quality certificate
Patents (we have 20 patents which are authorized by STATE INTELLECTUAL PROPERTY OFFICE OF THE P.R.C)
Exhibition
