Home > Products > XPS Production Line > XPS Foamed Heat Preservation Board Extrusion Production Line

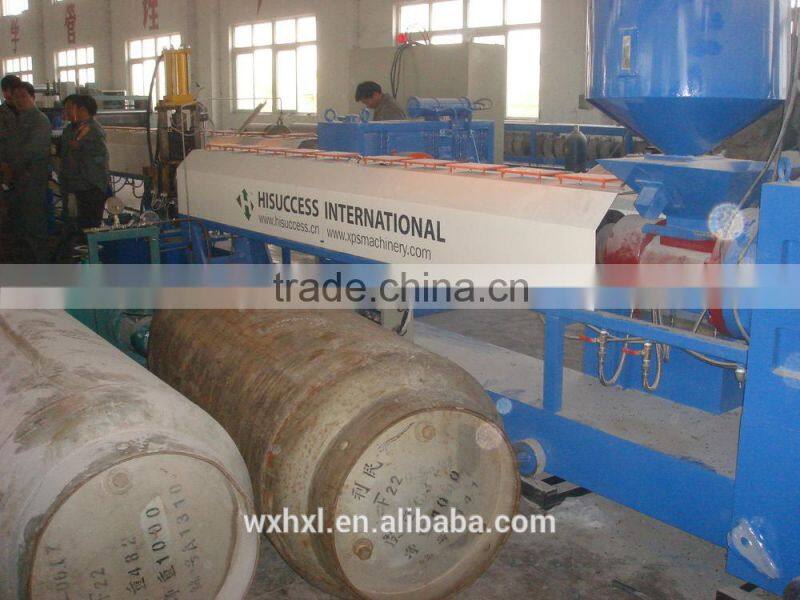

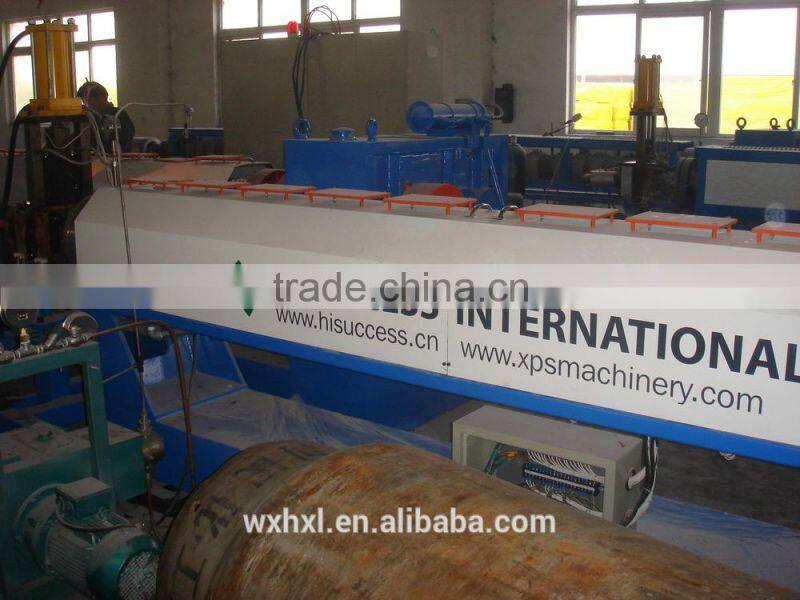

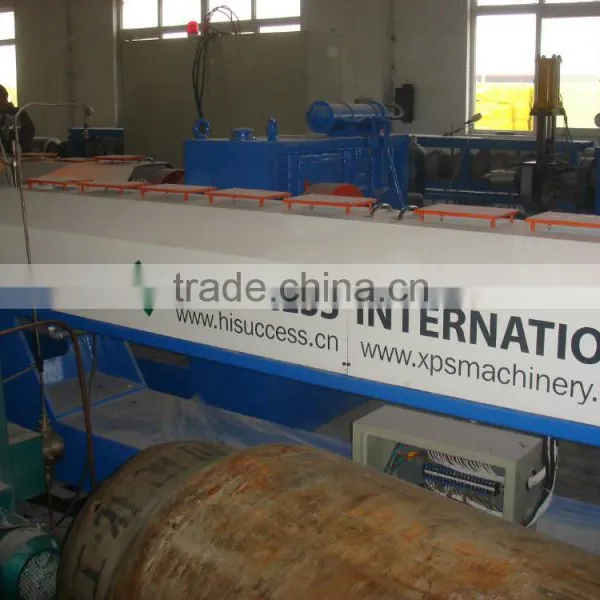

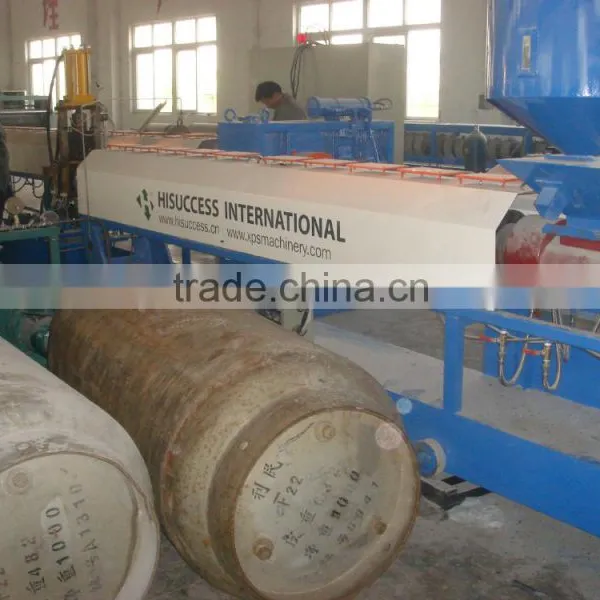

XPS Foamed Heat Preservation Board Extrusion Production Line
USD $148,000 - $208,000
/ Set
1 Set(Min.Order)
- 10 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
| Condition: | New | Application: | Plates | Plastic Processed: | Polystyrene |
| Screw Design: | Double-screw | Automatic Grade: | High | Place of Origin: | Shanghai, China |
| Brand Name: | HiSuccess International | Model Number: | HIM-X-250, HIM-X-500 | Voltage: | 380V |
| Power(W): | 200KW | Dimension(L*W*H): | 60*6*4 | Certification: | GOST |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Main Technical Parameters:
| ITEM | HIM-X-250 | HIM-X-500 | HIM-X-750 | ||||
| Extrude system | 1st Extruder | 2nd Extruder | 1st Extruder | 2nd Extruder | 1st Extruder | 2nd Extruder | |
| Screw diameters | mm | 135 | 150 | 165 | 200 | 75X2 | 200 |
| L/D Radio | L/D | 27:1 | 33:1 | 27:1 | 33:1 | 32:1 | 33:1 |
| Driving Motor Power | kw | 75 | 75 | 90 | 90 | 90 | 110 |
| Heating Power | kw | 110 | 160 | 180 | |||
| Capacity | kg/h | 250~300 | 450~500 | 700~750 | |||
| Product Width | mm | 600 (900) | 600 (900/1200) | 600 (900/1200) | |||
| Product Thickness | mm | 20~100 | 20~100 | 20~100 | |||
| Density | kg/m3 | 33~39 | 33~39 | 33~39 | |||
| Total Power | kw | 280 | 350 | 380 | |||
