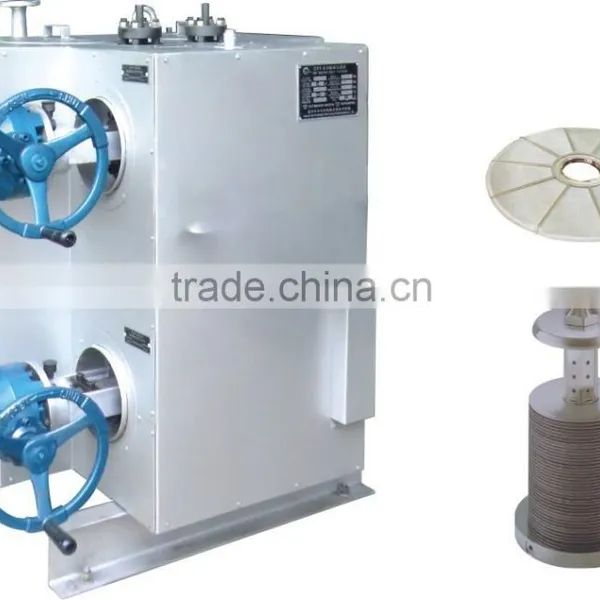

Disc continuous switching melt filter
Application:
DPF series are mainly used for filtration of melts , such as PET tensile menbrane, which have relatively high requirements for degradation of materials. In the case, the air volume in the filter is reduced to the minimum absolutely with no blind cornor , the melt ave the shortest residence time, and also discs can be clean more easily. Filter have two forms, single-cylinder type or double-cylinder continuous switching type, for users to choose from.
Heating method: either heat-conducting oil and electric heatng or oil-conducting oil circulation heating can be selected.
Technical Parameters:
Model |
Diameter (mm) |
Filter Area (m2) |
Rated Flow (kg/h) |
Heating Capacity (KW) |
Main Specification |
System Pressure |
Biphenyl Jacket Pressure |
Allowable Pressure Differentia |
Operating Temperature |
Filtering precision |
||||
H |
H1 |
H2 |
A |
L |
||||||||||
DPF-PT-0.5D |
30 |
0.5 |
120 |
10.8 |
850 |
User-Defined |
User-Defined |
925 |
1035 |
Max25Mpa |
≤0.6Mpa |
Max 4Mpa |
≤320 |
3-25um
|
DPF-PT-1.0D |
30 |
1.0 |
240 |
10.8 |
850 |
925 |
1035 |
|||||||
DPF-PT-1.5D |
40 |
1.5 |
360 |
12 |
900 |
925 |
1035 |
|||||||
DPF-PT-2.0D |
40 |
2.0 |
480 |
12 |
1000 |
1150 |
1400 |
|||||||
DPF-PT-2.5D |
40 |
2.5 |
600 |
13.8 |
1200 |
1150 |
1400 |
|||||||
DPF-PT-3.5D |
50 |
3.5 |
840 |
13.8 |
1360 |
1150 |
1400 |
|||||||
DPF-PT-4.5D |
50 |
4.5 |
1080 |
16.8 |
1410 |
1150 |
1400 |
|||||||
DPF-PT-5.5D |
50 |
5.5 |
1320 |
16.8 |
1460 |
1150 |
1400 |
|||||||
| DPF-PT-6.5D | 60 | 6.5 | 1560 | 16.8 | 1510 | 1200 | 1400 | |||||||
| DPF-PT-7.5D | 60 | 7.5 | 1800 | 16.8 | 1560 | 1200 | 1400 | |||||||
| DPF-PT-9.5D | 60 | 9.5 | 2000 | 16.8 | 1620 | 1200 | 1400 | |||||||
