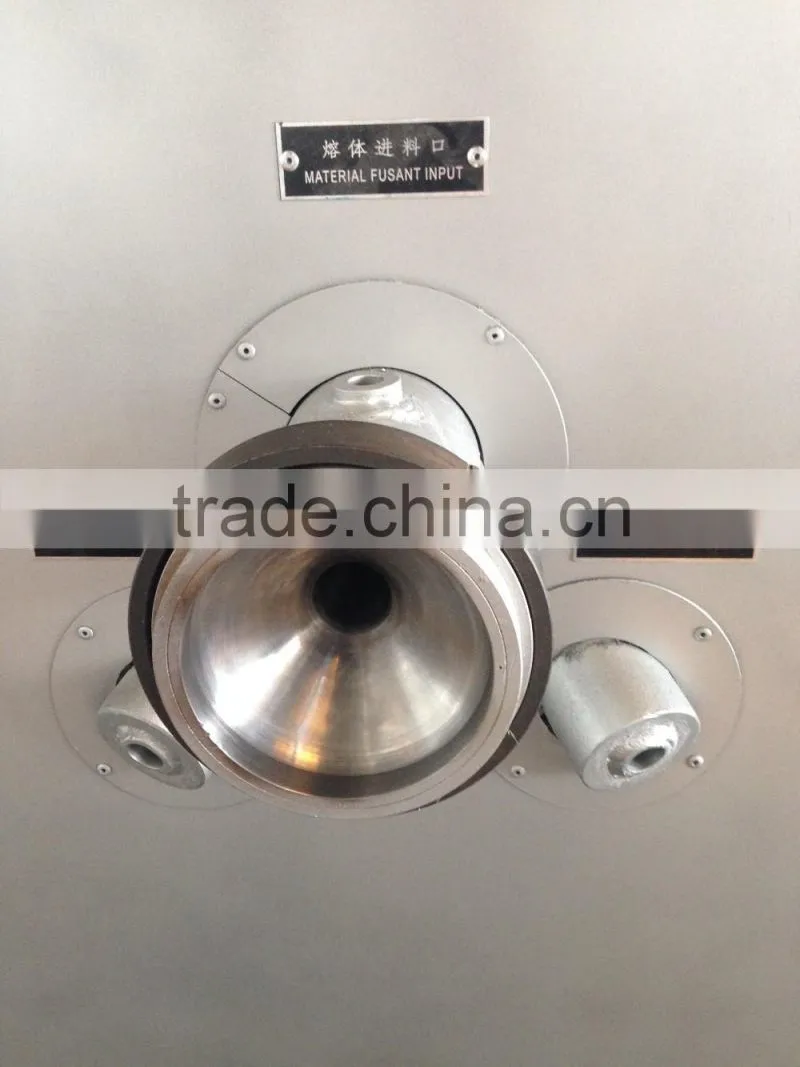

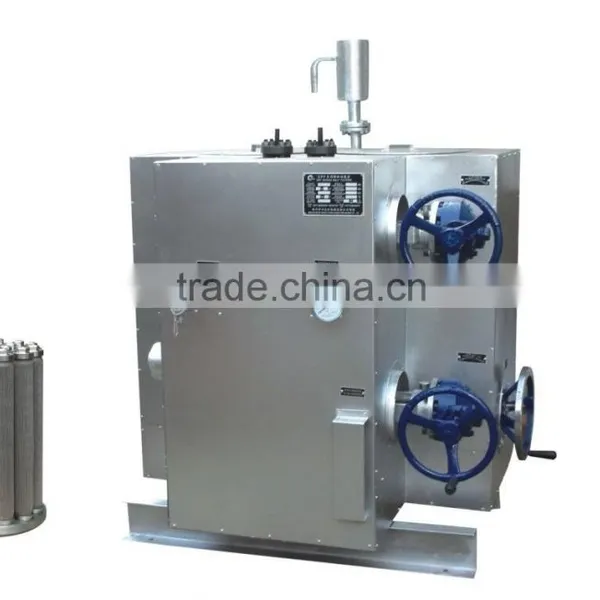

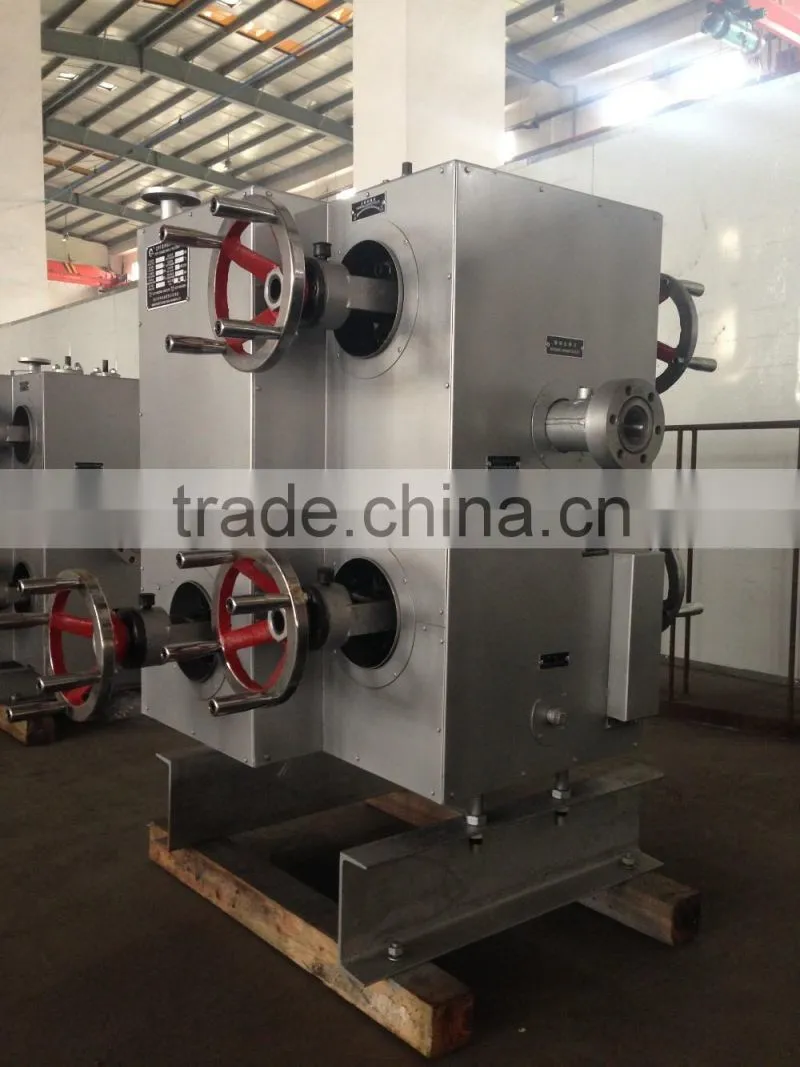

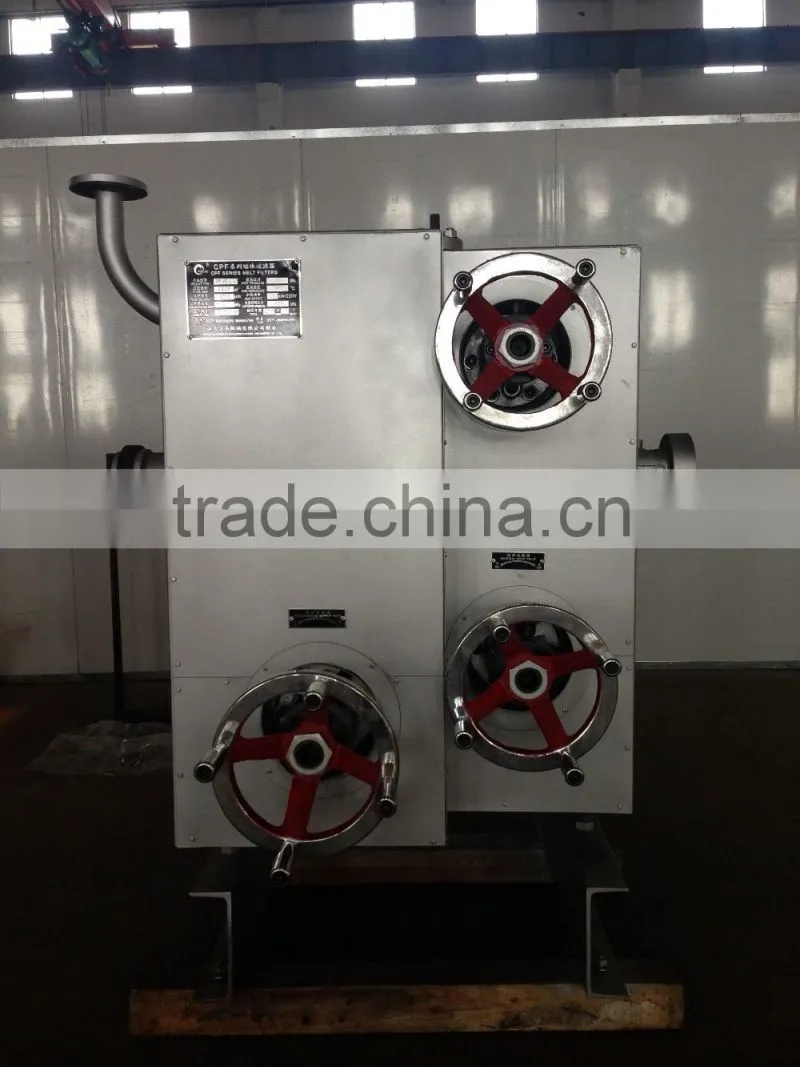

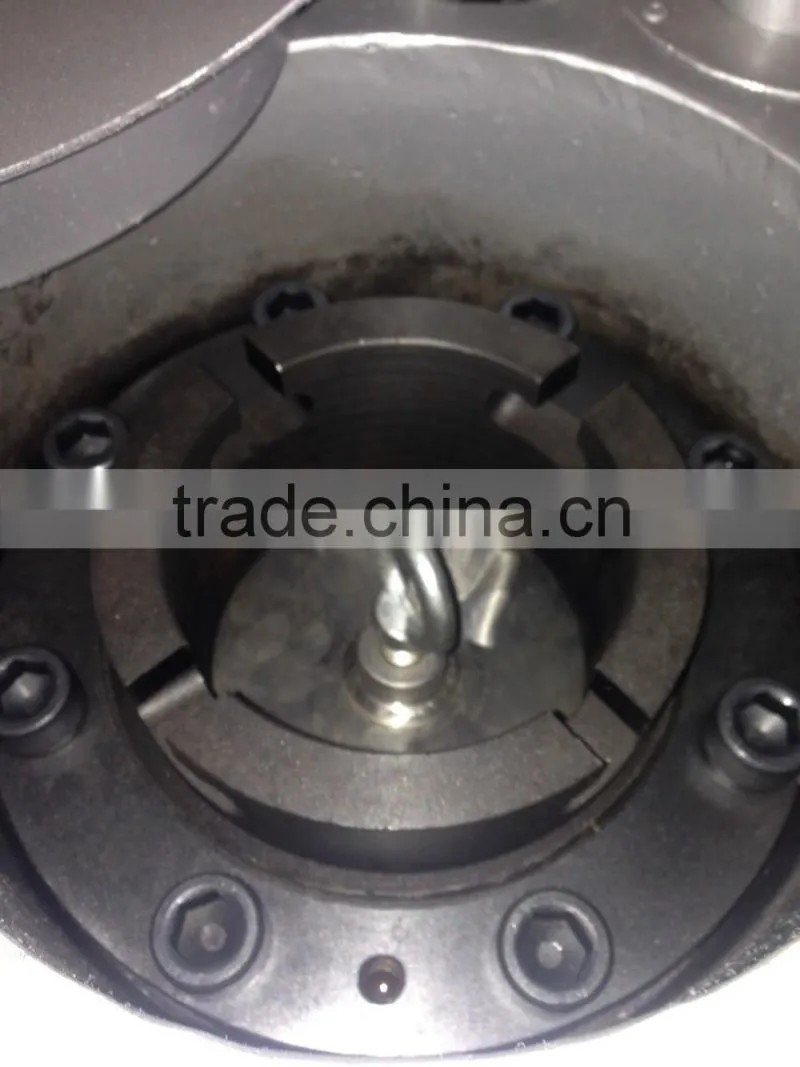

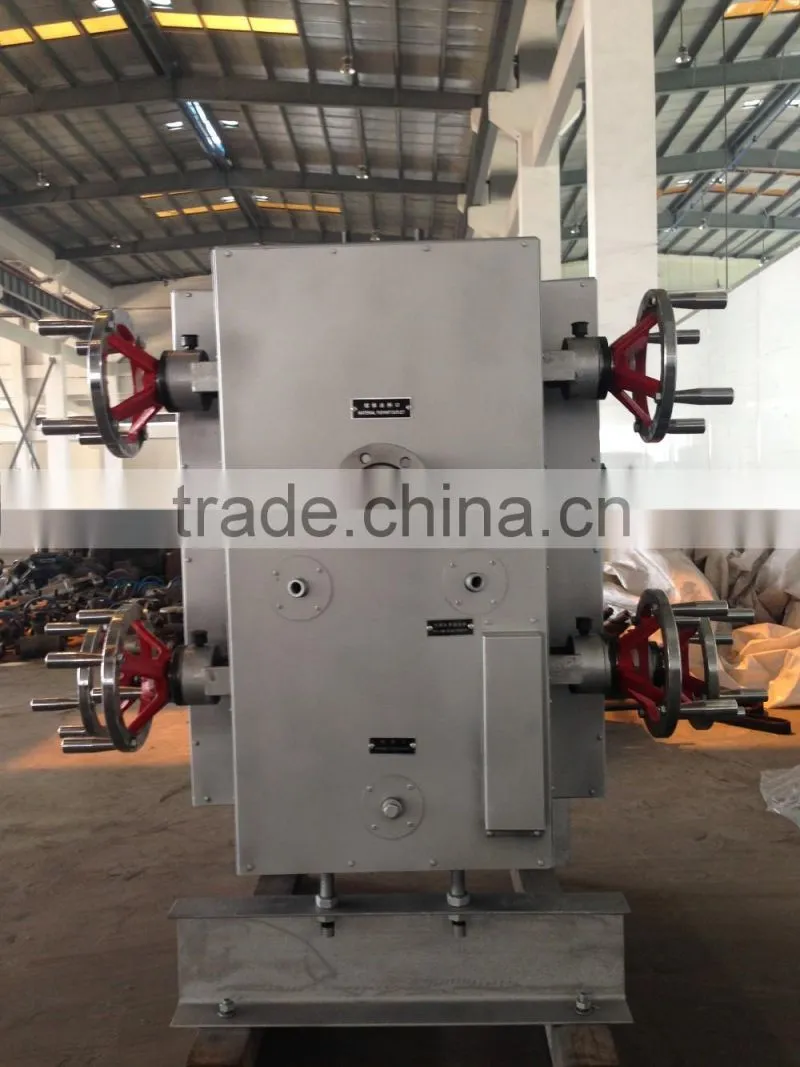

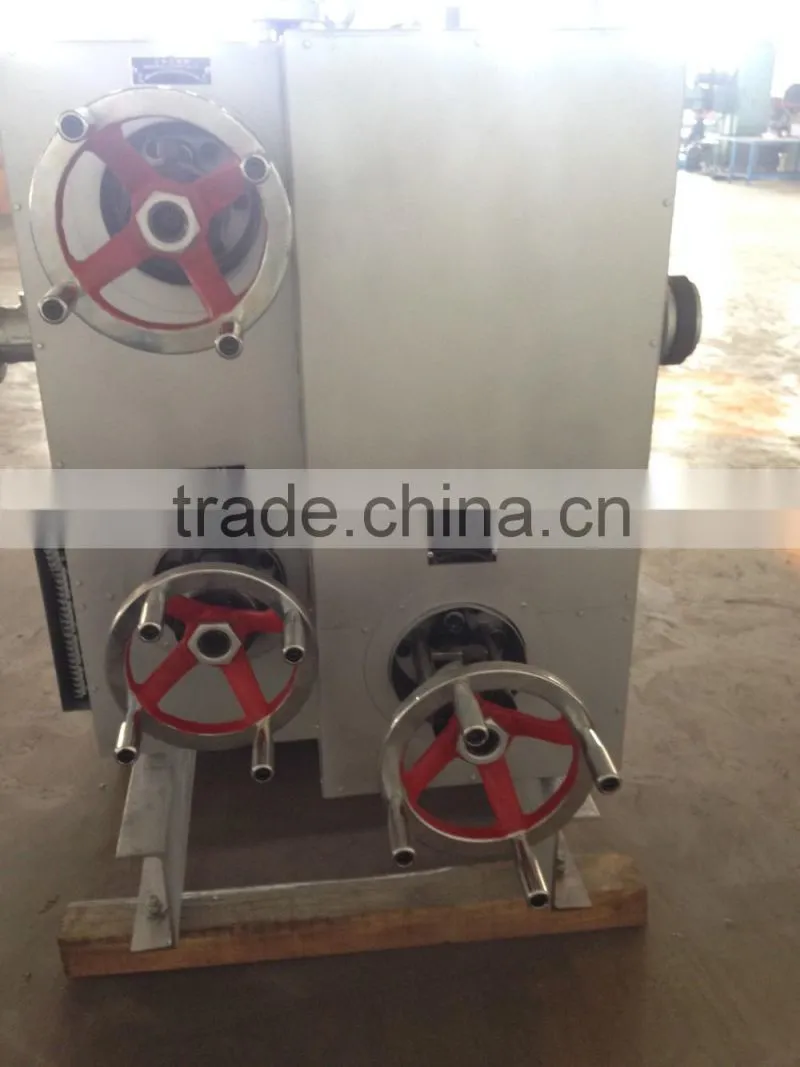

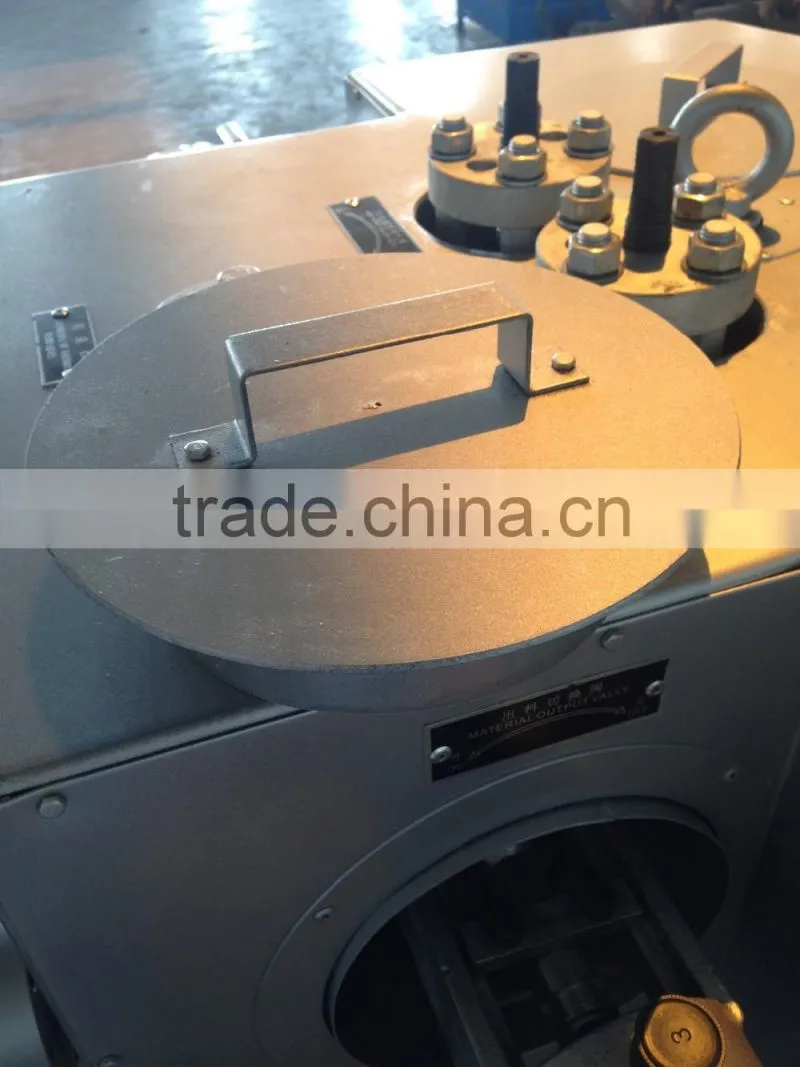

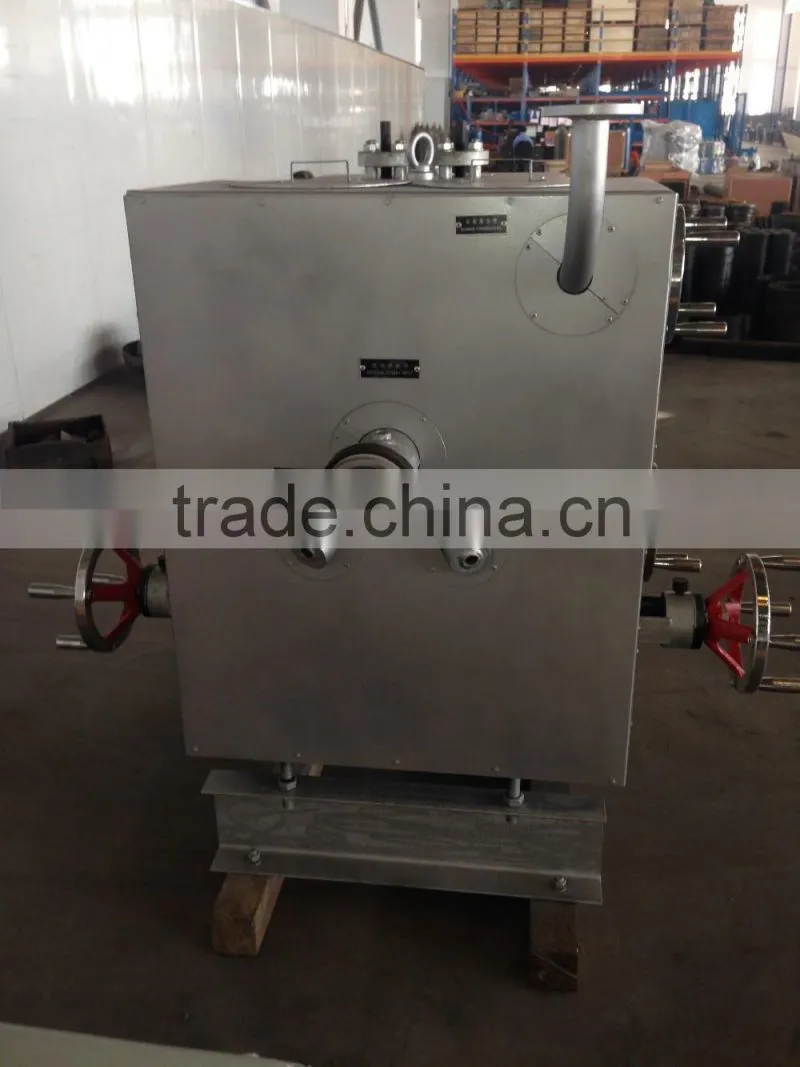

Vertical Continuous Switch Melt Filter,Polymer Filter & Filtration System ( chemical fiber spinning Industry )
Vertical Continuous Switch Melt Filter is used to filter many kinds of fiber material,including PET, polyester fiber for zip tape, PET plastic graining.
Due to its novel structure, it is and .
The heating method is very widely, you can choose electric heating of heat transfer oil, (heat transfer) oil recirculation heating, biphenyl static heating, or biphenyl recirculation heating
According to your requirement, we can provide all kinds of model, both big and small. Now I put our products technical parameters as below, you can choose your needs from it.
Technical Parameters
Model |
Diameter (mm) |
Filter Area(m2) |
Rated Flow (kg/h) |
Heating Capacity (KW) |
Main Specification |
System Pressure |
Biphenyl Jacket Pressure |
Allowable Pressure Differentia |
Operating Temperature |
|||||
H |
H1 |
H2 |
A |
B |
B1 |
|||||||||
CPF-PT-1.05D |
25 |
1.05 |
75-90 |
5.6 |
1100 |
User-Defined |
User-Defined |
1050 |
770 |
1430 |
Max 16Mpa |
≤0.25Mpa |
Max 6Mpa |
≤310 |
CPF-PT-1.26D |
30 |
1.26 |
100-140 |
5.6 |
1150 |
1050 |
770 |
1430 |
||||||
CPF-PT-1.8D |
30 |
1.8 |
170-200 |
7.4 |
1150 |
1100 |
770 |
1430 |
||||||
CPF-PT-2.5D |
30 |
2.5 |
200-250 |
7.4 |
1200 |
1100 |
890 |
1520 |
||||||
CPF-PT-3.5D |
40 |
3.5 |
240-300 |
8.6 |
1200 |
1200 |
950 |
1600 |
||||||
CPF-PT-4.5D |
40 |
4.5 |
350-440 |
8.6 |
1250 |
1200 |
950 |
1800 |
||||||
CPF-PT-5.5D |
50 |
5.5 |
440-500 |
9.4 |
1250 |
1280 |
1050 |
1900 |
||||||
CPF-PT-6.5D |
60 |
6.5 |
500-600 |
9.4 |
1300 |
1280 |
1050 |
2000 |
||||||
CPF-PT-7.5D |
65 |
7.5 |
550-650 |
11.4 |
1350 |
1350 |
1100 |
2050 |
||||||
CPF-PT-9.5D |
65 |
9.5 |
700-850 |
11.4 |
1350 |
1380 |
1280 |
2180 |
||||||
CPF-PT-12D |
65 |
12 |
900-1050 |
11.4 |
1500 |
1380 |
1280 |
2180 |
||||||
