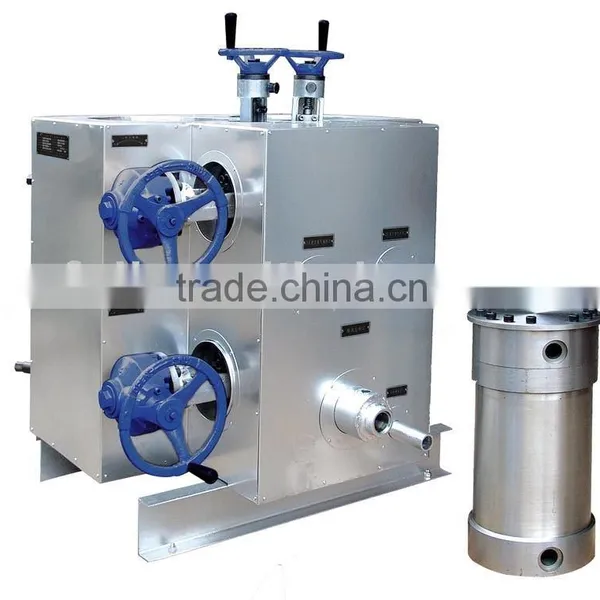

CPT-PT-C Series Vertical Continuous Switch Melt Filter, textile machinery part
it is used to filter many kinds of fiber material, including POY, FDY, Nylon (PA6, PA66, PA11), compound fiber of nylon and polyester, PP spun-bonded non-woven, melt-blown non-woven, PP, PE spinning fiber, BOPET stretch film, spinning polyurethane fibers, viscose fiber, plant fiber, etc.
Due to its novel structure, it is power-effective and widely applicable.
The heating method is very widely, you can choose oil recirculation heating, biphenyl recirculation heating, electric heating of heat transfer oil, or electric heating of biphenyl.
According to your requirement, we can provide all kinds of model, both big and small. Now I put our products technical parameters as below, you can choose your needs from it.
Technical Parameter:
Model |
Diameter (mm) |
Filter Area (m2) |
Rated Flow(kg/h) |
Main Specification |
System Pressure |
Biphenyl Jacket Pressure |
Allowable Pressure Differentia |
Operating Temperature |
||||||
PET |
PA,PP, PE |
H |
H1 |
H2 |
B |
B1 |
A |
|||||||
CPF-PT-0.6C |
30 |
0.6 |
75-150 |
50-110 |
1100 |
User-Defined |
User-Defined |
770 |
850 |
1000 |
Max 25Mpa |
≤0.6Mpa |
Max 6Mpa |
≤310 |
CPT-PT-1.05C |
30 |
1.05 |
200-300 |
150-220 |
1100 |
770 |
950 |
1050 |
||||||
CPT-PT-1.26C |
30 |
1.26 |
250-350 |
180-250 |
1150 |
770 |
950 |
1050 |
||||||
CPT-PT-1.8C |
40 |
1.8 |
300-420 |
220-300 |
1200 |
900 |
1310 |
1100 |
||||||
CPT-PT-2.5C |
40 |
2.5 |
480-600 |
330-420 |
1250 |
900 |
1310 |
1100 |
||||||
CPT-PT-3.5C |
50 |
3.5 |
700-900 |
490-630 |
1250 |
950 |
1530 |
1200 |
||||||
CPT-PT-4.5C |
50 |
4.5 |
800-1000 |
600-780 |
1250 |
950 |
1530 |
1200 |
||||||
CPT-PT-5.5C |
50 |
5.5 |
900-1100 |
650-800 |
1250 |
1050 |
1580 |
1280 |
||||||
CPT-PT-6.5C |
65 |
6.5 |
1000-1200 |
700-850 |
1300 |
1050 |
1580 |
1280 |
||||||
CPT-PT-7.5C |
65 |
7.5 |
1200-1500 |
770-910 |
1350 |
1100 |
1650 |
1350 |
||||||
CPT-PT-9.5C |
65 |
9.5 |
1550-2000 |
850-1000 |
1350 |
1200 |
1650 |
1350 |
||||||
