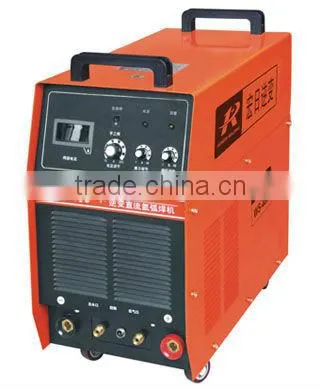

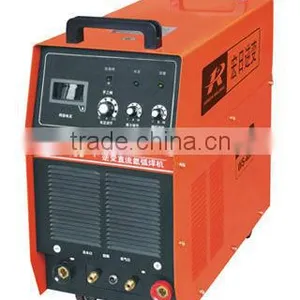

INVERTER DC TIG WELDING MACHINE
Negotiable
MOQ: 5 Cartons (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
hongri
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Jiangsu, China
Brand Name
hongri
Model Number
TIG-400
Motor Type
AC Motor
Dimensions
580*300*560mm
Voltage
three phase 380V±10%
Power(W)
13KVA
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
adopt IGBT inverter technologythickness of plate is 0.5-8mm
well insulation blocking
low no-load voltage
This industrial inverter DC TIG welding machine is very similar to TIG-315 in performance. It is more heavy than TIG-315. It adopts IGBT inverter technology.
The thickness of plate is 0.5-8mm. It has accident prevention measures, including protection ground, well insulation blocking and low no-load voltage.
While it still exists a certain danger because of the sudden variability between the output voltage and current. Please take note of the security.
| Rated Input Voltage | three phase 380V±10% |
| No-load voltage | 68V |
| Output current Range | 10-400A |
| Post flow time | 1-10S |
| Rated Input Power | 13KVA |
| Rated Input Current | 19.5A |
| Rated Output Current | 400A |
| Rated Load Voltage | 26V |
| Duty Cycle | 60% |
| N.W. | 36KG |
| Dimension(L×W×H) | 580×300×560mm |
