Specifications
medium dimensionexcellent arc stability
minimum capacity is 14KVA
used for welding of thin and medium plates.

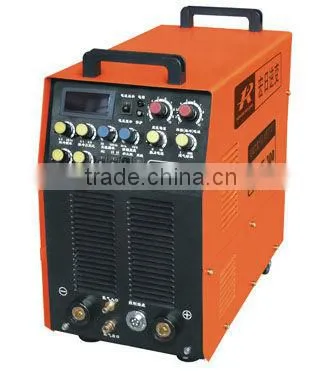

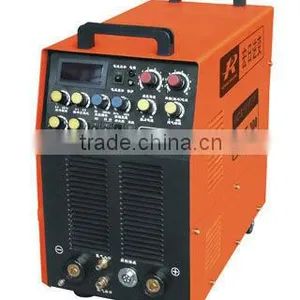

WSME-300 inverter AC/DC pulse TIG welding machine has a medium dimension among our products and handle and casters contribute its portable performance.
Belongs to single phase welding machine, power input of this product is single-phase 220V ± 10% and minimum capacity is 14KVA.
But there are three welding modes for this product, hand-welding (MMA), DC TIG and AC TIG. AC and DC current range for hand-welding is from 10 to 230A, and for DC TIG and AC TIG, the range of base current and pulse current are both from 10 to 300A.
With excellent arc stability, WSME-300 inverter AC/DC pulse TIG welding machine can be used for welding of thin and medium plates.
INPUT |
Power |
Single phase 220V±10% 50HZ |
|
Minimum capacity |
14KVA |
||
MMA |
No-loadVoltage |
66V |
|
Rated Input Current |
42A |
||
Rated Output Current |
230A |
||
DC |
Current Adjusting Range |
10~230A |
|
AC |
Current Adjusting Range |
20~230A |
|
AC frequency |
20-100HZ |
||
AC balance |
30%-70% |
||
DC(PULSE)TIG |
No-load Voltage |
66V |
|
Rated Input Current |
40A |
||
Rated Output Current |
300A |
||
Duty Cycle |
60% |
||
Based current adjusting |
10-300A |
||
Pulse current adjusting |
10-300A |
||
Arc starting/end current adjusting |
<75A(fixed) |
||
Post flow time |
1-25s |
||
Current Up-slope/Down-slope Time |
0-10s |
||
Pulse Rate |
0.1-0.9 |
||
Pulse Frequency |
0.5-25HZ |
||
DC(PULSE)TIG |
Efficiency |
≥80% |
|
Torch cooled mode |
Gas cooled(<100A) |
||
Arc-starting |
High frequency arc striking |
||
No-load voltage |
66V |
||
Rated Input Current |
40A |
||
Rated Output Current |
300A |
||
Duty Cycle |
60% |
||
Based current adjusting |
10-300A |
||
Pulse current adjusting |
10-300A |
||
Arc starting/end current adjusting |
<75A(fixed) |
||
AC frequency |
20-100HZ |
||
AC balance |
30%-70% |
||
Pulse With Ratio |
0.1-0.9 |
||
Pulse Frequency |
0.5-25HZ |
||
Advance gas time |
0.5s |
||
Post flow time |
1-25s |
||
Current Up-slope/Down-slope Time |
0-10s |
||
N.W. |
25KG |
||
Dimension(L×W×H) |
560×250×460 |
||
