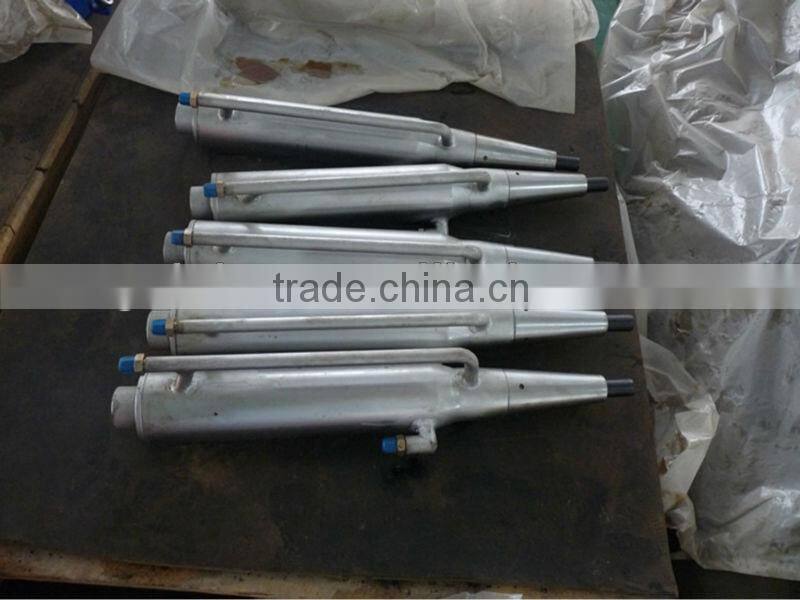

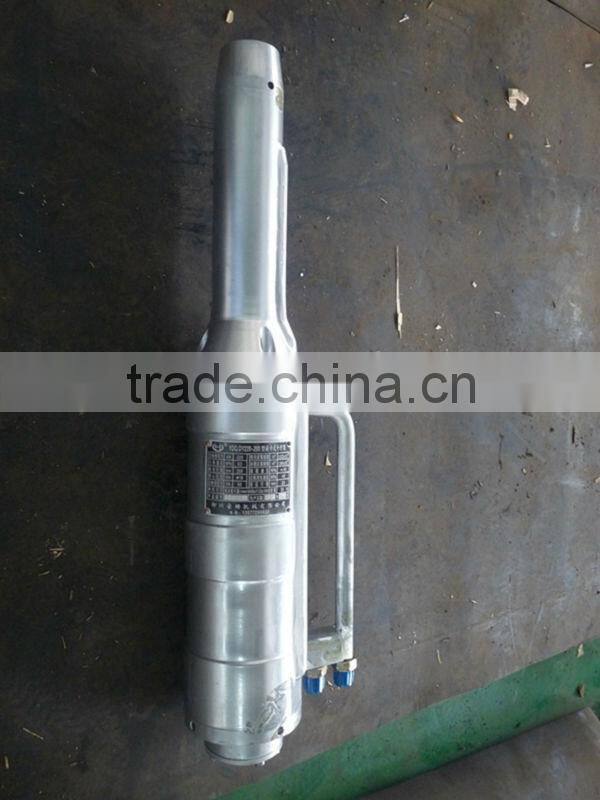

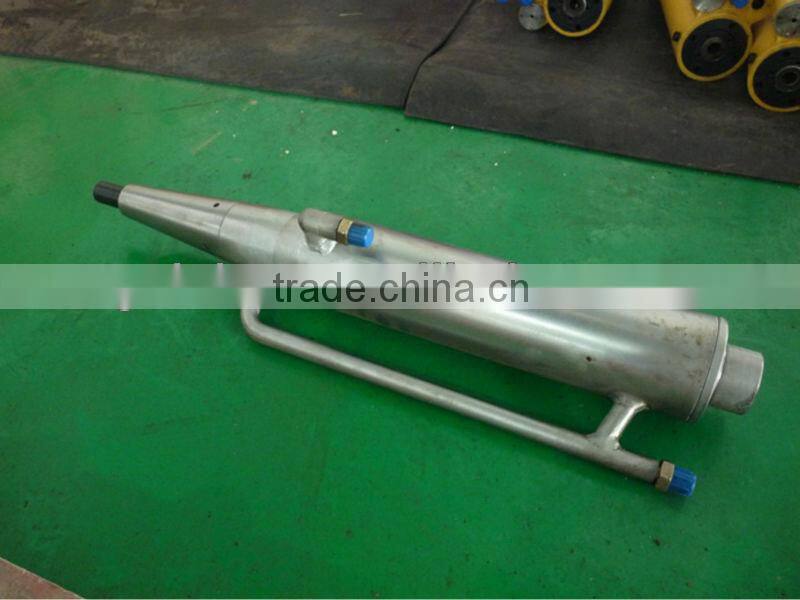

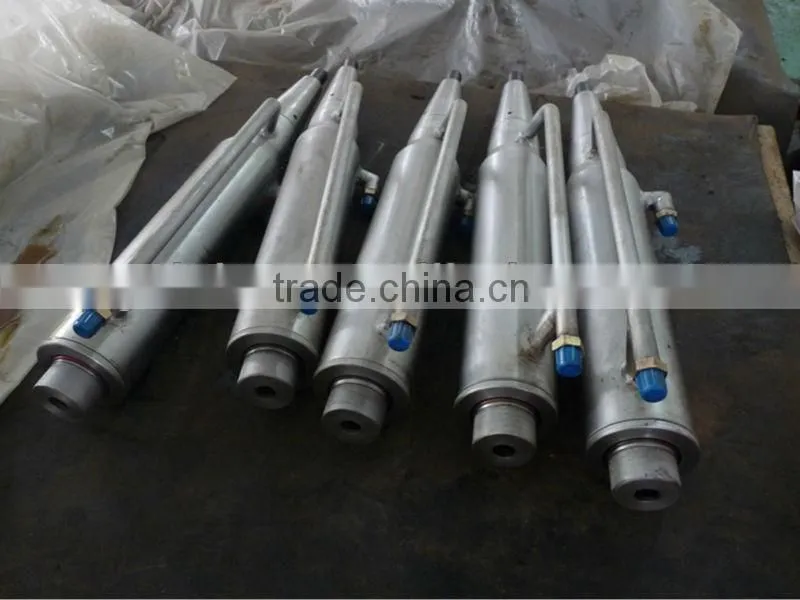

Help CenterYDQ.DY220-200 Type Fore-cramp Specia for Epoxy Strand Tension(stretching) Jack
Related Products
-
GYJ600-150Type ExtruderUS$ 100 - 200MOQ: 2 Pieces -
YDC4500-200 Lightweight Hydraulic Core-through Tensioning(stretching) JackUS$ 600 - 1,000MOQ: 2 Sets
-
YDQ Series Lightweight Hydraulic Front-jamming JacksUS$ 1,500 - 2,000MOQ: 1 Set
-
High Pressure PumpUS$ 1,500 - 2,000MOQ: 1 Set
-
YDC2000-200 Series Lightweight Hydraulic Core-through(stressing) Tension JacksUS$ 1,500 - 2,000MOQ: 2 Sets
Working Principle:
Under the function of oil presurre,the moving part moves relative to the fixed part to realize tensioning the jack.The design tensioning force can be obtained by controlling the area of the tensioning cavity and the oil pressure.In order to reduce the weight of the jack,the stroke of the jack is designed as 120mm,160mm and 200mm.the front-jaming jack has the performance of continuously progressive repeated tensioning,and it can realize the tensioning of prestressing tendons of different lengths.The structure diagram of the YDQ front-jaming jack is shown in the figure below:
Specifications and models meanings:
YDQ.DY220-200
YDQ.DY——Hydraulic Front-jamming Jack
220——Nominal Tensioning Force(kN)
200——Stroke of Tensioning(mm)
Advantages:
1.light weight
2.small volume
3.convenient use
4.used for steel strand
5.portable
Technical Performance Parameters:
| nominal tensioning force | KN | 220 | tension piston | m² | 3533 |
| nominal oil pessure | MPa | 63 | return piston area | m² | 1944 |
| tensioning stroke | mm | 200 | return oil pressure | MPa | <45 |
| core-through bore diameter | mm | Φ19 | nomina oil pressure top pressure | MPa | 40 |
| nominal top pressure | KN | 50 | top pressure stroke | mm | 20 |
| dimension | mm |
length×width×height 648×112×184 |
weight | kg | 25 |

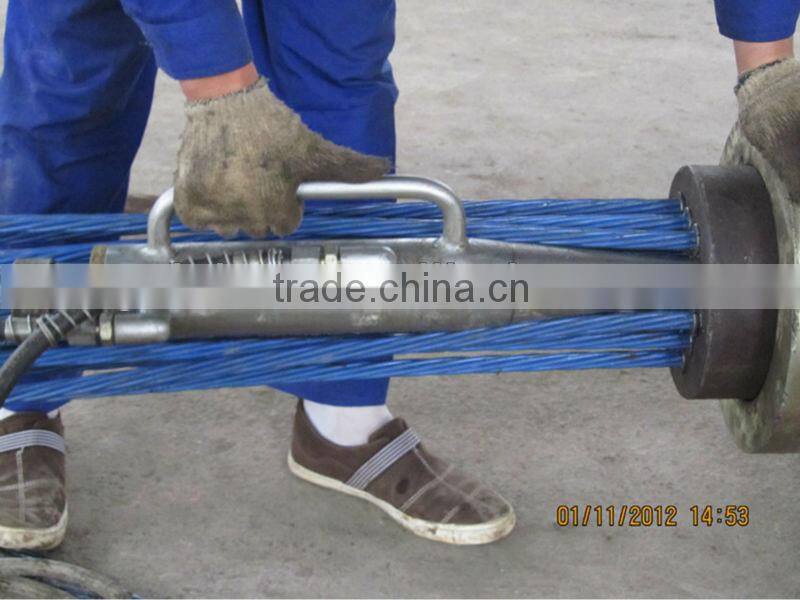

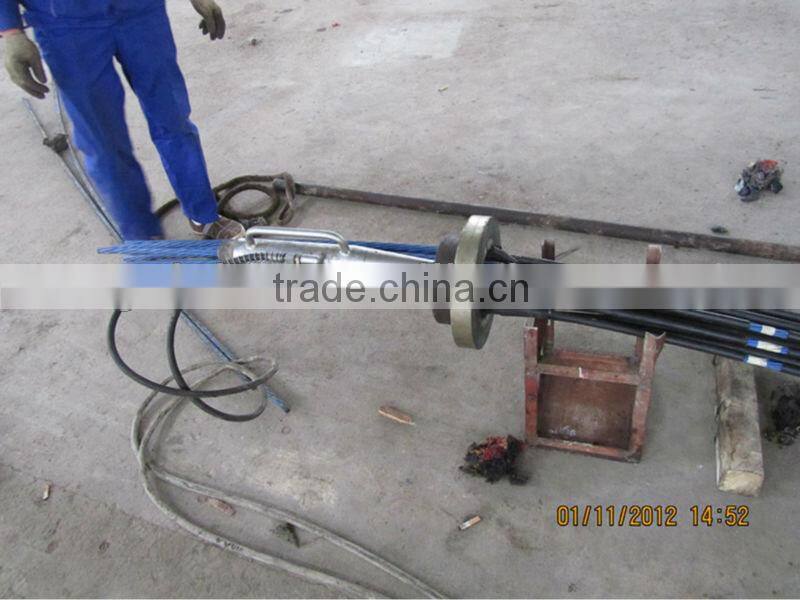

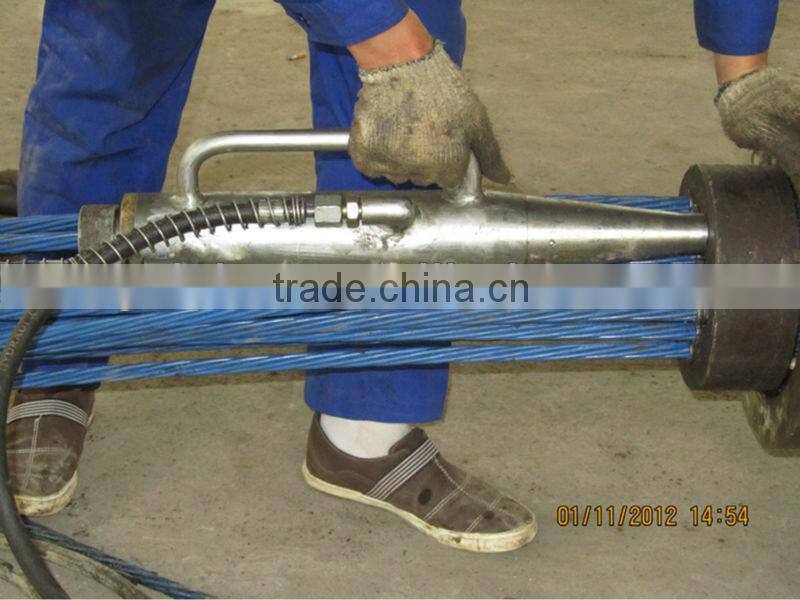

How to use:
