Help CenterGYJ600-150Type Extruder
Related Products
-
YDC4500-200 Lightweight Hydraulic Core-through Tensioning(stretching) JackUS$ 600 - 1,000MOQ: 2 Sets -
YDQ Series Lightweight Hydraulic Front-jamming JacksUS$ 1,500 - 2,000MOQ: 1 Set
-
High Pressure PumpUS$ 1,500 - 2,000MOQ: 1 Set
-
YDC2000-200 Series Lightweight Hydraulic Core-through(stressing) Tension JacksUS$ 1,500 - 2,000MOQ: 2 Sets
-
YD2000-100 Type Hydraulic Lifting and Pushing JackUS$ 100 - 500MOQ: 2 Sets

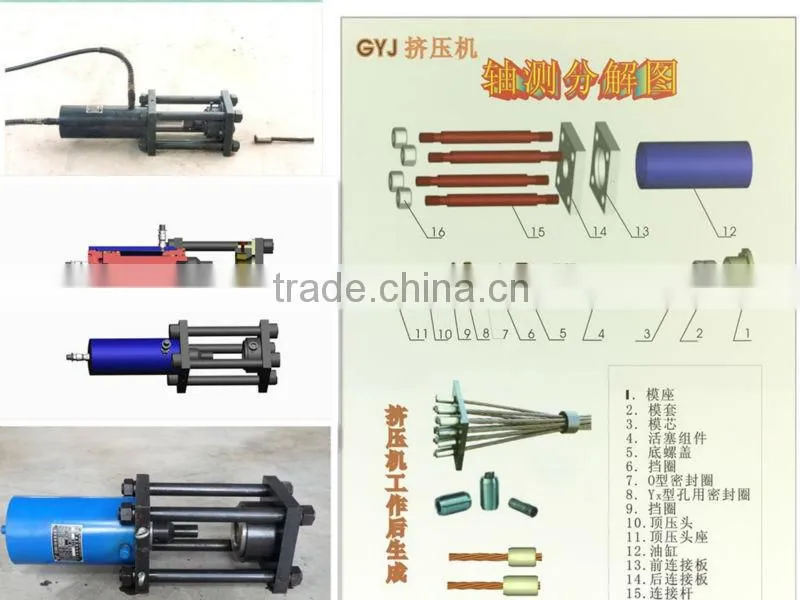

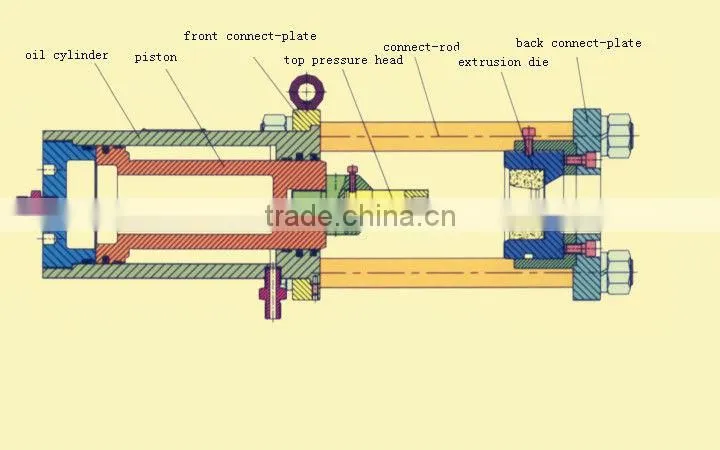

Structure:
1.hydro-cylinder
2.end cover
3.plunger
4.extruder base
Working principle:
1.Extrusion machine base is fixed body
2.The piston and the top pressure head assembly which connected with the piston is moving body
3.Input high pressure oil to oil cylinder through pump
4.The piston drives the extrusion head component to move in the oil pressureuntil the form extruder anchor
5.Supply oil to cylinder,the piston return.
Specifications and models meanings:
GYJ——extruder(hydraulic extrusion type)
600——nominal pressure600KN
150——compression stroke150mm
Advantages:
1.High voltage resistance
2.Long service life
3.Faster extruder speed
4.Easy disassembly
5.Using anchor by the extruder in the construction engineering
6.Simplify construction technology
7.Shorten the tensioning auxiliary time
8.Save steel strand material
9.Reducing the construction cost
Technical Performance Parameters:
| project | unit | value | project | unit | value |
| nominal oil pressure | MPa | 50 | piston area of return stroke | m² | 49.5 |
| maximum extrusion pressure | KN | 565 | return oil pressure | MPa | <25 |
| compression stroke | mm | 150 | matching oil pipe | mm | G6 Ⅲ Φ6×3000 |
| compression piston area | m² | 113 | matching oil pump | 2YBZ2-80 | |
| outline size | mm | 629×195×195 | weight | Kg | 41 |
our features:
We provide after-sale service, technical support, personalization and processing, production on-demand and strictly in accordance with the buyer requirements to provide quality services. Provide engineering construction for bridge,railway,building etc,and maintenance and reinforcement of bridge.We have a strong engineering team who are all qualified and resolve kinds of problems during construction.
