Structure:
1.feeding funnel 2.speed reducer 3.up-blender
4.hopper 5.down-blender 6.motor
Working principle:
1.rotate the feeding handle to closed position
2.connect the power supply,make the mixer achieve normal operation state
3.add appropriate amount of water, then add the cement or lime slurry according to the proportion
4.after blending slurry,rotate feeding handle,make the slurry leak into store material barrel
5.adjust to speed of leaking slurry,don't store too much slurry in the barrel and lead to overflowing phenomenon
Usage:
1.for the construction of metallurgy
2.for the railway and bridge
3.for the prestressing component
4.for the construction and repairment of engineer
5.match with UB3C,2UB6 Type motar pump to work
Advantages:
1.multiple mixer
2.novel design
3.large capacity
4.light weight
5.easy to install and transport
6.convenient operation and use

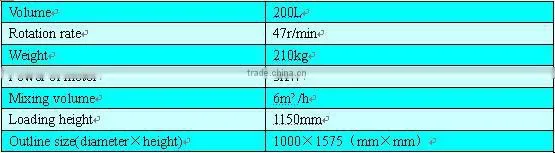

Technical Performance Parameters:
our features:
We provide after-sale service, technical support, personalization and processing, production on-demand and strictly in accordance with the buyer requirements to provide quality services. Provide engineering construction for bridge,railway,building etc,and maintenance and reinforcement of bridge.We have a strong engineering team who are all qualified and resolve kinds of problems during construction.
