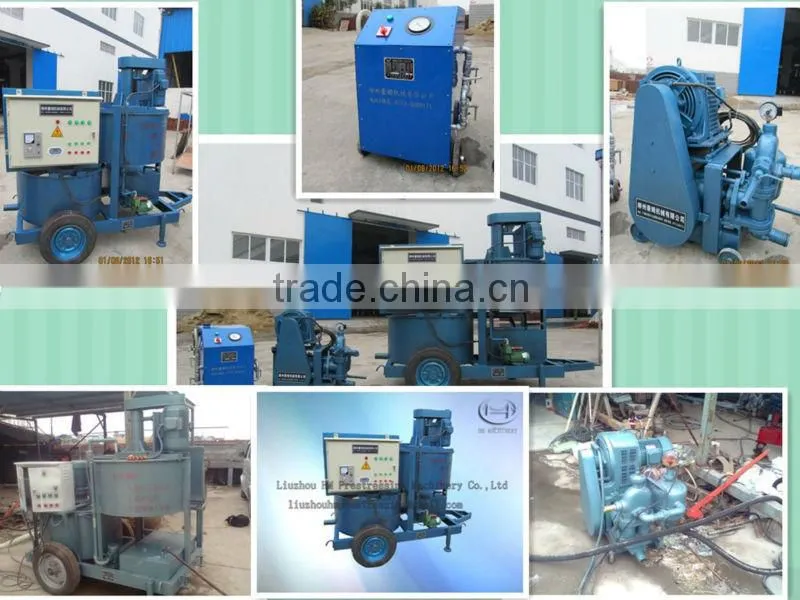

Structure:
1. Semi-automatic high-speed stirring trolley
2. Double piston continuous pressure grouting pump
3. Prestressed vacuum pump

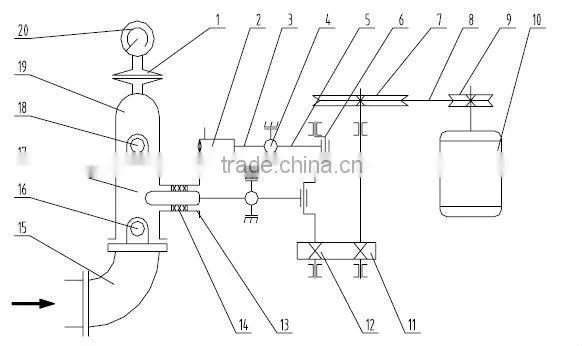

Schematic diagram of a mortar pump
1.oil chamber 2.piston 3.piston rod 4.crosshead nnecting rod 6.crankshaft 7.big belt wheel 8.triangular belt wheel 9.small belt wheel 10.motor 11.small gear 12.big gear 13.flang 14.ring 15.inlet elbow
16.inlet valve 17.cylinder 18.slurry outlet valve ure chamber ure safety table
Working principle:
1. Semi-automatic operation
When used ,to set the desired water ratio, the trolley can be automatically controlled
2. Open the outlet valve let cement slurry into the low-speed stirring barrels to reserve
3. Close outlet valve of high-speed blend barrel,feeding to high-speed stirring drum
Usage:
1.blend slurry at the construction of bridge after tensioning duct grouting
2.Slurry mixing at building metallurgical industries
3.blend all thing of powder,such as cement
Advantages:
1. Compact structure
2. High and low speed stirring
3. Easy to move
4. Simplicity of operation
5. Set water volume
Technical Performance Parameters:

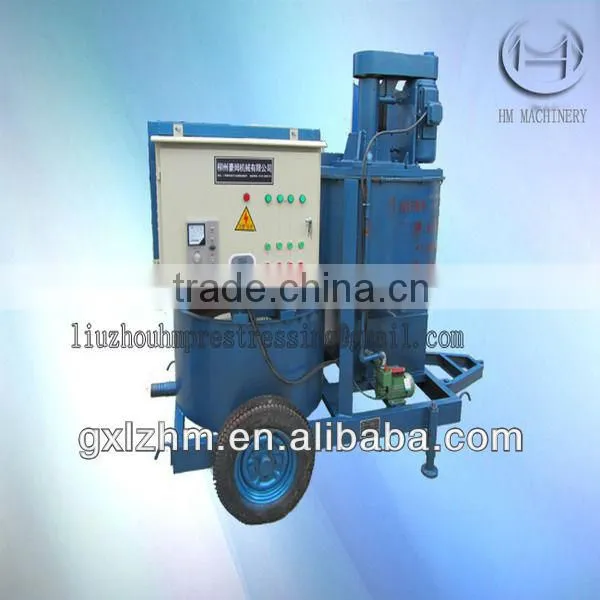

DYJ-G700 Type semi-automatic high-speed stirringtrolley:
| volume | 700Kg |
| total power(high/low speed) | 10.3KW |
| rotation speed(high/low speed) | (1020/45)r/min |
| max speed | <15m/s |
| outline size(length*width*height) | 2010*1350*2040(mm) |
UB3.5 Double piston continuous pressure grouting pump:
| delivery value | 3.5m³/h |
| working pressure | 3Mpa |
| motor power | 4KW |
| motor rotation speed | 0-1440r/min |
| plunger cylinder number | 2 |
| outline size(length*width*height) | 1100*450*710(mm) |
MBV80Type vacuum pump:
| maximum valume | 80m³/h |
| ultimate vacuum | -0.097Mpa |
| motor power | 2.35KW |
| motor rotation speed | 0-2850r/min |
| maximum pressure differential | 200mbar |
| outline size(length*width*height) | 1100*500*450(mm) |
our features:
We provide after-sale service, technical support, personalization and processing, production on-demand and strictly in accordance with the buyer requirements to provide quality services. Provide engineering construction for bridge,railway,building etc,and maintenance and reinforcement of bridge.We have a strong engineering team who are all qualified and resolve kinds of problems during construction.
