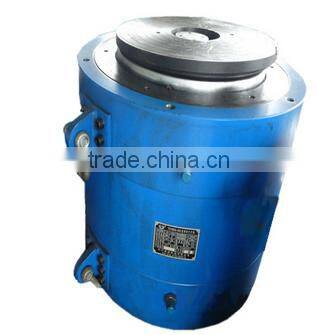

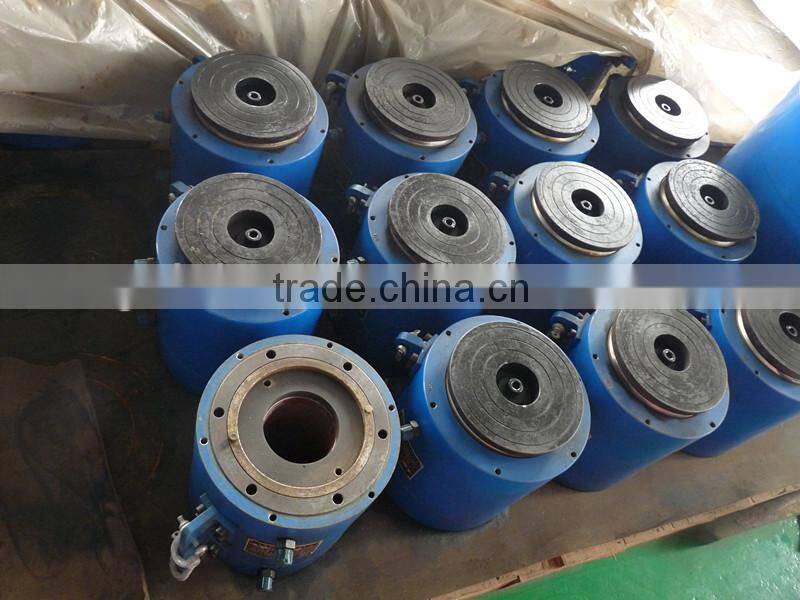

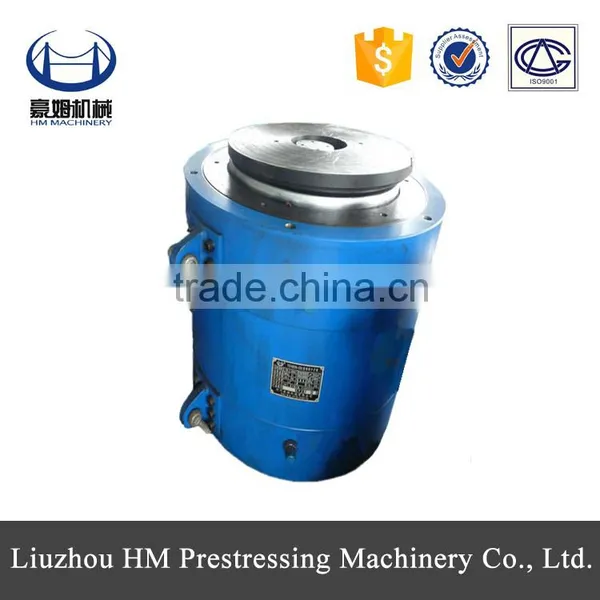

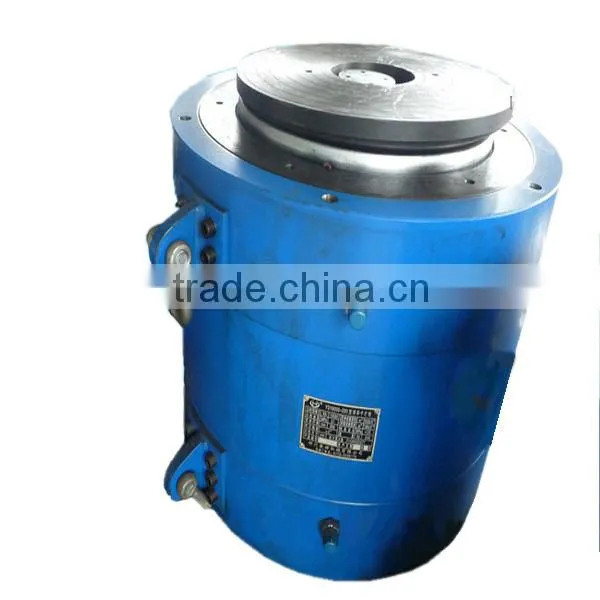

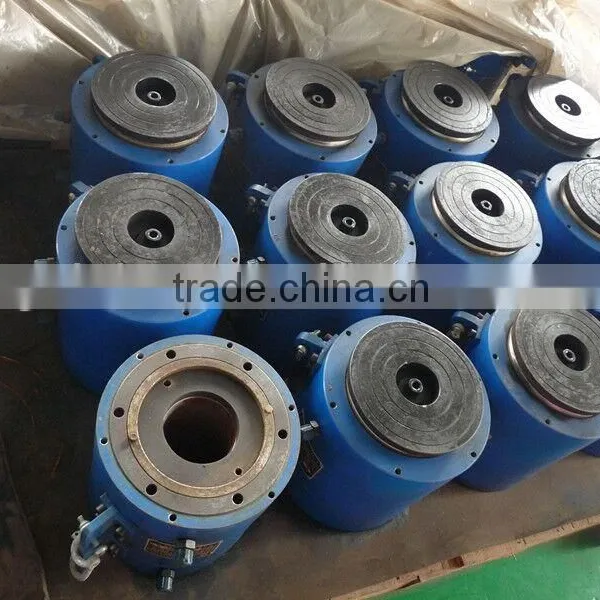

YD10000-200 prestressed top lifting pushing hydraulic jack
Specification:
1. YD10000-200 prestressed top lifting pushing hydraulic jack has large bearing capacity
2. lifting and pushing jack for reinforced concrete bridge deck
3. lift and push the bridge turn to other direction
4. hydraulic lifting jack widely used in bridge and building construction
5. lifting and pushing jack: small outer dimension
Specifications and models meaning:
YD10000-200 type lifting and pushing jack
YD——Hydraulic lifting and pushing jack
10000——Nominal Lifting Force(KN)
200——Lifting Stroke(mm)
Advantages:
1.more compact structure
2.good sealing performance
3.light weight
4.small volume
5.convenient installation and dismantlement.
Technical Performance Parameters:
| nominal lifting force | KN | 10000 | lifting piston area | m² | 19.635×10¯² |
| nominal oil pressure | Mpa | 51 | return piston area | m² | 7.068× 10¯² |
| lifting stroke | mm | 200 | return oil pressure | Mpa | <25 |
| correction angle | >3º | weight | kg | 886 | |
| outer dimension | mm | legth×width×height 514×602×677 | |||
our features:
We provide after-sale service, technical support, personalization and processing, production on-demand and strictly in accordance with the buyer requirements to provide quality services. Provide engineering construction for bridge,railway,building etc,and maintenance and reinforcement of bridge.We have a strong engineering team who are all qualified and resolve kinds of problems during construction.
