Advantages:
1. prestressed special construction of bridge suspender cableof the stress unit mutual is isolate
2. prestressed special construction of bridge suspender cable is a type of integral extrusion
3. prestressed special construction of bridge suspender cablehasreliable fatigue performance
4. prestressed special construction of bridge suspender cable has strong bearing capacity
5. prestressed special construction of bridge suspender cable has compact anchor head structure
6. bridge suspender cable small outer diameter
7. bridge suspender cable reduce the cable body weight
8. bridge suspender cable can be convenient and economic transportation
Structure chart:
1.extrusion anchor head 2.spherical pedestal 3.spherical plate 4.anchor plate
5.pre-buried pipe 6.vibration absorber 7.water shield 8.steel wire finished cable
Technical Performance Parameters:
| cable type | A | B | A1 | C | D | E | F | G(inner) |
| HM.GJ15B-9~12 | Tr115×8 | 750 | M84×6 | Φ180 | 100 | 310×310 | 50 | 127 |
| HM.GJ15B-13~14 | Tr125×8 | 810 | M94×6 | Φ190 | 110 | 320×320 | 50 | 137 |
| HM.GJ15B-15~19 | Tr140×10 | 915 | M102×8 | Φ200 | 130 | 350×350 | 50 | 152 |
| HM.GJ15B-22~27 | Tr160×10 | 1000 | M122×10 | Φ240 | 165 | 420×420 | 50 | 172 |
| HM.GJ15B-31~37 | Tr200×12 | 1300 | M132×10 | Φ280 | 180 | 550×550 | 50 | 215 |

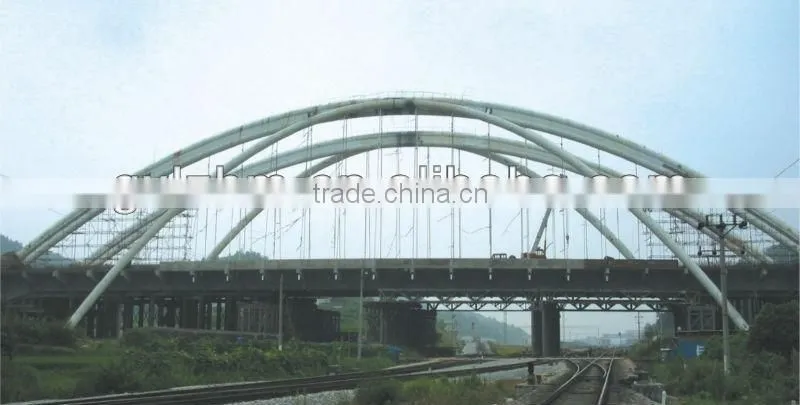

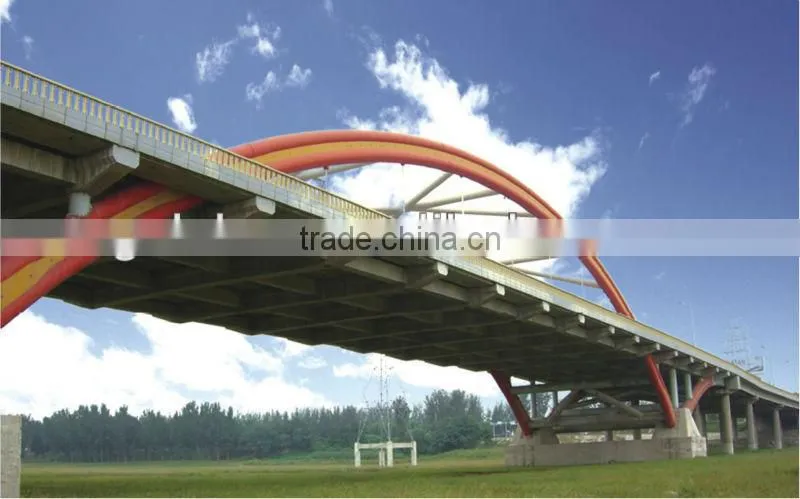

Successful construction projects:
1.Beijing Laba River Bridge:
2.Yiyang Kangfu South Road suspender bridge project:
3.Beijing Chaobai River Suspender Arch Bridge Project:
our features:
We provide after-sale service, technical support, personalization and processing, production on-demand and strictly in accordance with the buyer requirements to provide quality services. Provide engineering construction for bridge,railway,building etc,and maintenance and reinforcement of bridge.We have a strong engineering team who are all qualified and resolve kinds of problems during construction.
