Home > Construction & Decoration > Decoration Materials > Sandwich Panel > HM Unbonded Circular Winding Anchorage/loop Anchorage

HM Unbonded Circular Winding Anchorage/loop Anchorage

US$ 40 - 80 MOQ: 10 Sets

Key Specifications

Get Latest Price

Place of Origin:

Guangxi, China

Brand Name:

Model Number:

HM15-2

Contact Supplier Request Quote Chat Now

Liuzhou HM Prestressing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

fangcheng huangpu shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangxi, China

Brand Name HM

Model Number HM15-2

Material Steel

usage:

1. ring winding anchorage/loop anchorage is used for large-scale water diversion tunnel

2. unbonded circular winding anchorage/loop anchorage is used for hydropower station water diversion structure pipe sewage pool

3. unbonded circular winding anchorage/loop anchorage is used for prestressed structure

4. unbonded circular winding anchorage/loop anchorage is used for prestressed connector

5. unbonded circular winding anchorage/loop anchorage can be used as a tension comprised

6. HM working anchor plate clip limit deflector transition boards extension tube

7. working with 2YBZ2-80 type electric oil pump and YDC series jack tensioning

Specification:

1.also known as middle anchor is a tensioning end and fixed end in one of the special anchorage

2.ring winding anchorage/loop anchorage is suitable for prestressed concrete beam end

3.cannot or difficult to install general tensioning end anchorage circular buildings

4.used in the culvert tunnel of circular pool, sewage treatment plant of egg-shaped digester and other projects

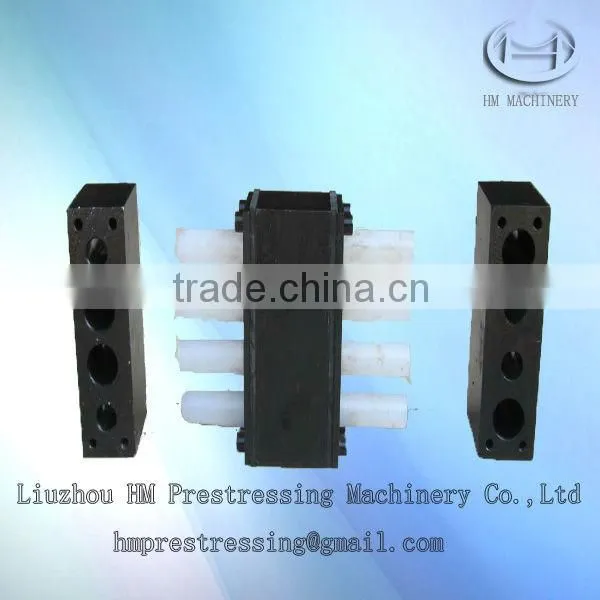

Composition of HM unbonded circular winding anchorage/loop anchorage:

1.HDPE protection pipe 2.epoxy unbonded steel strand 3.special epoxy

ing anchor plate 4.unbonded steel strand 6.rubber plate

7.tensioning end of steel plate 8.opening protective cap 9.HDPE protective pipe

10.closed protective cap

Structure:

each set of HM15-n anchorage including:

number order	name	quantity	material	hot treatment	remark
1	working anchor plate	1 piece	forging piece 40Cr	tempering26-32HRC	flange on surface
2	working wedge	2n pair	swaging 20CrMnTi	carbonitriding 79-84HRA
3	opening protective cap	n piece	HDPE
4	opening protective cap	n piece	HDPE
5	tensioning end of steel plate	1 piece	Q235-A		flange on surface
6	fixed end of steel plate	1 piece	Q235-A		flange on surface
7	Sealing rubber sheet	2 piece	oil resistant rubber
8	hex head screw	8 piece		stainless steel
9	protective pipe	0.6n meter	HDPE

n means that the number of steel strand anchor , anticorrosive grease and adhesive tape is not included in the table

Successful project:

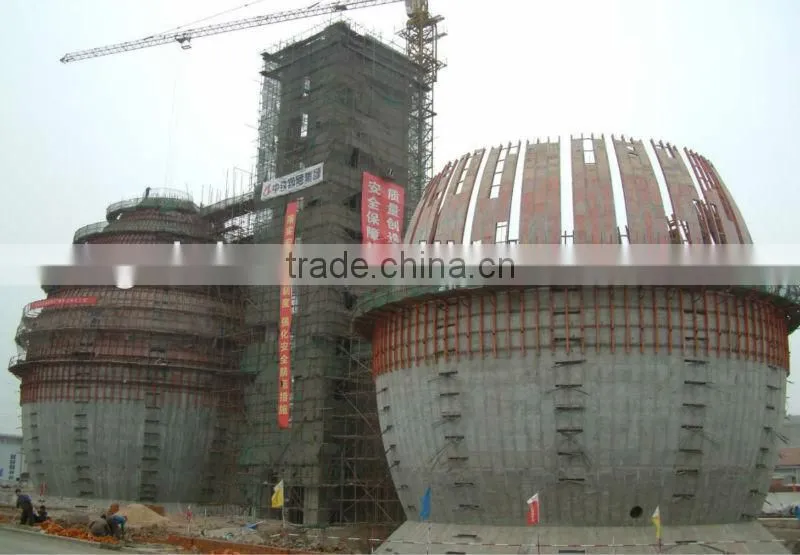

1. Wuhan sewage pool

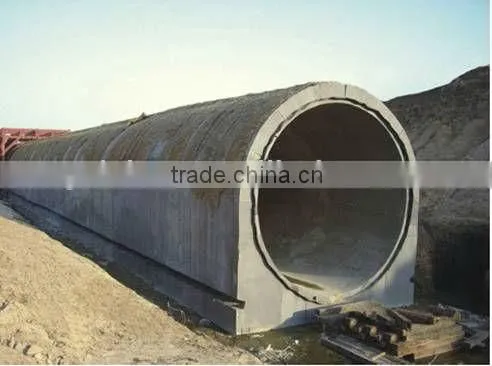

2.Shenyang dahuofang water conveyance project:

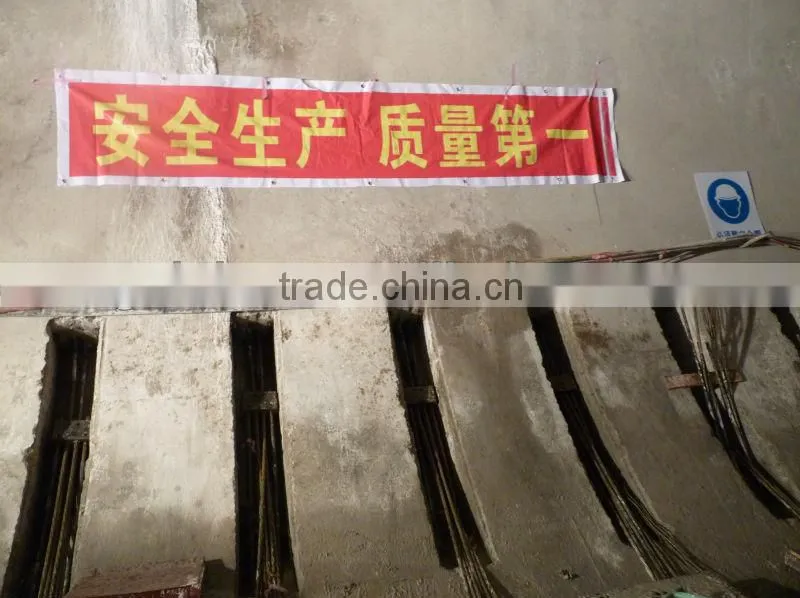

layout of ring anchor slot:

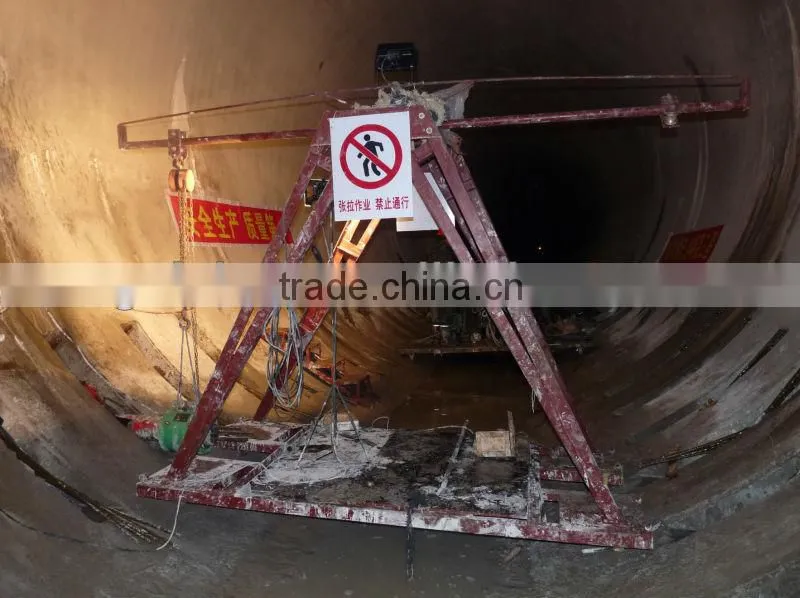

tensioning trolley:

our features:

We provide after-sale service, technical support, personalization and processing, production on-demand and strictly in accordance with the buyer requirements to provide quality services. Provide engineering construction for bridge,railway,building etc,and maintenance and reinforcement of bridge.We have a strong engineering team who are all qualified and resolve kinds of problems during construction.
