Help CenterPrestressed Circular(intermediate)/loop Anchorage
Related Products
-
Prestressed Wire Suspender Anchorage for Upset Head Anchorage SystemUS$ 50 - 100MOQ: 200 Sets -
Prestressed Special for Epoxy Strand Galvanized External Cable B Type AnchorageUS$ 5 - 50MOQ: 200 Sets
-
Prestressed Galvanized Suspender Cable Steel Strand AnchorageUS$ 5 - 10MOQ: 200 Rods
-
Chinese Anchor Ring and Wedges With Low PriceUS$ 85 - 100MOQ: 1 Set
-
Prestressed Ground AnchorageUS$ 2 - 10MOQ: 200 Sets
Specification:
1. used for tension and anchor of circular prestressed tendon
2. circular/loop anchor is also known as intermediate anchor
3. loop anchor is a special anchor contains tension end and fixed end

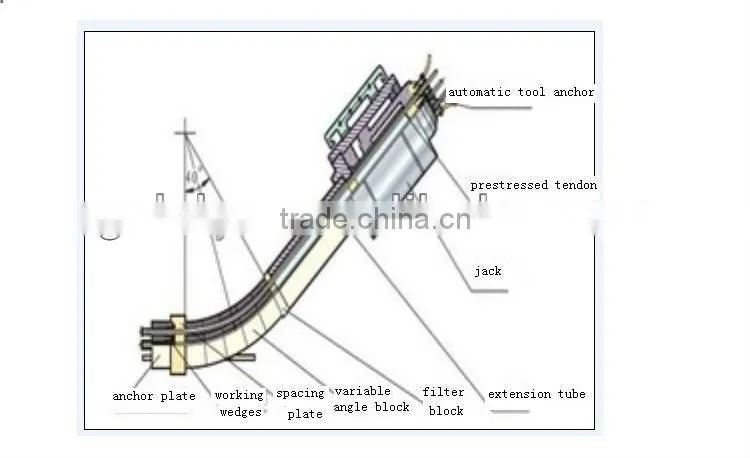

4. tension end and fixed end of prestressed tension are on the same ambulant anchor plate
5. anchor plate can b moved
6. achieve tension by change loop anchor corners in the tension tank
Usages:
1. applies to the end of prestressed tendon
2. applies to circular building
3. used in hydropower station
4. used in drainage tunnel
5. ring-type anchorage is mainly used for large diversion project,swage pool and tunnels and kinds of circular prestressed structure
6. use as prestressed tendon connector,there are bonded and unbonded two types
7. through tension angulator and 2YBZ-80 high-pressure electric oil pump,YDC series center-hole jack to match ensin
8. can add numbers of corner plate and get any 5 degree deflection angle

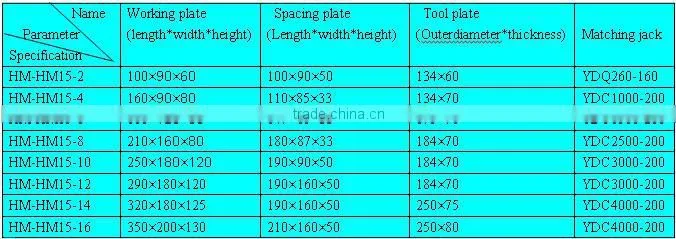

HM-HM loop anchor technical parameter chart:
our features:
We provide after-sale service, technical support, personalization and processing, production on-demand and strictly in accordance with the buyer requirements to provide quality services. Provide engineering construction for bridge,railway,building etc,and maintenance and reinforcement of bridge.We have a strong engineering team who are all qualified and resolve kinds of problems during construction.
