Prestressed Tension End Anchorage System
US$ 40 - 70
MOQ: 200 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
HM
Model Number:
YM15(13)-7
Payment & Shipping
Payment Methods:
Port of Shipment:
fangcheng shanghai huangpu
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Prestressed 6-hole Epoxy Steel Strand Galvanized AnchorageUS$ 50 - 100MOQ: 200 Sets -
GJ15A Integral Extrusion Anchorage for Suspended BridgeUS$ 50 - 100MOQ: 50 Pieces
-
Prestressed Multi Strand AnchorUS$ 85 - 100MOQ: 1 Set
-
Prestressed Tie Bar(tie Rod) AnchoargeUS$ 50 - 100MOQ: 20 Tons
-
Round 13-hole Galvanized Prestressed Tooling AnchorageUS$ 60 - 100MOQ: 200 Sets
Place of Origin
Guangxi, China
Brand Name
HM
Model Number
YM15(13)-7
Material
Steel
Advantages:
1. GB/T 14370-2007 Standard
2. Type:anchorage with 7 holes
3. Stable,reliable anchorage performance
4. Providing after-sale service
5. Resistant to rust
6. Comply with <anchorage,grip,coupler for prestressing tendons> standards
Usages:
1. can be used to lock the steel strand wires on/under clases of 2000MPa standard strength
Application:
1.be often used in bridge construction
2.be used in pre - installed location, dock
3.be used in carbon fiber reinforcement
4.be used in bridge and building reinforcement
5.prestressed engineering,cable,subway
6.be used in kinds of warehouse building, tower building, weight lifting
7.permanent anchor device are usually used on the concrete
8.smooth steel-strand anchorage(HM15) (applicable for 12.7, 15.27, 17.8, 21.8 and 28.6 steel strands) working with 2YBZ4-630 type electric pump and YDQ series jack fixed tension.

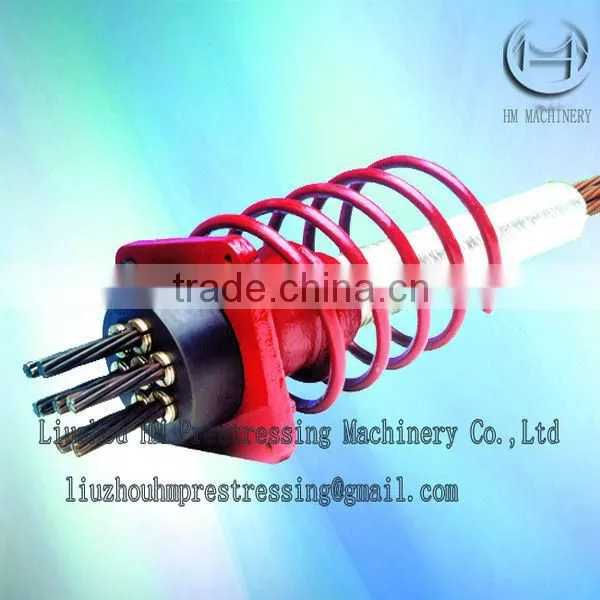

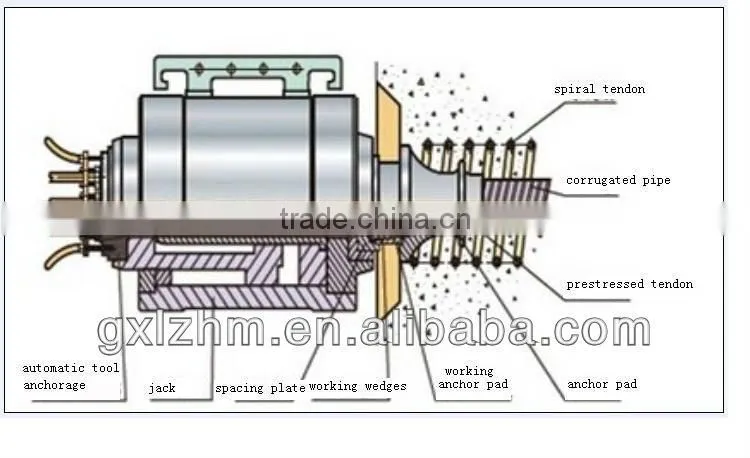

Product composition:
1set anchorage consist of 4 parts:
1.The working anchor plate
2.spiral reinforcement
3.anchor pad
4.working-clip(working anchorage wedges)
5.steel strand
our features:
We provide after-sale service, technical support, personalization and processing, production on-demand and strictly in accordance with the buyer requirements to provide quality services. Provide engineering construction for bridge,railway,building etc,and maintenance and reinforcement of bridge.We have a strong engineering team who are all qualified and resolve kinds of problems during construction.
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2007
Factory Size
10,000-30,000 square meters
Total Employees
201 - 300 People
