AC 3 Phase 3 Line Input EMC EMI Filter

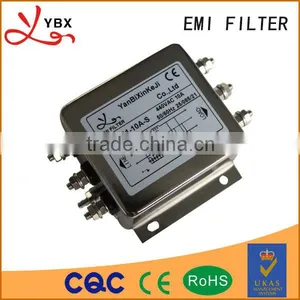

AC 3 Phase 3 Line Input EMC EMI Filter thumbnail-1
AC 3 Phase 3 Line Input EMC EMI Filter photo-1
US$ 35 - 47 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YBX
Model Number:
YX81G3-50A-S
Contact Supplier Request Quote Chat Now
Shenzhen Yanbixin Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name YBX
Model Number YX81G3-50A-S
Type EMI Filter
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10KHZ~30MHZ
Insertion Loss 60~90db
Input Impedance 50Ω

Three Phase Three Line Emi Filter

Product Description

Specification

Item

High Performance Three Phase Three Line Emi Filter

Model

Three Phase Three Line Emi Filter -YX81

Transfer Function

Low Pass

Package Type

Surface Mount

Nominal Center Frequency

10K-30MHZ

Insertion Loss

60~90dB

Input Impedance

50Ω

Rated Voltage

380V/440VAC



Rated Current

6A~50A

Environmental Temperature

40°C

Temperature Range

25 / 085 / 21

Operating Frequency

50/60HZ

Line to Line

1450VDC

Line to Ground

2250VDC

Maximum Leakage Current

115VAC/60HZ     1.2mA Max

MOQ

5pcs

Price

USD35~47/Meter

Lead Time

7~18 weekday





THree phase emi filter electrical schematic:

 AC 3 phase 3 line Input EMC EMI filter





Outline dimension drawing:



           AC 3 phase 3 line Input EMC EMI filter

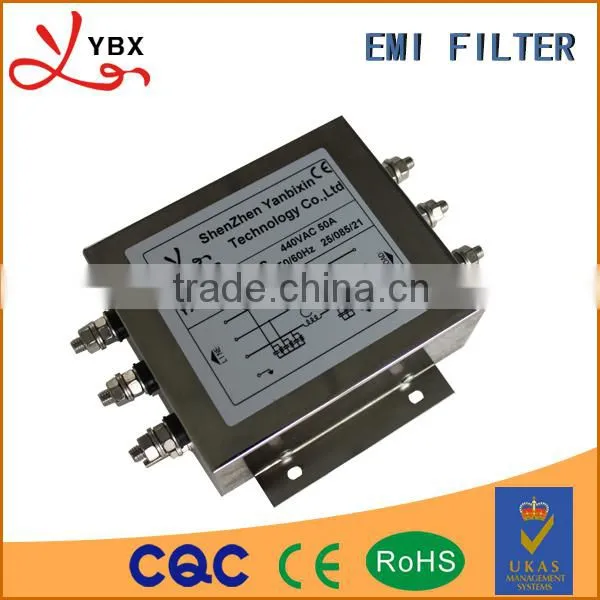

Three phase emi filter photo:

  AC 3 phase 3 line Input EMC EMI filter

The certificate:

 AC 3 phase 3 line Input EMC EMI filter



Packaging & Shipping



Packaging

High Performance Three Phase Three Line Emi Filter: CTN/6pcs

N/G W.: 15/17KG

Measures: 0.455*0.368*0.22m

  AC 3 phase 3 line Input EMC EMI filter

Shipment

---Shipping terms: DHL, UPS, FEDEX, TNT, EMS

---Port is Shenzhenor as requests.

Our Services

Sample

Sample Fee: Negotiate

Sample Time: 3~5 days



Payment

---Payment terms: Western Union, D/P, T/T,L/C

---Please remember to leave the correct contact information for delivery.

Company Information

1. Integrates development, manufacturing and sell in-house
2. Quality assurance and certification: ISO 9001 CE  ROHS
3. Yearly capacity: 600000-1000000 pcs
