High Performance Three Phase Double Stage RC Filter

High Performance Three Phase Double Stage RC Filter thumbnail-1
High Performance Three Phase Double Stage RC Filter photo-1
US$ 45 - 65 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YBX
Model Number:
High Performance Three Phase Double Stage Emi Filter -YX82H4
Contact Supplier Request Quote Chat Now
Shenzhen Yanbixin Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name YBX
Model Number High Performance Three Phase Double Stage Emi Filter -YX82H4
Type EMC Filter
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10KHZ~30MHZ
Insertion Loss Active Power Filter
Input Impedance 50Ω

High Performance Three Phase Double Stage Emi Filter

Product Description

Specification

Item

High Performance Three Phase Double Stage Emi Filter

Model

High Performance Three Phase Double Stage Emi Filter -YX82H4

Transfer Function

Low Pass

Package Type

Surface Mount

Nominal Center Frequency

10K-30MHZ

Insertion Loss

60~90dB

Input Impedance

50Ω

Rated Voltage

380V/440VAC



Rated Current

40A

Environmental Temperature

40°C

Temperature Range

25 / 085 / 21

Operating Frequency

50/60HZ

Line to Line

1450VDC

Line to Ground

2250VDC

Maximum Leakage Current

115VAC/60HZ     1.2mA Max

MOQ

50pcs

Price

USD45~65/Meter

Lead Time

7~18 weekday

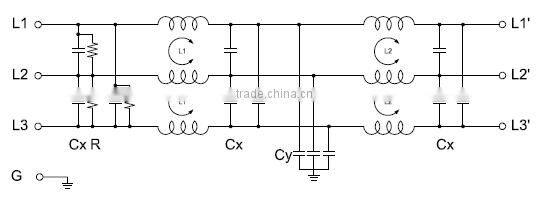

Electrical schematic

High Performance Three Phase Double Stage RC Filter

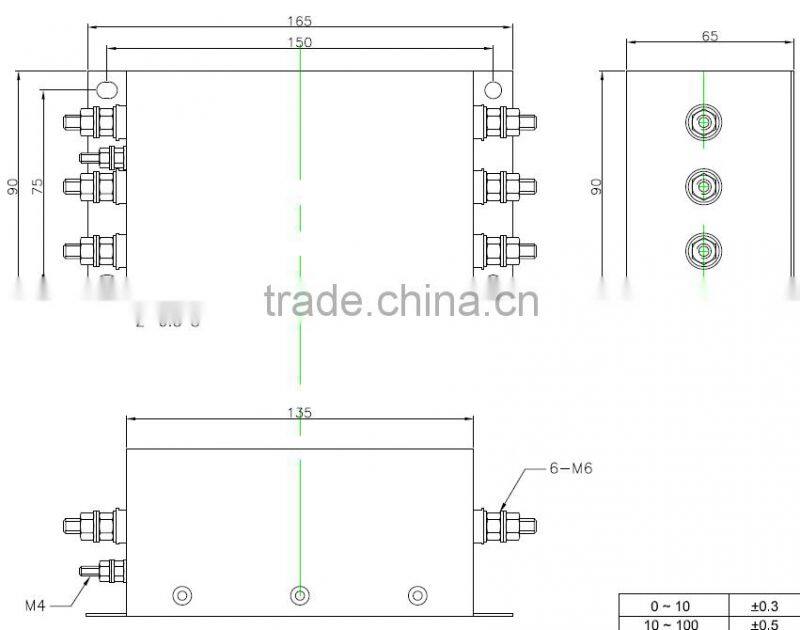

Outline dimension drawing

High Performance Three Phase Double Stage RC Filter

Pictures
 High Performance Three Phase Double Stage RC Filter

Certificate

High Performance Three Phase Double Stage RC Filter

Packaging & Shipping



Packaging

High Performance Three Phase Double Stage Emi Filter: CTN/1pcs

N/G W.: 3.3/3.8KG

Measures: 0.455*0.368*0.22m

High Performance Three Phase Double Stage RC Filter

Shipment

---Shipping terms: DHL, UPS, FEDEX, TNT, EMS

---Port is Shenzhenor as requests.

Our Services

Sample

Sample Fee: Negotiate

Sample Time: 3~5 days



Payment

---Payment terms: Western Union, D/P, T/T,L/C

---Please remember to leave the correct contact information for delivery.

Company Information

1. Integrates development, manufacturing and sell in-house
2. Quality assurance and certification: ISO 9001 CE CQC ROHS
3. Yearly capacity: 600000-1000000 pcs
