Single-phase EMC EMI Filter

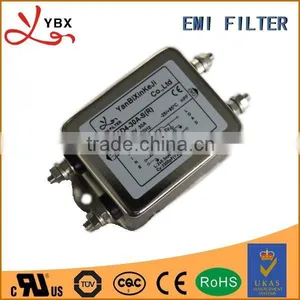

Single-phase EMC EMI Filter thumbnail-1
Single-phase EMC EMI Filter photo-1
US$ 5.5 - 7.3 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
YBX
Model Number:
YB11D4-30A-S(R)
Contact Supplier Request Quote Chat Now
Shenzhen Yanbixin Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name YBX
Model Number YB11D4-30A-S(R)
Type EMI Filter
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K~30MHZ
Insertion Loss 60db~90db
Input Impedance 50Ω

Single Phase General Purpose Power Supply Filte

Product Description

Specification

Item

High Performance Single Phase General Purpose Power Supply Filte

Model

High Performance Single Phase General Purpose Power Supply Filte -YB-D

Transfer Function

Low Pass

Package Type

Surface Mount

Nominal Center Frequency

10K-30MHZ

Insertion Loss

60~90dB

Input Impedance

50Ω

Rated Voltage

220VAC

Rated Current

1A~30A

Environmental Temperature

40°C

Temperature Range

25 / 085 / 21

Operating Frequency

50/60HZ

Line to Line

1450VDC

Line to Ground

2200VDC

Maximum Leakage Current

250VAC/60HZ    0.8mA Max

MOQ

100pcs

Price

USD5.5~7.3/Meter

Lead Time

5~15 weekday



 Electrical schematic:

       Single-phase EMC EMI filter



EMI EMC filter Outline  dimension drawing:

 Single-phase EMC EMI filterSingle-phase EMC EMI filter

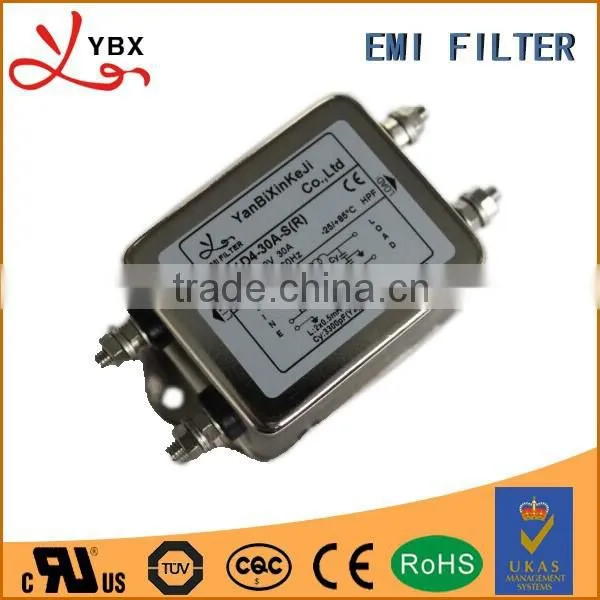

Photo:

 Single-phase EMC EMI filter

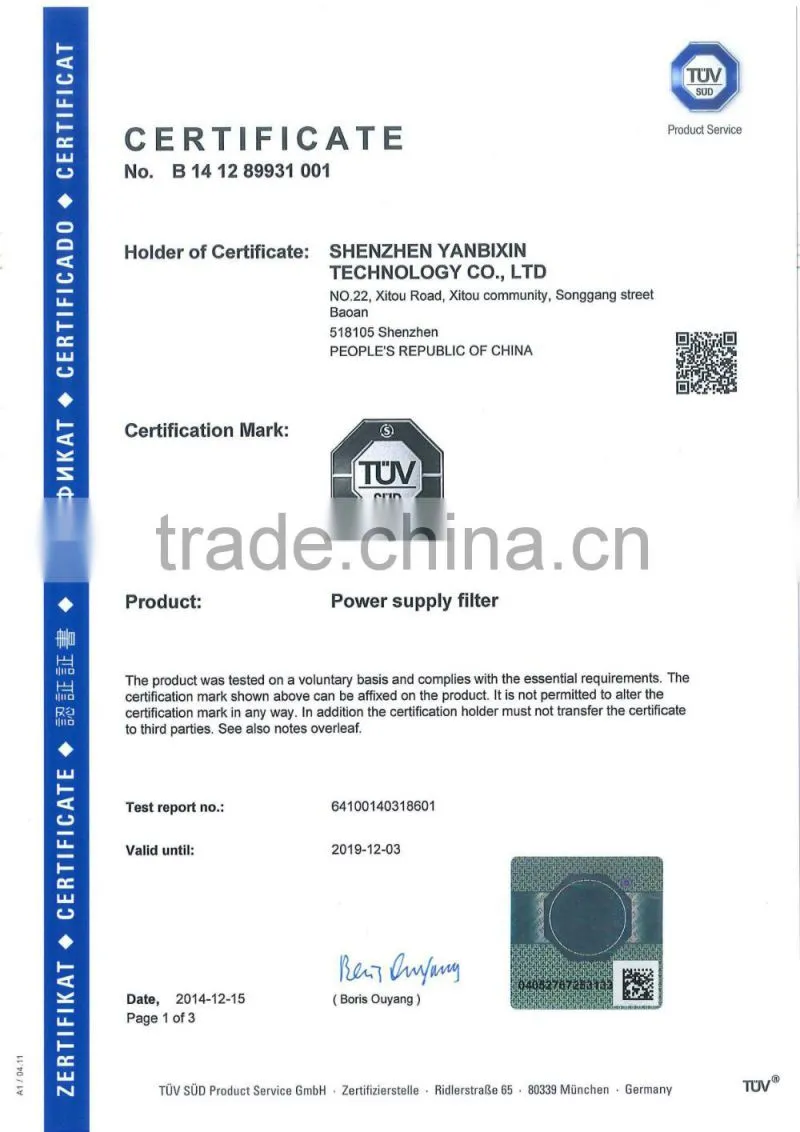

The certificate:

Single-phase EMC EMI filterSingle-phase EMC EMI filter

Single-phase EMC EMI filter

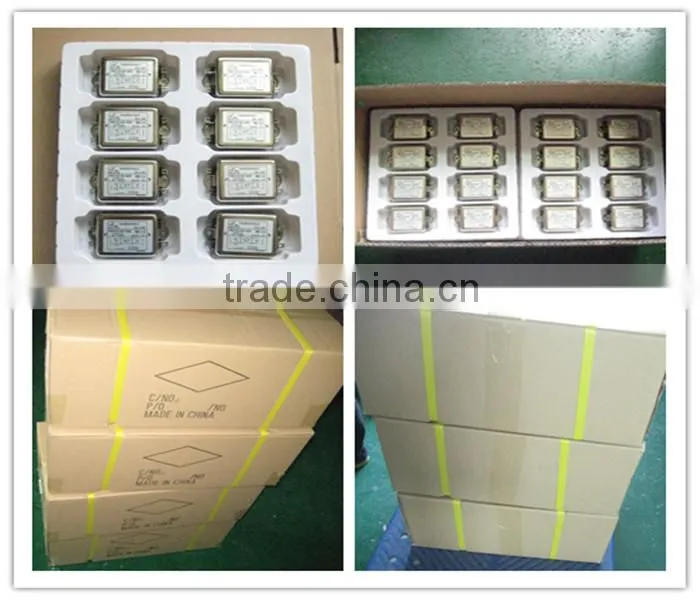

Packaging & Shipping



High Performance Single Phase General Purpose Power Supply Filte:80PCS/CTN

N/G W.: 12.8/13.6KG

Measures: 0.455*0.368*0.22CBM

  Single-phase EMC EMI filter

Shipment

---Shipping terms: DHL, UPS, FEDEX, TNT, EMS

---Port is Shenzhenor as requests.

Our Services

Sample

Sample Fee: Negotiate

Sample Time: 3~5 days



Payment

---Payment terms: Western Union, D/P, T/T,L/C

---Please remember to leave the correct contact information for delivery.

Company Information

1. Integrates development, manufacturing and sell in-house
2. Quality assurance and certification: ISO 9001 CUl TUV CE CQC ROHS
3. Yearly capacity: 600000-1000000 pcs
