Single-phase EMI Filter

Single-phase EMI Filter thumbnail-1
Single-phase EMI Filter photo-1
US$ 4.3 - 5.8 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
YBX
Model Number:
YB12D2-20A-Q(R)
Contact Supplier Request Quote Chat Now
Shenzhen Yanbixin Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name YBX
Model Number YB12D2-20A-Q(R)
Type EMI Filter
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K~30MHZ
Insertion Loss 60db~90db
Input Impedance 50Ω

China Wholesale General Purpose high proformance Filter

Product Description

Specification

Item

Noise Filter

Model

Noise Filter  -YB-D

Transfer Function

Low Pass

Package Type

Surface Mount

Nominal Center Frequency

10K-30MHZ

Insertion Loss

60~90dB

Input Impedance

50Ω

Rated Voltage

115V/250V

Rated Current

1~30A

Environmental Temperature

40°C

Temperature Range

25 / 085 / 21

Operating Frequency

50/60HZ

Line to Line

1450VDC

Line to Ground

2250VDC

Maximum Leakage Current

250VAC/60HZ     0.8mA Max

MOQ

100pcs

Price

USD4.3~5.8/Meter

Lead Time

5~15 weekday



Electrical schematic:

        Single-phase EMI filter

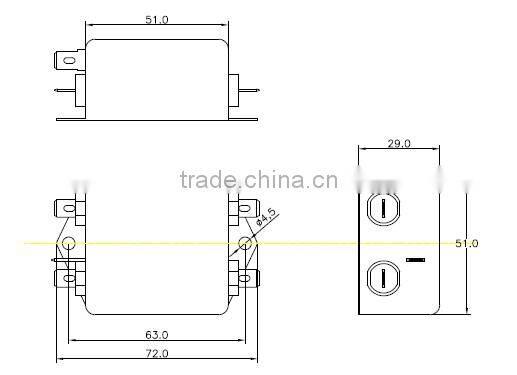

Outline  dimension drawing:

Single-phase EMI filter

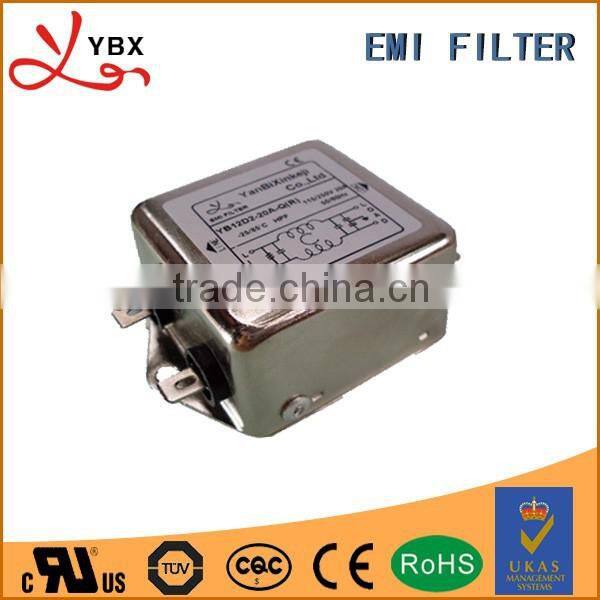

Photo:

Single-phase EMI filter





The certificate:

    Single-phase EMI filterSingle-phase EMI filterSingle-phase EMI filter



Packaging & Shipping



Packaging

 Filter: CTN/90pcs

N/G W.: 12/13.6KG

Measures:0.565*0.285*0.205m



Single-phase EMI filter

Shipment

---Shipping terms: DHL, UPS, FEDEX, TNT, EMS

---Port is Shenzhenor as requests.

Our Services

Sample

Sample Fee: Negotiate

Sample Time: 3~5 days



Payment

---Payment terms: Western Union, D/P, T/T,L/C

---Please remember to leave the correct contact information for delivery.

Company Information

1. Integrates development, manufacturing and sell in-house
2. Quality assurance and certification: ISO 9001  CUL TUV CE CQC ROHS
3. Yearly capacity: 600000-1000000 pcs
