Help CenterShandong Shengrun Fuel Tanker Trailer Dimensions Optional
Related Products
-
50000 Liters Fuel Tank Semi TrailerUS$ 30,000 - 48,500MOQ: 1 Set -
Shengrun Manufacturing Aluminum Tank Semi TrailerUS$ 29,800 - 47,900MOQ: 1 Set
-
Liquid Tanker Trailer, 3 Axles Tanker Truck TrailerUS$ 30,300 - 48,000MOQ: 1 Set
-
Shengrun Tri-axle Aluminium Alloy Semi TrailerUS$ 29,800 - 48,500MOQ: 1 Set
-
Trailer Manufacturer Fuel Tanker Semi TrailerUS$ 29,600 - 39,000MOQ: 1 Unit
fuel tanker trailer dimensions
fuel tanker trailer dimensions
Specifications
The aluminum trailer/Aluminum tank truck
1.Aluminum trailer body lighter, stronger, under the condition of the limit load,can carry more goods.
2.Aluminum alloy fuel tanks, lighter weight, and oil not easy to react, environmental protection, safe and efficien.
Tank Body | |
Shape |
Cylindrical |
Dimension |
13000m*2500mm*3850mm |
Tare weight |
7700Kg |
Total Volume(m3) |
50 m³ |
Tanker Body Material |
6mm aluminium alloy 5083 |
End Plate |
7mm aluminium alloy 5083 |
Manhole Cover |
stainless steel manhole ,diameter 500mm,two pieces |
Bottom Valve |
Aluminum API Pneumatic Bottom Valve(DN100), one pieces |
Discharging Valve |
aluminium alloy ball valve 4 inch ,2 pieces |
Compartments |
1 pieces |
Discharging Pipe |
4”Rubber tube ,two pieces , six meters length |
Cat Walk |
As requirement |
Chassis | |
Main Beams |
Carbon steel Q345 |
Axle |
3 axles FUWA 13TON |
Landing Gear |
JOST C200T |
King Pin |
3.5 inch bolts type kin pin |
Suspension |
Mechanical suspension (America system ) |
Leaf Spring |
90mm(width)/13mm(thickness)/10pieces |
Pneumatic Braking System |
Vabco emergency valve,four double and two single chamber, one pieces air tanker . |
Rim |
9.00-22.5 13 pieces |
Tire |
12.00R22.5 Triangle Brand |
ABS |
With |
Fire extinguisher |
Two pieces 4 KG , |
Painting |
Main Beam ,suspension 2 coats of final paint ,tanker body no painting . |
Accessories |
One standard tool box ,steel |

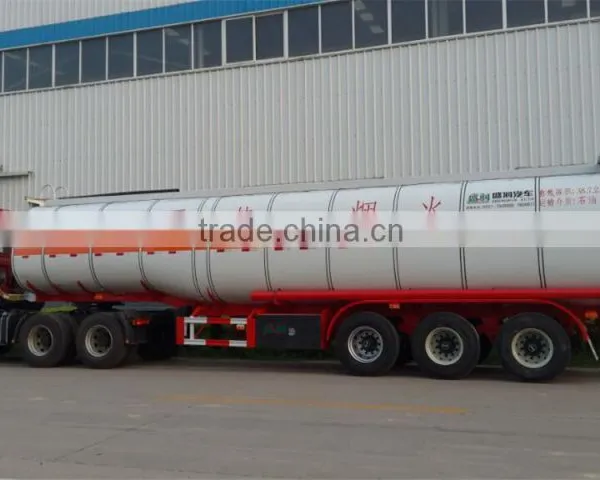

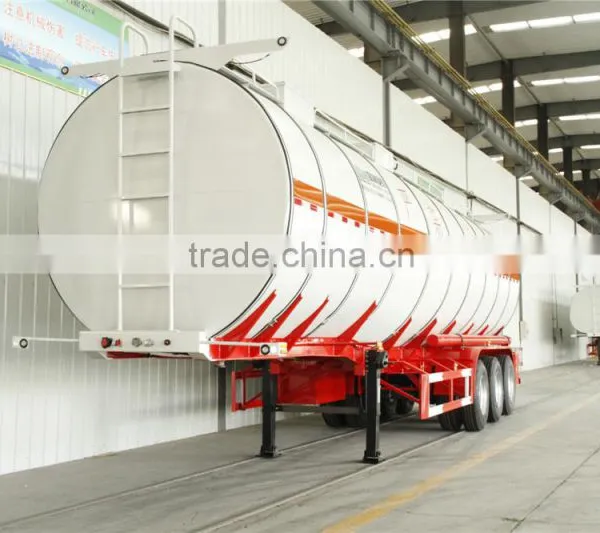

More details of fuel transport tanker

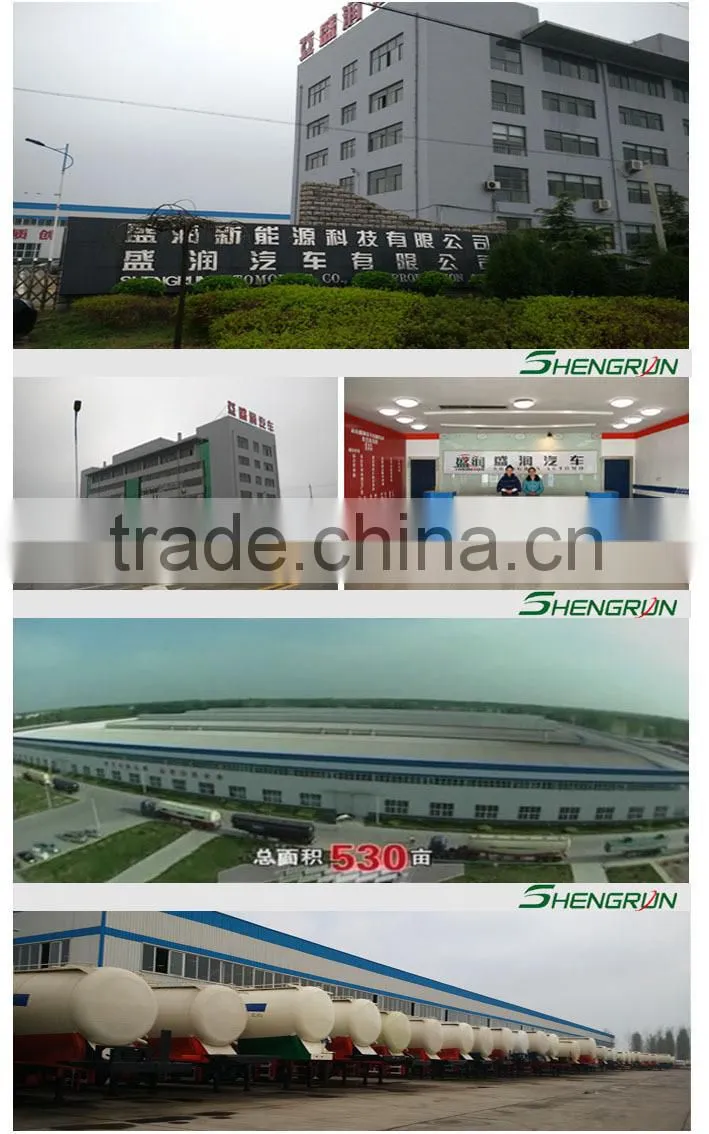

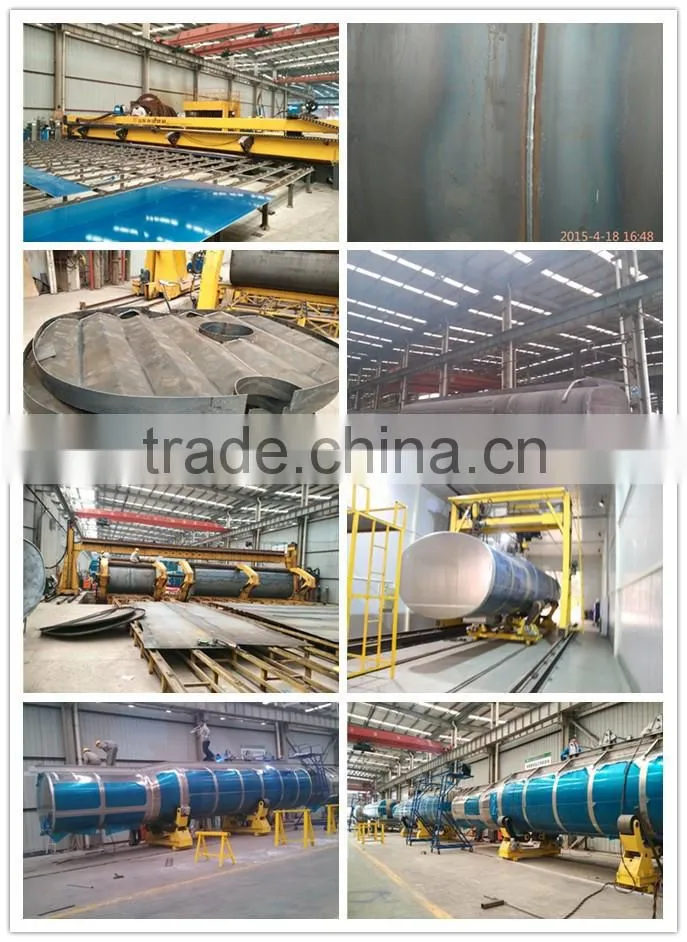

Workshop

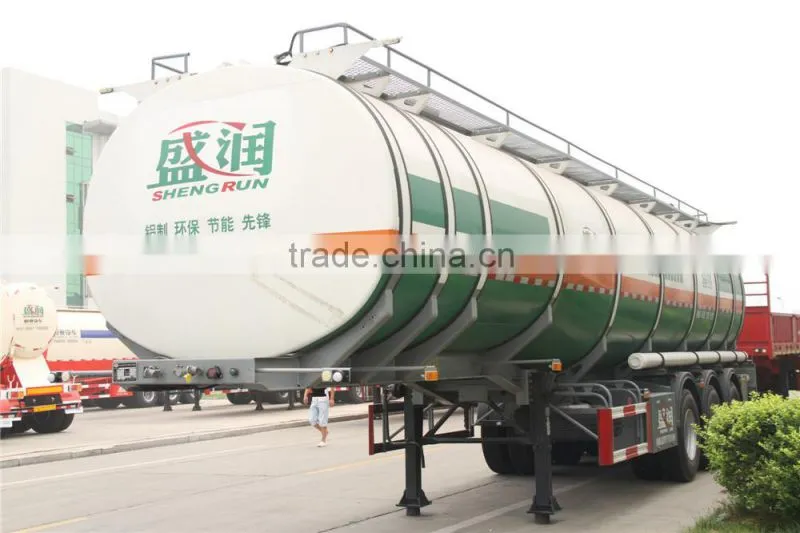

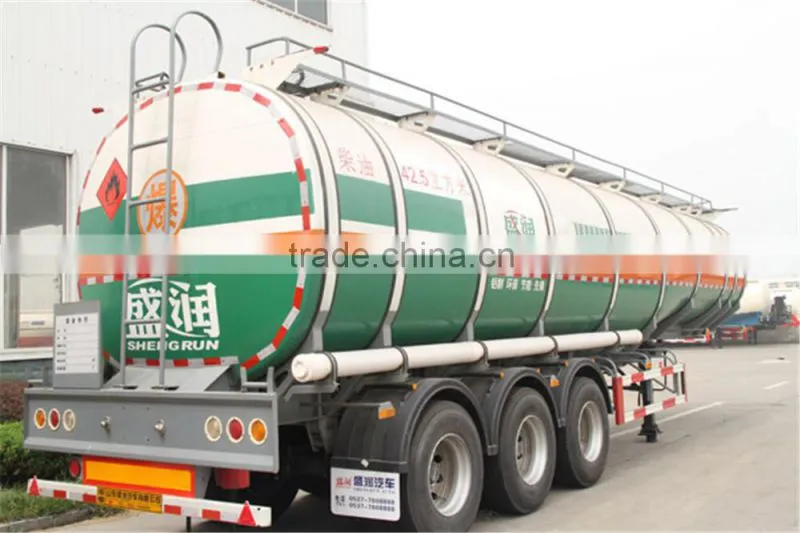

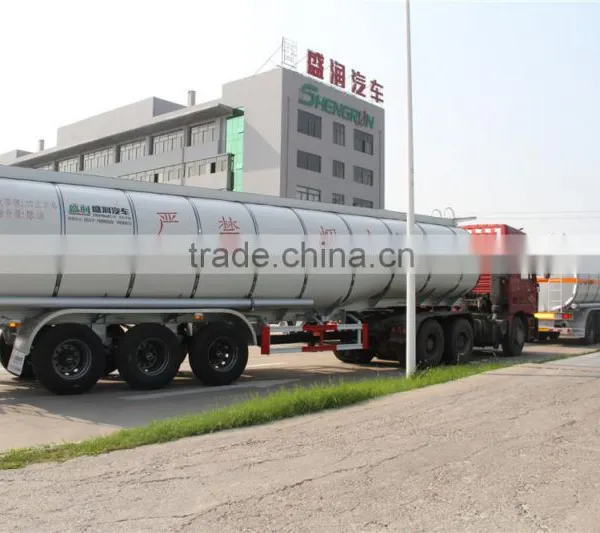

Fuel transport tanker
About us:
Shandong Shengrun Automobile Co., Ltd. is listed among appointed enterprises to produce and refit automobile approved by Development and Reform Commission of China(former Economy and Trade Commission of China), the first cooperation enterprise with its products listed in Public Notice on automobile refitting for management.
We are the full-size Modified Truck enterprise which integrates the design of product, scientific research developing, production and sale together, possessing subsidiary companies of automobile production, automobile trade and automobile fittings production, etc. Our leading products include "Shengrun" brand semi-trailers, tipper, fuel tanker, particle material tanker, bulk cement tanker, concrete mixer truck, wrecker trucks, LNG, CNG, and other special vehicles.
Our company covers an area of 730,000 square meters, total assets 460 million RMB. We have more than 800 workers; including 128 persons with senior technical title. We have top-notch numerical control cutting machine, automatic welding machine, large-size bending machine and board press machine in China, tanker body automatic welding tipper, the greatest entire-car-passing type shot blasting machine in Shandong province, 21m length super spray painting and baking varnish room, Switzerland four-wheel ATD-GPS and 400 sets test equipment which are advanced technology and Hi-Tech equipment. One hundred kinds of truck semi-trailers and tank trailers have passed our National Technical Appraisal and up to top class level in China, we have passed many certificates, such as ISO9001: 2008, CCC etc.
Persisting in "the quality will cast on the brand, the good faith building future" as the enterprise objective, the company's staff devote to the promotion of enterprise core competitive power, pursuing the sustainable development, the making strong trend brand, in order to serve all the clients.
Our certificates

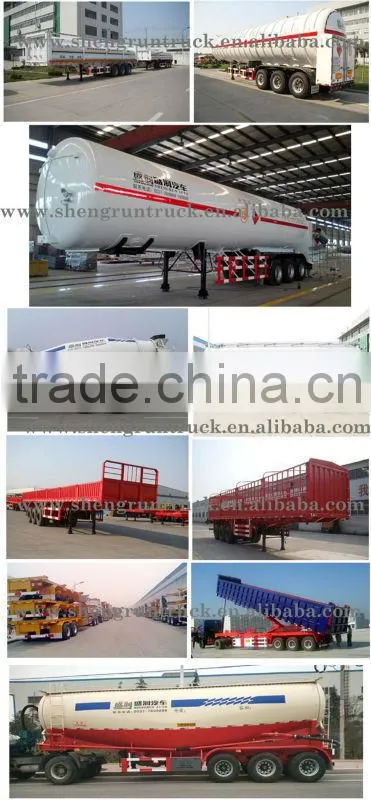

Other products
Advantage of choose us
. Focused on special automobiles' design and production for nearly 10 years.
. Obtained the ISO9001 international quality management system certification.
. Achieved foreign trade qualification granted by Chinese government.
. Manufacturer direct sale,quality guaranteed, low price.
. Europe Emission Standard 2/3.
. Except standard products, also customize products according to your requirements.
You are always welcome to come to visit our factory, we will pick you up from the airport!
If you are interested in fuel transport tanker , pls contact me:
Kelly Zhen (Sales Manager)
Company: Shandong Shengrun Automoblie Co., Ltd
Add: (No. 1, Tongya Road) Quanpu Industrial Park Of Liangshan County, Jining, Shandong, China (Mainland)
Tel:0086-537-7608808
Fax:0086-7608889/7608808
Mobile:0086-13181335580
Skype:live:shengrun-kelly
QQ:654037126
Trade Manager:cn1513226460
