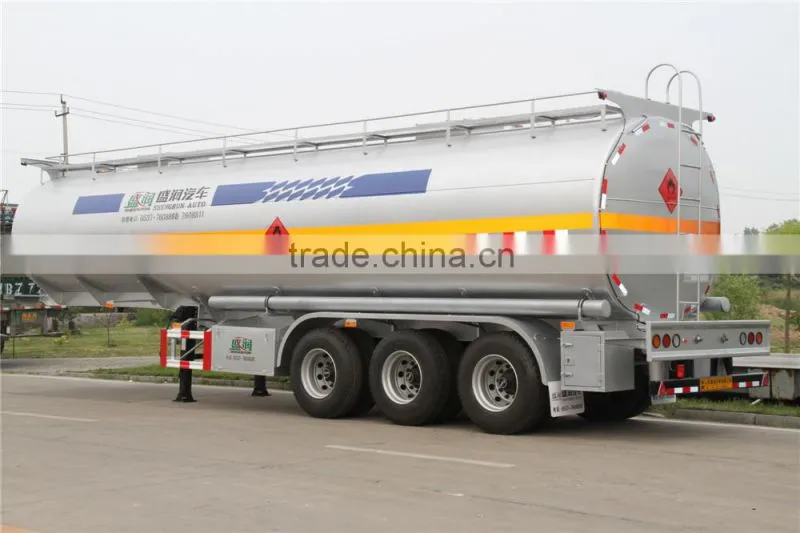

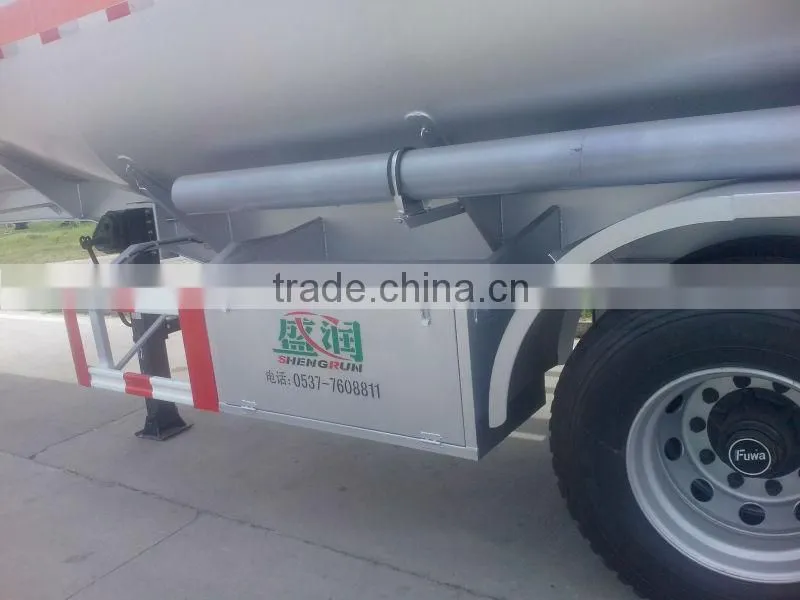

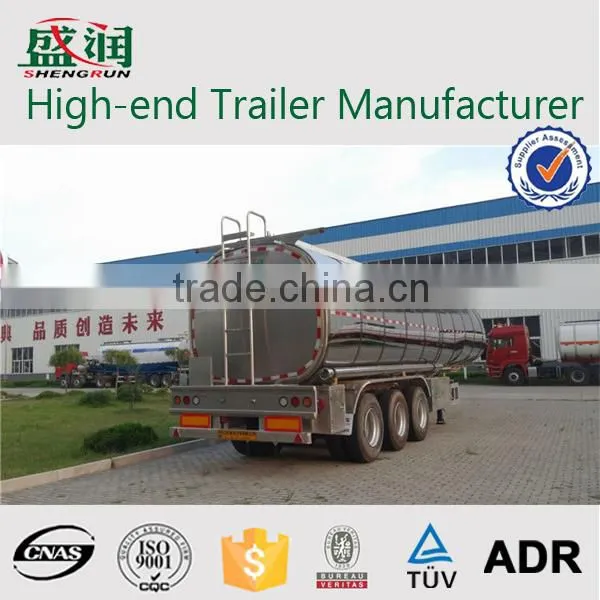

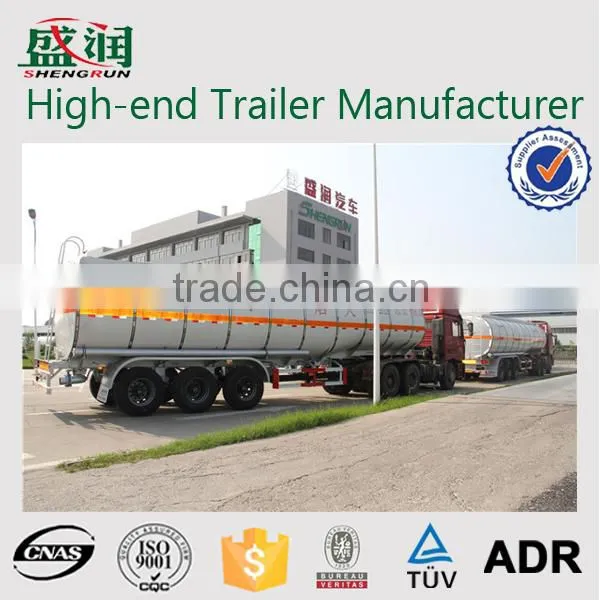

Semi trailer factory truck trailer/semi trailer/fuel tanker trailer
Specifications |
|
||
Main Dimensions |
|
||
Manufacturer |
Shandong Shengrun Automoblie Co., Ltd |
|
|
Model Nunber |
SKW9400GYYA/SKW9402GYYA/SKW9401GLY /SKW9402GLY/SKW9403GLY/SKW9403GYS/ SKW9404GYS/SKW9400FWA/SKW9401GFWA/ SKW9403GRY |
||
Tank Body |
ShapeRound or Square |
||
Tare Weight |
(Semi Trailer)About 8T-12T |
||
Total Volume(m3) |
25m³ -60 m³ |
||
Dimension |
12000mm×2490mm×3990mm ( The exact size depends on the final design.) |
||
End Plate |
7mm/5083 |
|
|
Tanker Body |
6mm/ 5083 |
|
|
Compartment |
1 to 9 optional |
|
|
Manhole Cover |
Aluminum 500mm(Diameter) |
|
|
Discharging Valve |
Diameter is 3 or 4 inch (Material: Aluminum) |
|
|
Discharging Pipe |
3 or 4 inch rubber hose, 2pcs, 6m/each |
|
|
Cat Walk |
With (Common model or special design) |
|
|
Chassis |
|
||
Axle |

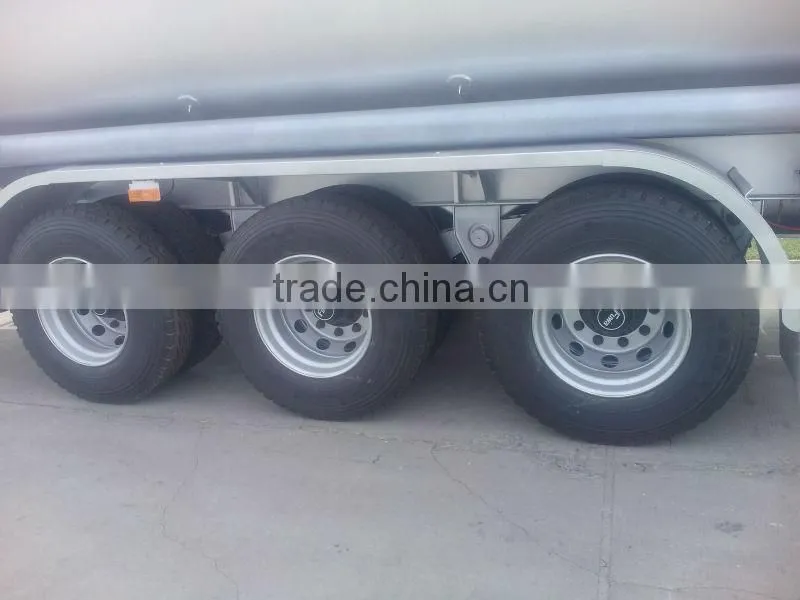

2 or 3 axles, 12T/13T/16T, BPW/FUWA/HUAJING brand |
|
|
BLanding Gear |
JOST (D200T) or China Brand 28Tons |
|
|
King Pin |
JOST 2.00 or 3.5 inch bolt-in king pin |
|
|
Suspension |
Mechanical suspension/Germany or America type /Air Suspension |
|
|
Leaf Spring |
90(W)mm×13(Thickness)mm×10 Layers or 100mm×12mm×12 layers |
|
|
Pneumatic Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber (TKL brand); Two pieces of 45L air tanks |
|
|
Rim |
9.00-22.5/8.00-20/8.5-20 China Brand |
|
|
Tire |
12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
|
|

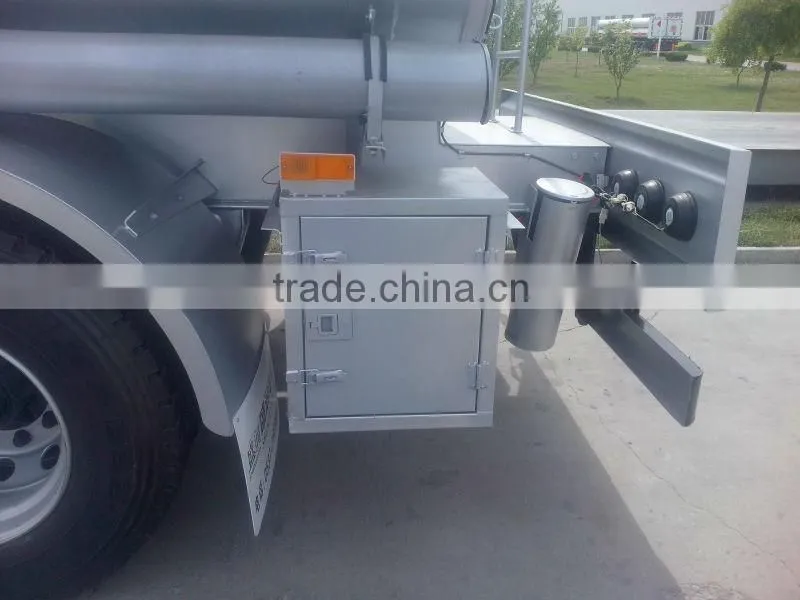

Tool box |
1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.) |
|
|
ABS |
Optional |
|
|
Painting |
Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats. |
|
|
Shipping Terms |
By bulk cargo carrier, RORO or 40HQ Containers |
||
Shangdong Shengrun Automobile Co., Ltd. is listed among appointed enterprises to produce and refit automobile approved by Development and Reform Commission of China(former Economy and Trade Commission of China), the first cooperation enterprise with its products listed in Public Notice on automobile refitting for management.
We are the full-size Modified Truck enterprise which integrates the design of product, scientific research developing, production and sale together, possessing subsidiary companies of automobile production, automobile trade and automobile fittings production, etc. Our leading products include "Shengrun" brand semi-trailers, tipper, fuel tanker, particle material tanker, bulk cement tanker, concrete mixer truck, wrecker trucks, LNG, CNG, and other special vehicles.

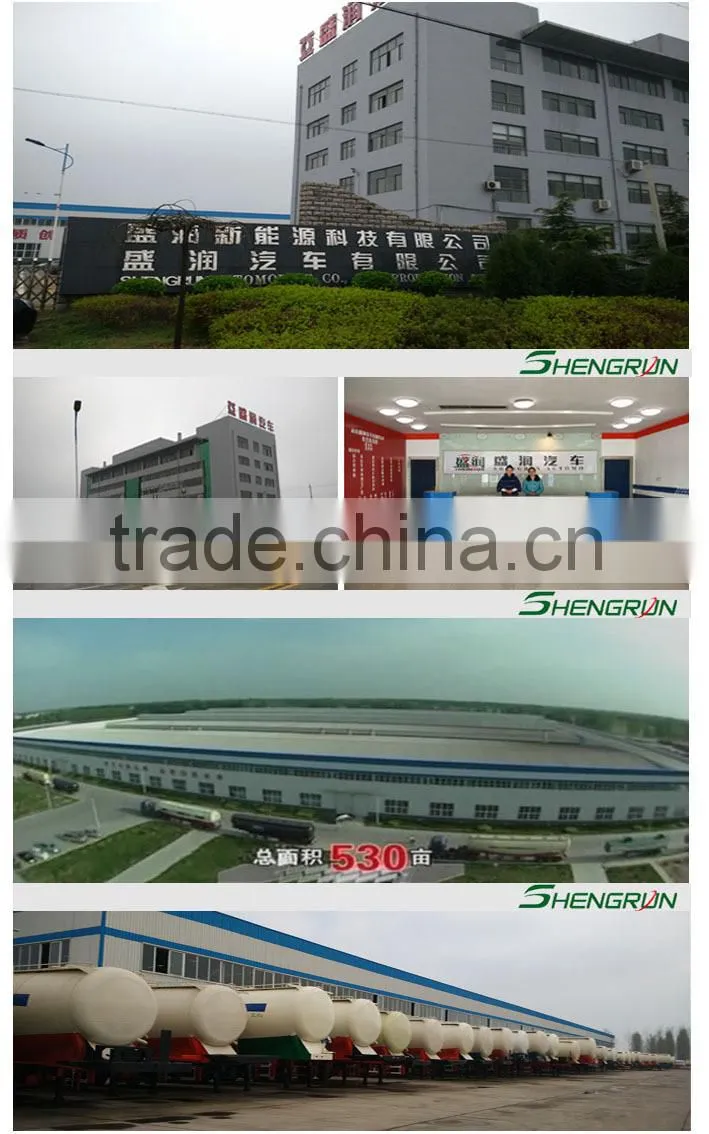

Our company covers an area of 730,000 square meters, total assets 460 million RMB. We have more than 800 workers; including 128 persons with senior technical title. We have top-notch numerical control cutting machine, automatic welding machine, large-size bending machine and board press machine in China, tanker body automatic welding tipper, the greatest entire-car-passing type shot blasting machine in Shandong province, 21m length super spray painting and baking varnish room, Switzerland four-wheel ATD-GPS and 400 sets test equipment which are advanced technology and Hi-Tech equipment. One hundred kinds of truck semi-trailers and tank trailers have passed our National Technical Appraisal and up to top class level in China, we have passed many certificates, such as ISO9001: 2008, CCC etc.
Persisting in "the quality will cast on the brand, the good faith building future" as the enterprise objective, the company's staff devote to the promotion of enterprise core competitive power, pursuing the sustainable development, the making strong trend brand, in order to serve all the clients.
Our machines:

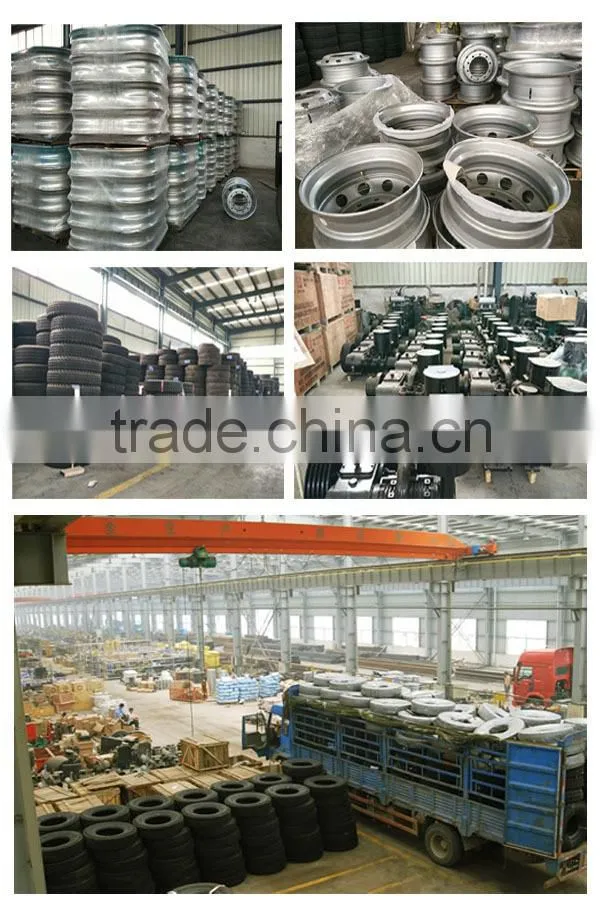

Our warehouse:

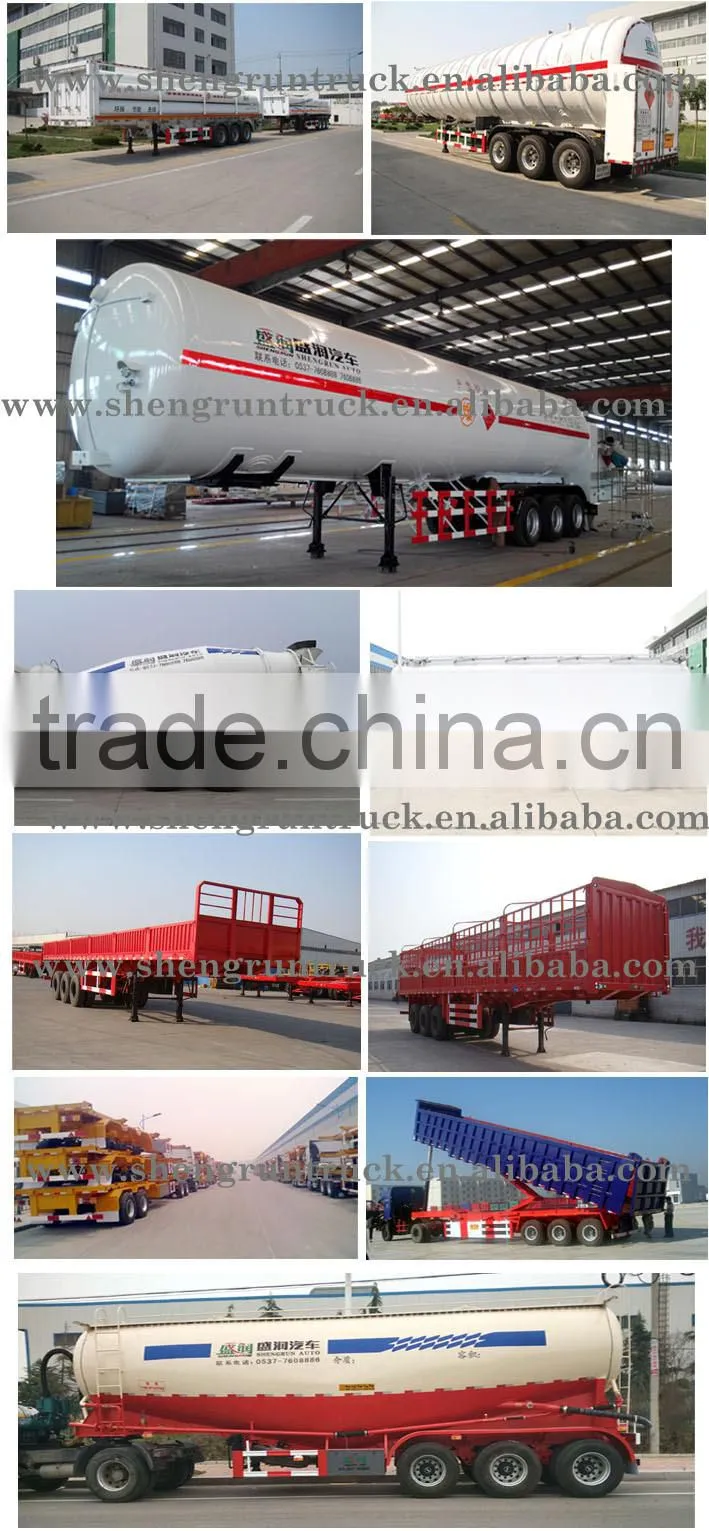

Shengrun main products are:
-tank semi-trailer,
-bulk cement tank semi-trailer,
-aluminium alloy tanker trailer,
-container (flatbed)transport trailer,
-equipment trailer (low bed trailer),
-rear/side dump semi-trailer,
-timber (wood) transport semi- trailer,
-car transport trailer, low loader,
-hydraulic modular trailer,
-3 lines 6 axles,
-multi-axle hydraulic low bed,
- blade transport trailer, dump truck,
-tipper truck, tractor camion etc.
More details about Trailer Manufacturer fuel tanker semi trailer ,Pls feel free to contact me!
Tom Chen
Skype:tomchen026@
Email:tomchen026@
Tele:+86 18366719474
whatsApp:+86 18366719474
wechat:Pingchangxin026
