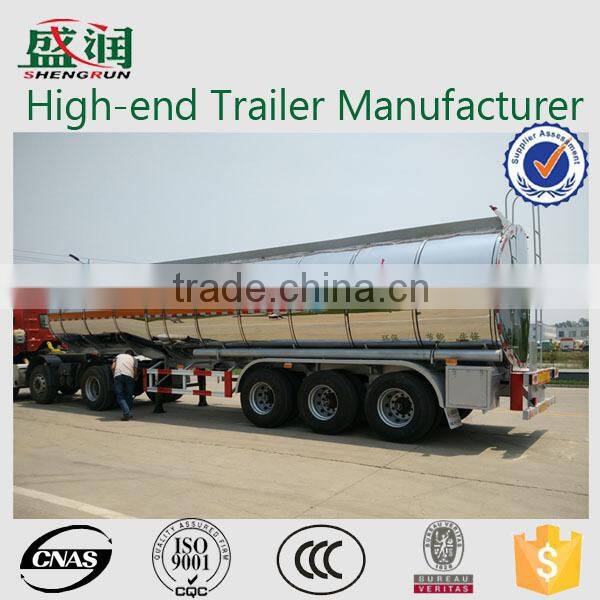

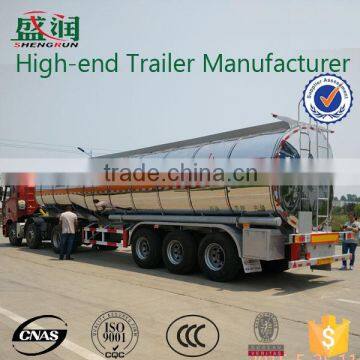

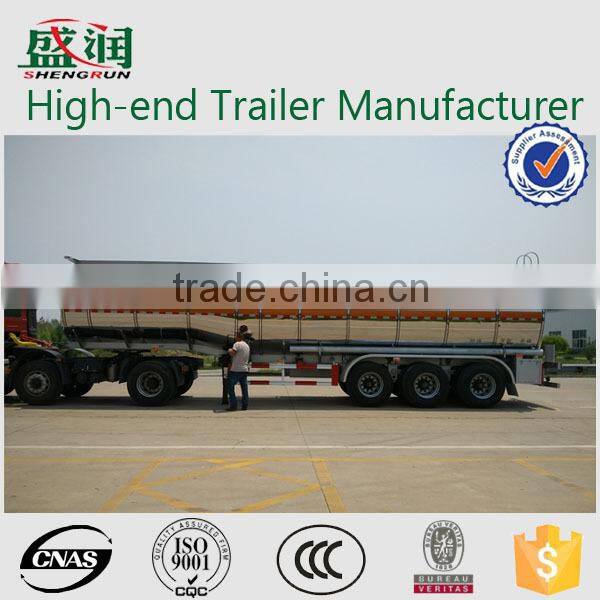

3 axles aluminium alloy fuel tanker trailer,fuel tanker semi trailer,feeds transport semi trailer
Tank Body | |
Shape |
Cylindrical |
Dimension |
12990*2500*3800 mm |
Tare weight |
7700kg |
Total Volume(m3) |
50 m³ |
Tanker Body Material |
6mm aluminium alloy 5083 |
End Plate |
7mm aluminium alloy 5083 |
Manhole Cover |
Ero-standard manhole ,diameter 500mm,two pieces |
Bottom Valve |
Aluminum API Pneumatic Bottom Valve(DN100), one piece |
Discharging Valve |
aluminium alloy ball valve 4 inch ,2 pieces |
Compartments |
1 piece |
Discharging Pipe |
4”Rubber tube ,two pieces , six meters length |
Cat Walk |
As requirement |
Chassis | |
Main Beams |
Aluminium Alloy |
Axle |
3 axles FUWA 13TON |
Landing Gear |
JOST D200T or China Brand 28T |
King Pin |
2.0 or 3.5 inch welded in or bolt in |
Suspension |
Mechanical suspension or Air suspention |
Leaf Spring |
90mm(width)/13mm(thickness)/10pieces |
Pneumatic Braking System |
Vabco emergency valve,four double and two single chamber, one pieces air tanker . |
Rim |
9.00-22.5 13 pieces |
Tire |
12.00R22.5 Triangle Brand |
ABS |
With |
Fire extinguisher |
Two pieces 4 KG , |
Painting |
Main Beam ,suspension 2 coats of final paint ,tanker body no painting . |
Accessories |
One standard tool box ,Aluminium Alloy |
Shandong Shengrun Automobile Co., Ltd. is listed among appointed enterprises to produce and refit automobile approved by Development and Reform Commission of China(former Economy and Trade Commission of China), the first cooperation enterprise with its products listed in Public Notice on automobile refitting for management.
We are the full-size Modified Truck enterprise which integrates the design of product, scientific research developing, production and sale together, possessing subsidiary companies of automobile production, automobile trade and automobile fittings production, etc. Our leading products include "Shengrun" brand semi-trailers, tipper, fuel tanker, particle material tanker, bulk cement tanker, concrete mixer truck, wrecker trucks, LNG, CNG, and other special vehicles.
Our company covers an area of 730,000 square meters, total assets 460 million RMB. We have more than 800 workers; including 128 persons with senior technical title. We have top-notch numerical control cutting machine, automatic welding machine, large-size bending machine and board press machine in China, tanker body automatic welding tipper, the greatest entire-car-passing type shot blasting machine in Shandong province, 21m length super spray painting and baking varnish room, Switzerland four-wheel ATD-GPS and 400 sets test equipment which are advanced technology and Hi-Tech equipment. One hundred kinds of truck semi-trailers and tank trailers have passed our National Technical Appraisal and up to top class level in China, we have passed many certificates, such as ISO9001: 2008, CCC etc.
Persisting in "the quality will cast on the brand, the good faith building future" as the enterprise objective, the company's staff devote to the promotion of enterprise core competitive power, pursuing the sustainable development, the making strong trend brand, in order to serve all the clients.
Our company:
FAQ of Aluminum fuel tanks trailers for bulk diesle fuel :
1. How do you transport the semi trailers?
We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension, tyre, are purchased centralized by our group, every node will be inspected strictly. Moreover, advanced equipment rather than only worker is been applied
during the whole producing process to ensure the welding quality.
Any question can call me or e-mail me directly.
Tom Chen
Skype:tomchen026@
Email:tomchen026@
Tele:+86 18366719474
whatsApp:+86 18366719474
wechat:Pingchangxin026
