Specifications
0. name: anti wear plate1.Grade:Cr-Mo alloy
2.Standards:GB/T 3089-1982
3.Diameter:100mm
4.Thickness:3 - 30 mm

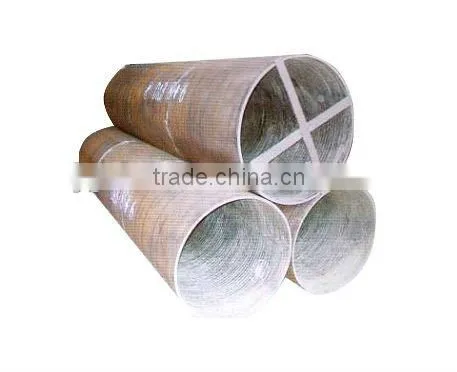

RK wear-resistant pipe
| Name | RK wear-resistant pipe |
| Brand | RK |
| Color | brown |
| Diameter | ≥80mm(can be customized) |
| Thickness of wear resistant layer | as customer's require |
| Thickness of pipe wall | 5-30mm |
| Length | can be customized |
| Hardness | HRC57-62 |
| Standard | DIN,GB |
| Certificates | ISO9001:2000 |
| Specifications (base layer+wear resistant layer) |
5+3,6+3,8+3,5+4,6+4,8+4,10+4,6+5,8+5,10+5, 15+5,20+5,6+6,8+6,10+6,20+6,8+8,10+8,10+10, 15+10,20+10 |
| Model number | steel plate Q235 |
| Grade | first class |
| Applications | concrete industry,metallurgy,fan industry,coal industry,mining machinery,construction machinery,etc. |
| Payment terms | L/C,TT,D/P,Western union |
| Delivery time | 15 days after receipt of L/C or advanced payment |
| Trade terms | FOB,CIF,EXW,etc |
| Port | shanghai |
The hardness of wear resistant layer is up to HRC 63 degrees, which is equivalent to the tungsten-cobalt. The wearability of it is 20 times better than carbon steel pipe and it is much superior to corundum grinding wheel. Presently, dozens of thermal power plants demonstrated that dual metal wear resistant steel pipe has high wearability and strong resistance to fluid impact. In Elbow wears fastest in primary duct, the wear resistance elbow is 5 times better than casted thick wall wear resistant elbow. In practice, composite layer of wear resistant steel pipe has no significant wear or shed after 2 years. In the same specifications and unit length of a pipeline, the weight of dual metal wear resistant steel pipe is only 1/2 as heavy as casted wear resistant steel and 2/5 of casted stone pipe or lanthanon wear resistant steel pipe. In general, it makes per meter project cost lower, cost reduced ranging from 30% to 40%. It can be applied under the circumstance of erosion and high temperature and the price of it is only a fraction of stainless steel pipe and nickel titanium pipe.
