Plasma Hardfacing Machine of Wear Resisting PlateUS$ 25,000 - 62,000MOQ: 1 Set
Specifications

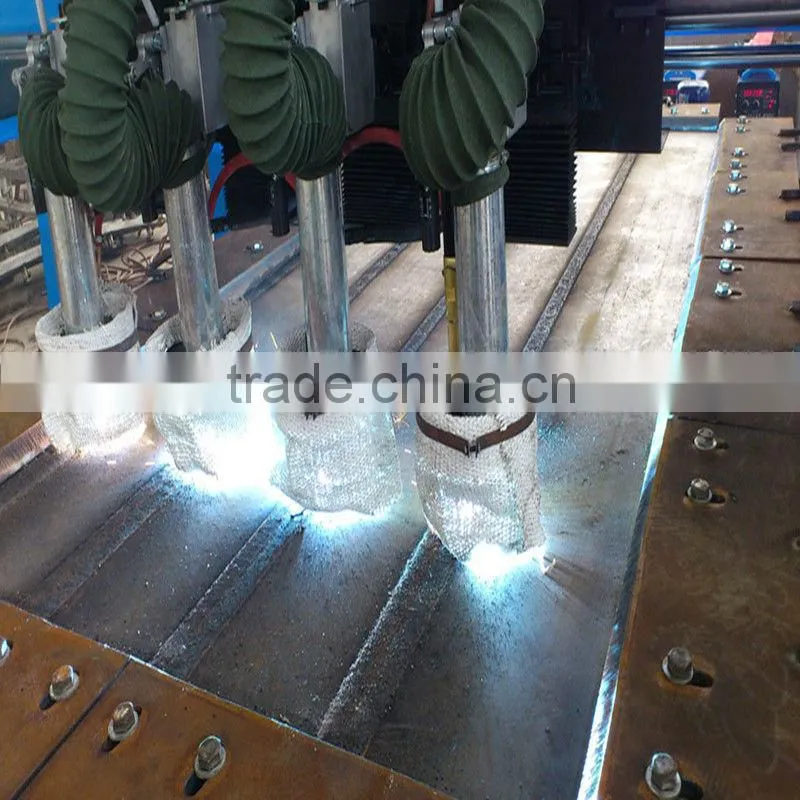

1.Equip four guns2.Smooth Wire-feeding
3.Good water-cooling effect
4.Convenient operating system
5.Welding irregular shape
Official Website:
Characteristics of Equipment
1.Choosing domestic or imported medicine core diameter of φ3.2mm to φ1.6, self shielded flux cored wire or solid core welding wire to produce various specifications of wearresistant composite plates, surfaces are plate after welding and equipments are capable of continuously operating for a long time
2.We use precision parts to produce the equipment , so the machine is able to produce wear resistant composite steel plate of ultrathin type 2+2. Besides, specifications cover all resistant composite steel plate,such as 2+2,5+2,6+4,6+6,8+8,10+10,20+30 and so on. Surfaces of abrasion resistant plates are plate and the flatness is quite as ordinary steel plate.
3.Hanging head is able to telescope up and down,slide in the gantry arm and automatically arrange beads during the process of welding.
Model |
RK-8-630 |
||||
|
Output
|
No-load voltage |
85-91 |
Input
|
Power supply voltage |
380 |
Working voltage |
24-44 |
Phase number |
3 |
||
Rated welding current |
230 |
Frequency rate |
50 |
||
Welding current adjustment range |
60-630 |
Rated input current |
50-55 |
||
|
Rated load duration rate |
1000 |
Maximum input capacity |
36 |
||
Efficiency |
95 |
Total power factor |
more than 0.95 |
||
Insulation level |
H |
Weight |
55 |
||
Dimensions (length * width * height)mm |
620*560*350 |
||||
Size of overlaying welding wear resistant plate: 1500×3000mm
Overall dimension of overlaying welding machine: 1880×3940mm
Total power of motor: about 10KW
Weight of hard-facing machine: about 2T
Method: automatic
The machine is open arc surfacing wielding self-protection,no noise,convenient operation, stable, and the probability of failure is close to zero.
