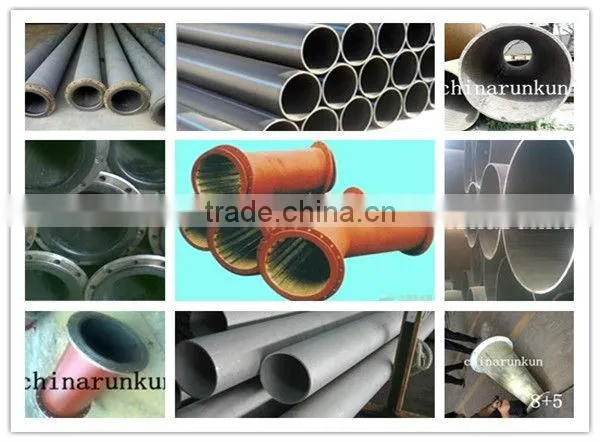

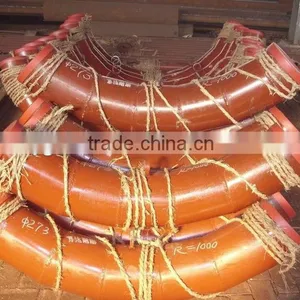

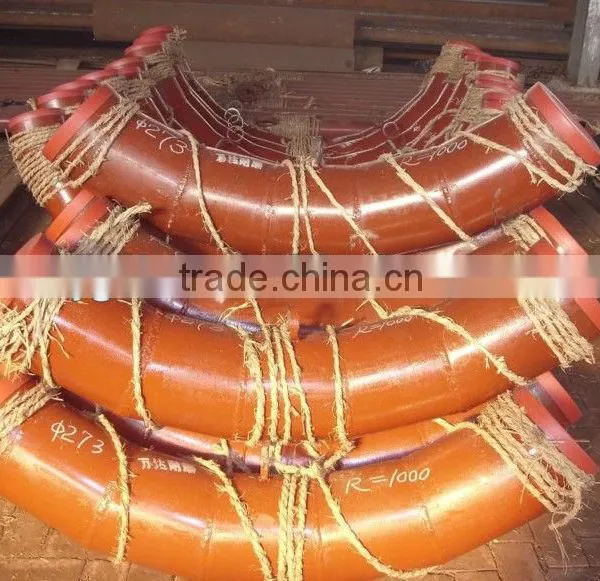

Hot Rolled Wear Resistant Welded Steel Elbow
US$ 160 - 500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard:
Grade:
Thickness:
3, 500
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Rolled Large Diameter Wear Resistant Concrete PipeUS$ 160 - 500MOQ: 10 Square Meters -
Bimetal Wear-resisting Pipe for Wear IndustryUS$ 160 - 500MOQ: 10 Square Meters
-
Wear Resistant Alloy Steel Pipe RK200US$ 160 - 500MOQ: 10 Square Meters
-
Wear Resistant Chromed Steel TubesUS$ 160 - 500MOQ: 10 Square Meters
-
Welded Seamless Steel PipeUS$ 160 - 500MOQ: 1 Piece
Thickness
3, 500
Section Shape
Round
Outer Diameter
100 - 20000 mm
Place of Origin
Jiangsu, China
Secondary Or Not
Non-secondary
Application
Other, Conceret Pipe
Technique
Hot Rolled
Certification
Other, ISO9000
Surface Treatment
Other, Welding
Special Pipe
Thick Wall Pipe
Alloy Or Not
Is Alloy
Specifications
1. Decreasing maintenance cost of equipments2. Reducing energy consumption of mill equipment
3. Improving operation rate
Abrasion resistant steel pipe
RK-200 abrasion resistant pipe not only has good wearable performance, temperature resistant, impact resistant but also has good elasticity. The pipe has very good weldability and it is easy to install; particularly suitable for any use under extreme temperature. For instance, it can be applied to transport hard materials in electrical, metallurgy, coal and cement industry, etc. In comparison to the regular pipe, our product is more wearable, more durable and more economic.
Comparsion Chart
| Grade | Mild pipe | SLS600 Induction hardened steel | Ultra-met steel | Ceramite cast steel |
| Hardness | 120-150BHN | 600 BHN | >600BHN | >8Mohs |
| Max temperature(°F) | 450 | 1250 | 2195 | |
| Impact resistance | Good | Average | Marginal | Poor |
| Abrasion resistance | Poor | Good | Very good | Excellent |
| Std size(OD) | Unlimited | 3''to26' | 10''to40'' | 4''to24'' |
| Handling&Installation | Excellent | Very good | Very good | Heavier |
| Fabrication | Unlimited | Some limitaions | Some limitaions | Some limitaions |
| Emergency repair | Easily patched | Easily patched | Easily patched | Easily patched |
| Initial cost | 3-8 times above mild steel | 6-10 times above mild steel | 4-8 times above mild steel | |
| Life expectancy | Up to 6 times mild steel | Up to 8 times mild steel | Up to 15 times mild steel | |
| Advantages |
Low cost Readily avaliable |
A good combination of abrasion&impact resistance | Good wear resistant,moderate temperaure resistance | High wear resistant,good therma shock resistant |
| Disadvantages | Poor abrasion resistant | No corrosion resistance | Limited length&diamter | Heavier |
Specifications
| Name | Anti abrasion pipe |
| Brand | RK |
| Color | brown |
| Diameter | ≥80mm(can be customized) |
| Thickness of wear resistant layer | as customer's require |
| Thickness of pipe wall | 5-30mm |
| Length | can be customized |
| Hardness | HRC57-62 |
| Standard | DIN,GB |
| Certificates | ISO9001:2000 |
| Specifications (base layer+wear resistant layer) |
5+3,6+3,8+3,5+4,6+4,8+4,10+4,6+5,8+5,10+5, 15+5,20+5,6+6,8+6,10+6,20+6,8+8,10+8,10+10, 15+10,20+10 |
| Model number | steel plate Q235 |
| Grade | first class |
| Applications | concrete industry,metallurgy,fan industry,coal industry,mining machinery,construction machinery,etc. |
| Payment terms | L/C,TT,D/P,Western union |
| Delivery time | 15 days after receipt of L/C or advanced payment |
| Trade terms | FOB,CIF,EXW,etc |
| Port | shanghai |
Processibility: welding, cutting, curling, punching.
