Industry air heater/Hot air generator/industrial heater3-500KW, CE approved
Continuous workability
Durable performance

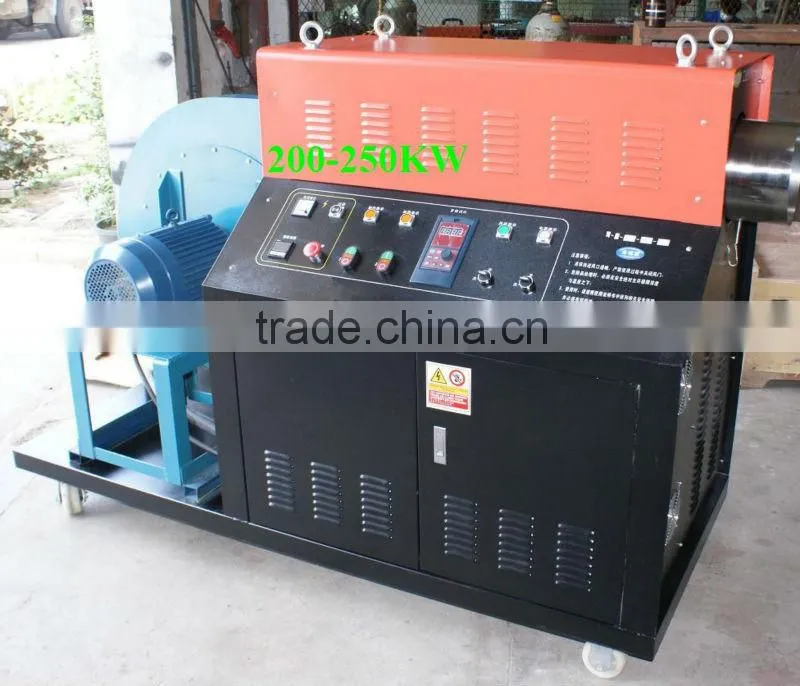

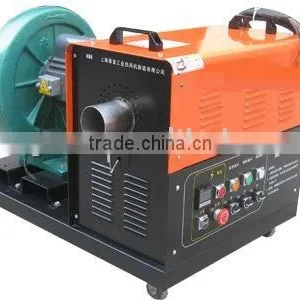

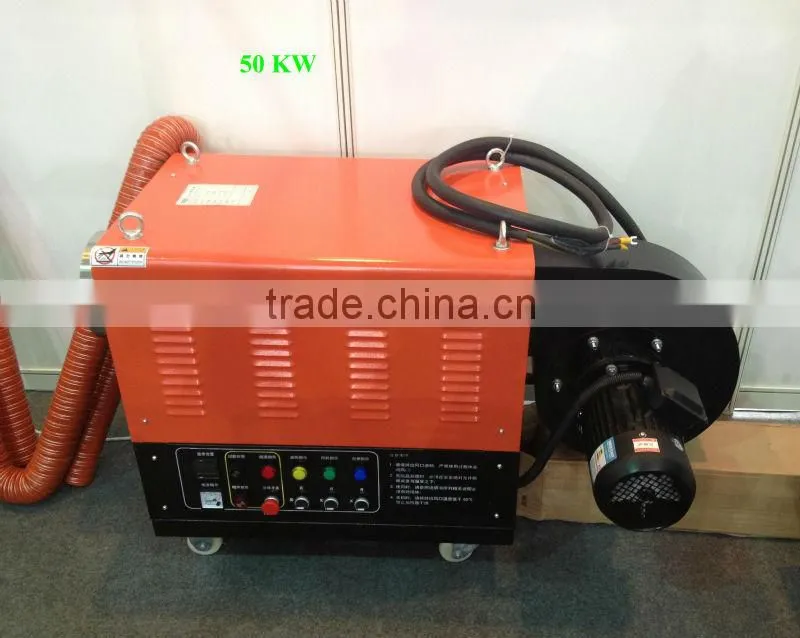

Industry air heater/Hot air generator/ Industrial heater
Efficient thermal capacity,rapid heating up,working continuously durable,precise temperature controlling .
movable type. It is widely used in eliminating wet and moist of moulding cast and drying of the pipe or exchanger after pressure testing.
Electric heating power:3-500KW
Max.flow:1.25-10m³/min
air prssure:0.60-60KPa
outlet temperature:normal-350°C
Inlet temperature:normal temperature
I. Dtailed specifiation:
Item |
Model |
Heating power |
Blower power |
Maximum air flow |
Maximum pressure |
No. |
KW/h |
KW/h |
M³/min |
Pa |
|
1, |
HBO-DR-1220-BX-801 |
1-3KW |
0.025 |
2 |
100 |
2, |
HBO-DR-1220-PF-801 |
3-5KW |
0.04/0.09 |
4/6 |
150/300 |
3, |
HBO-DR-3380-PF-802 |
6KW |
0.20 |
13 |
600 |
4, |
HBO-DR-3380-PF-803 |
10KW |
0.20/0.55 |
13/15 |
600/1100 |
5, |
HBO-DR-3380-PF-804 |
15KW |
0.55/0.75 |
15/22 |
1100/1500 |
|
II. Feature:
1. The industrial air heater adopting wind tunnel structure. three layer high temperature crystalloid heat insulation asbestos and stainless steel are encapsulated entirely, electric resistance direct heating,channel type electric heating exchange, scientific designing, advanced technology.
2. Rapid temperature rise, can blow out hot air as soon as the heater is switched on. Continuous PID/SSR(PID/SCR)controlling, digital display and setting of the temperature, controllable temperature from normal to 350°C(800°C), small thermal inertia.
3. High air flow, little pressure loss, heating exchange almost 100%, save energy, high efficient, environmental protection.
4. Having several protection devices, strong shell, the shell is without heating when the heater is working, so the heater do not have heating influence on the environment. It is safe, convenient, reliable and durable.
5. It is suitable for many applications of industry, such as heating, ageing test, solidify, drying, temperature rising, maintain of cement, and it is the best hot air source supporting device of many machines, such as hot air convey furnace, drying furnace, oven, drying house, dry tunnel, PS drying plate Of printer, drying of sand casting, shrink wrapping machine, encapsulation machine, etc.
6. The heater can work continuously, and it is movable, easy to move and lifting.
Anything we can help on industrial air heater, pls feel free to contact with us!
