Product Application
1.Efficiency is high, after blasting the wire surface is clean, shows metallic color.
2.The blast wheel is equipped with special shape of blade, concentrated blasting and the shots are density and improve productivity
3.The wire is spaced by oriented spacing , so it can control the swing of the wire being cleaned and reach the cleaning purpose
4.It adopts many domestic and foreign advanced technology, technical content of functional components are increased so that the machine runs low fault rate, high rate of boot. The sealing effect is good, reach to purify the environment index requirements of environmental protection.
Main Features
1.Remove rust and oxide layer on the surface of the wire.
2.After blasting, wire rod surface presents a uniform roughness, which will help to increase the adhesion of the aluminum clad copper clad, cladding uniform will never fall off
3.Eliminate the internal stress generated in the wire drawing process.
4.Increase the wire surface tensile strength and resistance to stress corrosion cracking, permanent life. The machine is best suitable models for wire surface oxide skin treatment.
Machine Parts
Coil Wire Shot Blasting Machine is a kind of mechanical equipment,it used high-speed rotating wheel blasting in blast wheel to a certain diameter of the spherical or take bolus of edges and corners, with the help of blast wheel in high speed rotating blade, the pill grain of up to 75 ~ 100 m/s, the speed of the directional mass ejection to the surface of the wire, rely on the kinetic energy of the projectile is to damage or break oxide coating on the surface of the workpiece and after pill slag processors will rust steel shot and separation of slag, slag will rust completely removed.
Blast wheel
Efficient direct type blast wheel
It has the advantages which the belt type blast wheel can't compare with : velocity of projectile is constant, abrasive flow rate is constant.
Impeller body one-time processing imported CNC machining center, high precision, to ensure the high speed low vibration, low noise, long service life.
All the blast wheel adopts load testing machine assembly after experiment, reduce the failure probability, the unqualified product shall be installed;

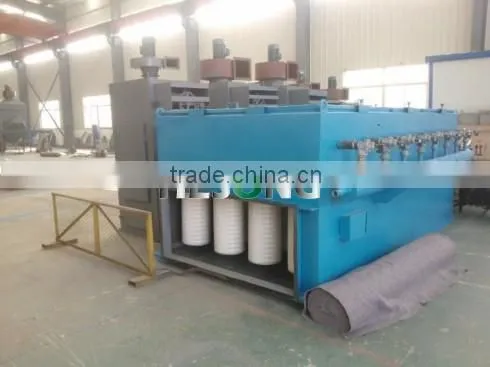

Dust Collector
Efficient sink flow back-blowing filter cartridge and a bag dust collector ( from Our Company Environmental Protection Division) are the new generation of highly efficient dust collector, Design and manufacture of absorbing foreign advanced technology. It is mainly used in the shop, shot blasting equipment and other environmental dust. Dust effects greatly GB16297-1996 "atmospheric pollutant emission standards requirements.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
1. Our company has passed "CE", "ISO9001" and bureau veritas certification .
2. 50 years experience with 20 professional engineers in our Qingdao Foundry Machine Co.,Ltd.
3. So many kinds of foundry machinery ---100 kinds of shot / sand blasting machines and 80 kinds of casting machines.
4. Considerate after-sale service , Technial Assistance and provide installing ,debugging and training on site.
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2). Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3). Q: How does your factory do regarding quality control?
A: Quality is priority. MACTEC People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
4). Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components
5). Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. MACTEC is ALIBAB’s Gold supplier with BV assessment. If you check with ALIBABA, you will see that we have never got any complaint from our customers.
In order to give you the suitable machine , pls provide below message for us :
1. What is your workpiece and the material and the shape ?
2.The Max. Length/Width/Height of the workpiece and the MAX./MIN.weight of your workpiece ?
3.The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
4. The power supply you need( Our China :380V, 3PH, 50HZ)
5. Better to send us the workpiece photo or drawing.
Welcome to contact us or visit our company.
