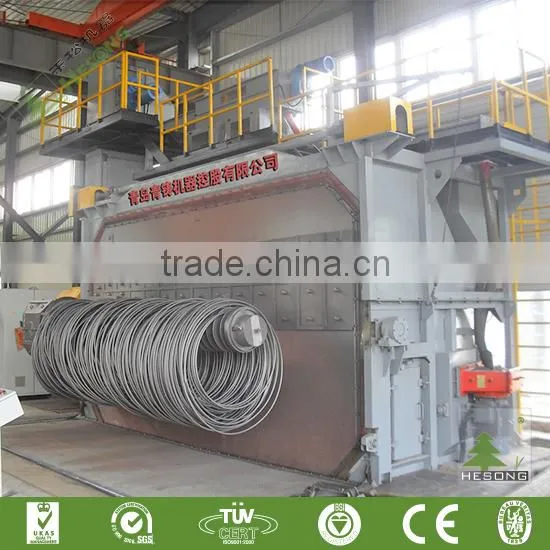

Steel Wire Rod Shot Blasting Machine
Action
1.Remove rust and oxide layer on the surface of the wire.
2.After blasting, wire rod surface presents a uniform roughness, which will help to increase the adhesion of the aluminum clad copper clad, cladding uniform will never fall off
3.Eliminate the internal stress generated in the wire drawing process.
4.Increase the wire surface tensile strength and resistance to stress corrosion cracking, permanent life. The machine is best suitable models for wire surface oxide skin treatment.
The Characteristics Of The Machine:
1.Efficiency is high, after blasting the wire surface is clean, shows metallic color.
2.The blast wheel is equipped with special shape of blade, concentrated blasting and the shots are density and improve productivity
3.The wire is spaced by oriented spacing , so it can control the swing of the wire being cleaned and reach the cleaning purpose
4.It adopts many domestic and foreign advanced technology, technical content of functional components are increased so that the machine runs low fault rate, high rate of boot. The sealing effect is good, reach to purify the environment index requirements of environmental protection.
model |
QX24 |
QX 40 |
Dimension of Wire Rod |
5.5-40mm |
6-24mm |
Speed of process |
10-120m/min |
20~150m/min |
Quantity of wheel |
4 |
4 |
Wheel power |
18.5kw |
22kw |
Power consumption |
100kw |
162.75kw |
Overall dimension |
3440x1575x3630mm |
3200x1800x4500mm |
Coiled cleanup Process
Coil Wire Shot Blasting Machine is a kind of mechanical equipment,it used high-speed rotating wheel blasting in blast wheel to a certain diameter of the spherical or take bolus of edges and corners, with the help of blast wheel in high speed rotating blade, the pill grain of up to 75 ~ 100 m/s, the speed of the directional mass ejection to the surface of the wire, rely on the kinetic energy of the projectile is to damage or break oxide coating on the surface of the workpiece and after pill slag processors will rust steel shot and separation of slag, slag will rust completely removed.Wire shot blasting machine is suitable for blasting removal before drawing oil dirties and scale on the surface of the steel wire, steel wire surface to obtain good cleaning effect, eliminate the internal stress of steel wires at the same time, improve the steel wire surface fatigue strength, prolong service life.
Single cleaning process
Qingdao Qingzhu Foundry Machine Co., Ltd is a professional manufacturer, which is located in Qingdao,China. It is the largest production and export base for foundry machinery in China. It have three production series: Shot blasting machine, sand blasting room / booth , Foundry molding machine and sand core shooter machines.
Our machines were exported to France, Spain ,Russia, Mexico, Japan,korean, Pakistan,Vietnam,Thailand,Southeast Asia and other countries , so hope you can trust our professional technology and strength !
Factory
Workshop
Spare Parts
This series equipment uses all protects and the non-pit design, disposited wire rods
special-purpose force built-in impeller heads, the wearing parts are few, the replacement
is simple quickly, the production efficiency is extremely high.
