YE3 Super Efficient Motor 415V

Specifications

Basic Info.

Additional Info.

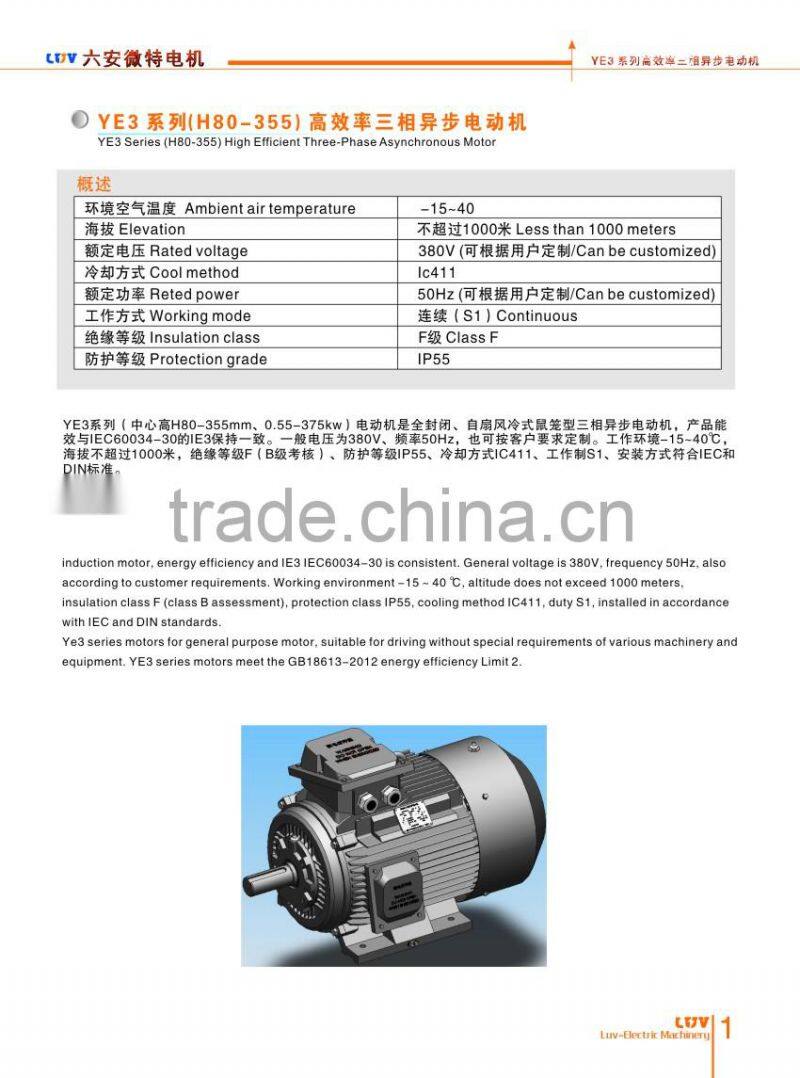

    YE3 series (IP55) super-high efficiency three phase asynchronous motor (Frame Size 80mm to 355mm), is to achieve energy efficiency limit value of Low pressure totally enclosed fan cooled squirrel cage three phase asynchronous motor.

The product is used to various fields of national economy, such as machine tools, pumps, fans, compressors, also apply to the transport, stiring, printing, agricultural machinery, and other types of food not contain flammable, explosive or corrosive gas applications.

     The motor is IP55,the cooling method is IC411,continuous duty”(S1). Class F protection degree insulation structure, but the full range of temperature at B level assessment; and requested the assessment load noise; H315 ~ 355 motor already has installed oiling settings.

    The motor rated voltage is 380V,rated frequency 50Hz,power rating 0.75~375KW, contain 2P, 4Pand 6P motor.The level of the motor run place no more than 1000 m; The highest temperature is not more than 40°C, the lowest air temperature is -15°C.

Characteristics:
IP55 protection
Class F insulation
B temperature rise
S1 duty.
Rated voltage 380V/400V/415V
Rated frequency 50Hz.
Cooling method is IC411
Y-connection for motors up to 3KW and delta-connection for 4KW and above.
Motor Can Be Made As Follow
1. B3 Frame with foot end shield without flange.
2. B35 Frame with foot end shield with flange.
3. B5 Frame without foot end shield with flange..
