Shandong Supplier Dustless Blasting Wire Rod Shot Blasting Cleaning Machine

Shandong Supplier Dustless Blasting Wire Rod Shot Blasting Cleaning Machine photo-1
Shandong Supplier Dustless Blasting Wire Rod Shot Blasting Cleaning Machine photo-2
Shandong Supplier Dustless Blasting Wire Rod Shot Blasting Cleaning Machine photo-3
Shandong Supplier Dustless Blasting Wire Rod Shot Blasting Cleaning Machine photo-4

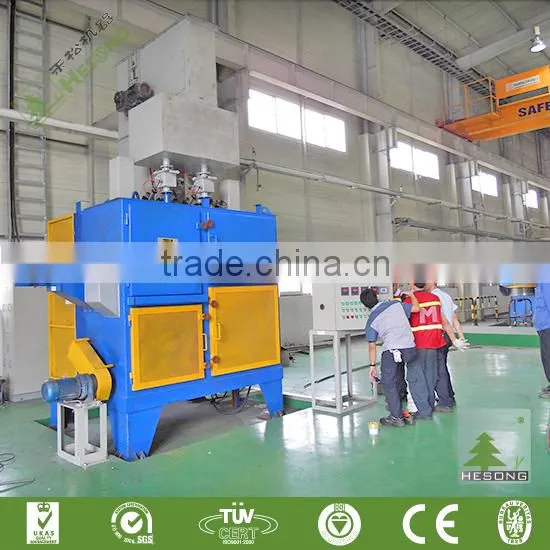

Shandong Supplier Dustless Blasting Wire Rod Shot Blasting Cleaning Machine photo-5
Shandong Supplier Dustless Blasting Wire Rod Shot Blasting Cleaning Machine photo-6
US$ 1 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HESONG
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO PORT CHINA
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name HESONG
Model Number Shot Blasting Machine
Feature Critical Cleaning / Residue Free, Non-Ionic, Non-Toxic, Rust / Corrosion Inhibitor
Fuel Electric
Certification CE, Other, CE, SGS UKAS TUV BSI ISO9001-2008
Use Burnishing, Container / Bottle Cleaning, Deflashing, Degreasing, Descaling / Stripping
Cleaning Process Other, abrasive
Cleaning Type Clean-In-Place (CIP)
Industry Used Electronic Industry
Material Metal / Coil
Power(W) Cusomized
Dimension(L*W*H) Model
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Wire rod shot blasting machine is mainly used the blast wheel that has a high speed rotating speed , then a certain diameter pellets are accelerated to speed 70-100m / S by the high-speed rotating blade blasting wheel , At the same time it comes into the workpiece surface in a certain direction , in accordance with the kinetic energy pellets to break or damage the surface of the oxide, and finally after pill slag processor pellets and rust separation.It is a mechanical devicethat can dispose completely rust.

NO.
ITEM NO.
TECHNICAL INDEXES
1
Blast Wheel/turbine
It is controlled by frequency transformer
2
Shot Blasting Chamber
High chromium wear plate
3
Screw Conveyor
The capacity of conveying : 90-120T/H
4
Elevator
The capacity of elevating : 90-120T/H
5
Separator
Pneumatic concentrator type
6
Flow Adjusting Device
It can be adjusted flow manually equipped with a full set of leading-in pipe
7
Dust Collector
IT is equipped with rotary valve discharge
8
Electrical Control System
Working Power : 380V/50Hz
Operating Power : 220V/50Hz
Mitsubishi PLC automatic control system
9
Performance
Specification of wire : Ø6-30m
The cleaning speed : 60-90m/min

Main Effect

1. Remove rust and oxide layer on the outer surface of the wire.
2. After blasting the surface of the wire, exhibits a uniform roughness after shot blasting and wire surface roughness Ra≤12.5.
3.Eliminate stress wire and wire drawing process produces ≤2% increase the hardness after blasting.
4.Increase the tensile strength and resistance to stress corrosion cracking of the surface of the wire to obtain permanent life.

Detailed Images

Technical Parameters of Wire Rod Shot Blasting Machine

Packing & Delivery
Certifications
Our Company
FAQ

1). Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2). Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3). Q: How does your factory do regarding quality control?
A: Quality is priority. MACTEC People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment
4). Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
5). Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. MACTEC is ALIBAB’s Gold supplier with BV assessment. If you check with ALIBABA, you will see that we have never got any complaint from our customers.
