Application and Features.
This machine is the best special equipment to clean the disc round wire , the use of the surface layer of scale blasting process clear and steel wire surface oxide formed by rolling.Steel billet shot after cleaning up the entire surface rust grade rating to Sa2.5 surface roughness level reaches Ra6.3 ~ 12.5μm. Compared to pickling treatment,it has economical, environmentally friendly and efficient features.

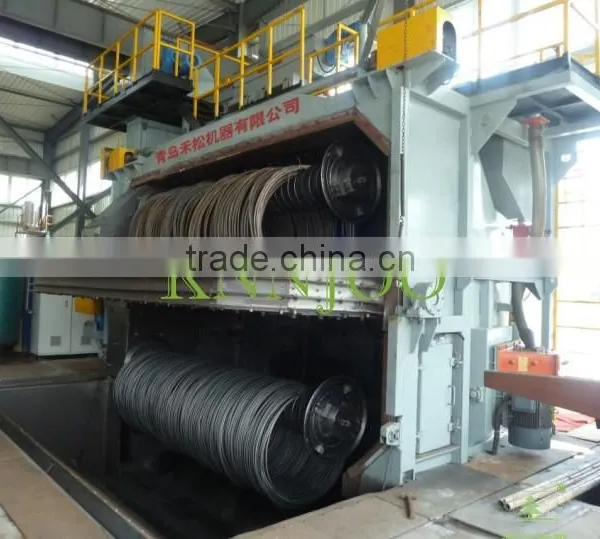

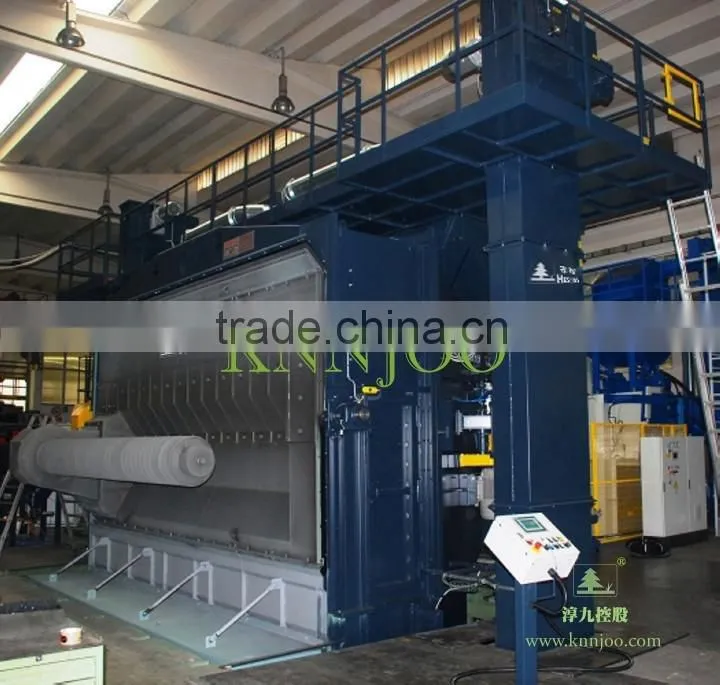

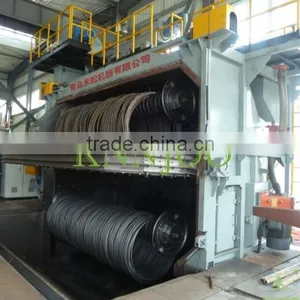

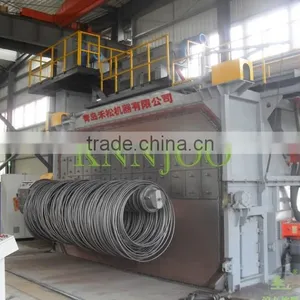

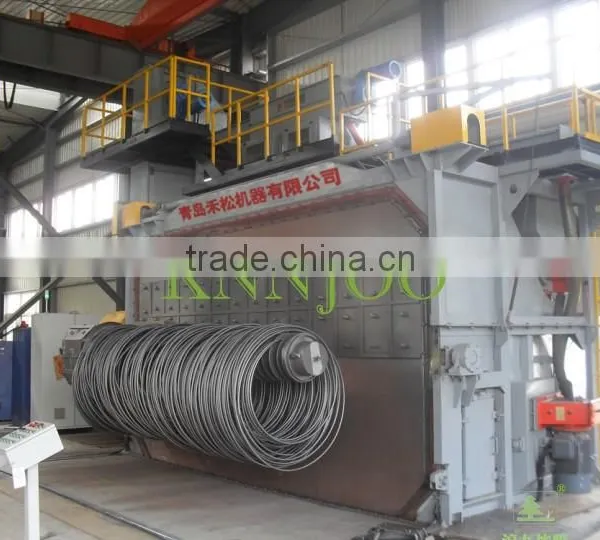

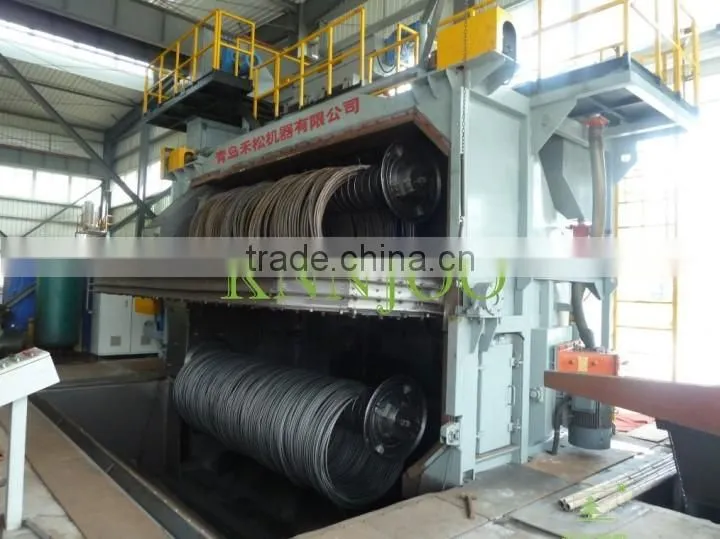

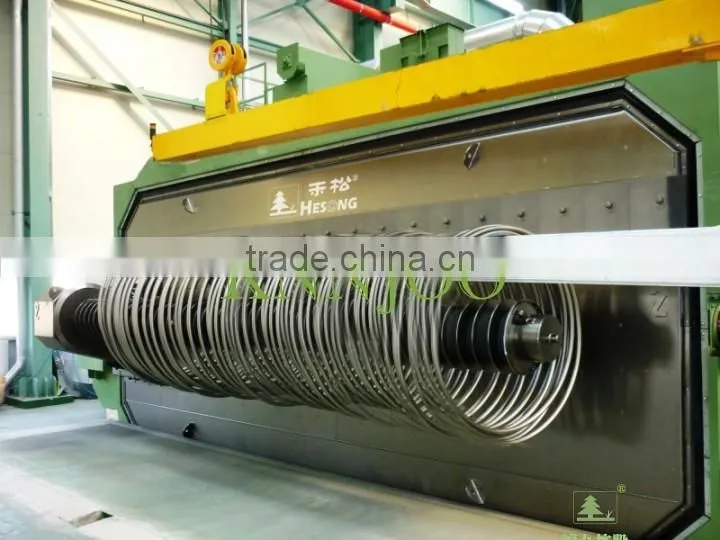

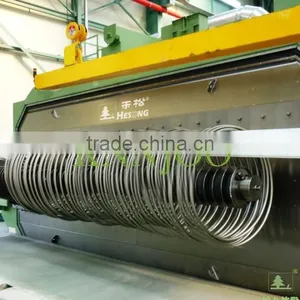

The device uses a unique "revolving door + double cantilever axis" carrier plate round wire, to achieve duplex mode of operation, greatly increasing the production capacity of the apparatus. Cantilever shaft is made of special alloy steel, the wire in the Shot Blasting process, as "up and down swing + + reverse rotation" compound action in order to achieve a thorough clean-up effect. Reasonable blast wheel arrangement, such that the inner and outer surfaces of the disc round wire can be effectively combat projectile beam. The machine use PLC intelligent control, convenient and reliable operation.
Equipment Type: HSPY-II
Equipment Name: Double-disc Circular Shot Blasting Machine
Main technique parameter of machine
1.Coiled material specifications:
A. wire diameter: Φ4 ~ Φ36mm
B. Coiled inner diameter: Φ800-1100mm
C. Coiled outer diameter: Φ1200-1400mm
D. round plate height: 2500mm
E. Maximum load: 2500kg (wire diameter φ4 ~ φ36mm).
2.Bearer and Productivity:
A. Transportation methods: cantilever bearing load (Shot Blasting, indoor cantilever axis may be the work of the PLC program: rotate clockwise, then counterclockwise rotation; adjustable rotation time outdoor cantilevered shaft by a manual push-button control, the electrically operated personnel. console adjustment)
B. Productivity: 6-13 min / bar
C. Effective Length: 3800mm
D. Rotation speed: 10-20r / min (Frequency)
3.Surface quality requirements after the treatment:
A. After blasting the steel surface without residual iron oxide
B. Surface cleanliness: Sa2.5 level
C. Surface roughness: Ra6.3 ~ 12.5
4.Eenvironmental requirements:
A. Outdoor emission concentration: ≤60.0 mg /m ³
Our company has decades of experience in manufacturing shot blasting machine, there are dozens of experienced engineers and many employees, which received many certificates in the field, our company's products are favored by many customers.

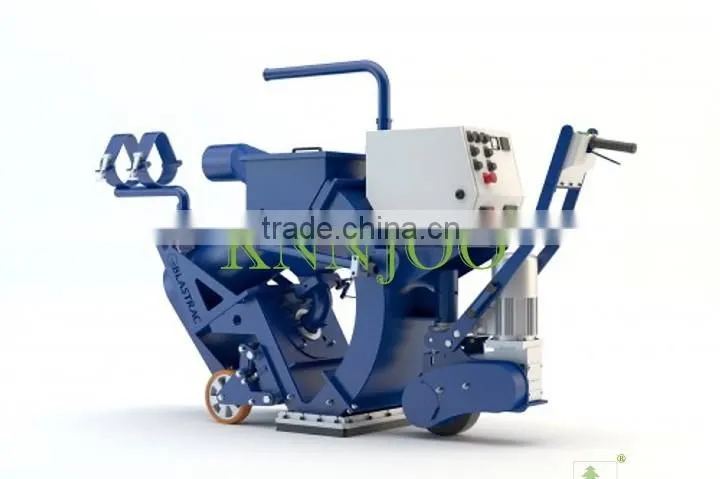

Road Mobile Shot Blasting Machine
Double-hook Conveyor Shot Blasting Cleaning Machine
Rubber Type Shot Blasting Machine
Perhaps we can not guarantee that each transaction is perfect, but we are absolutely able to protect the interests of each customer, any questions please contact us, we do the rest to solve.
