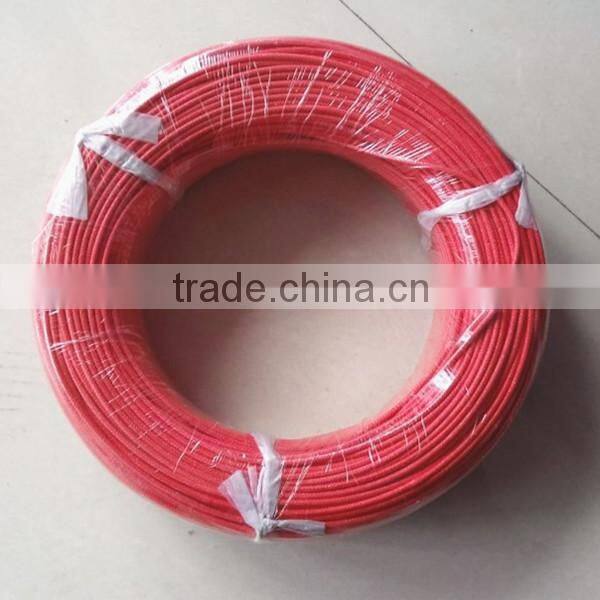

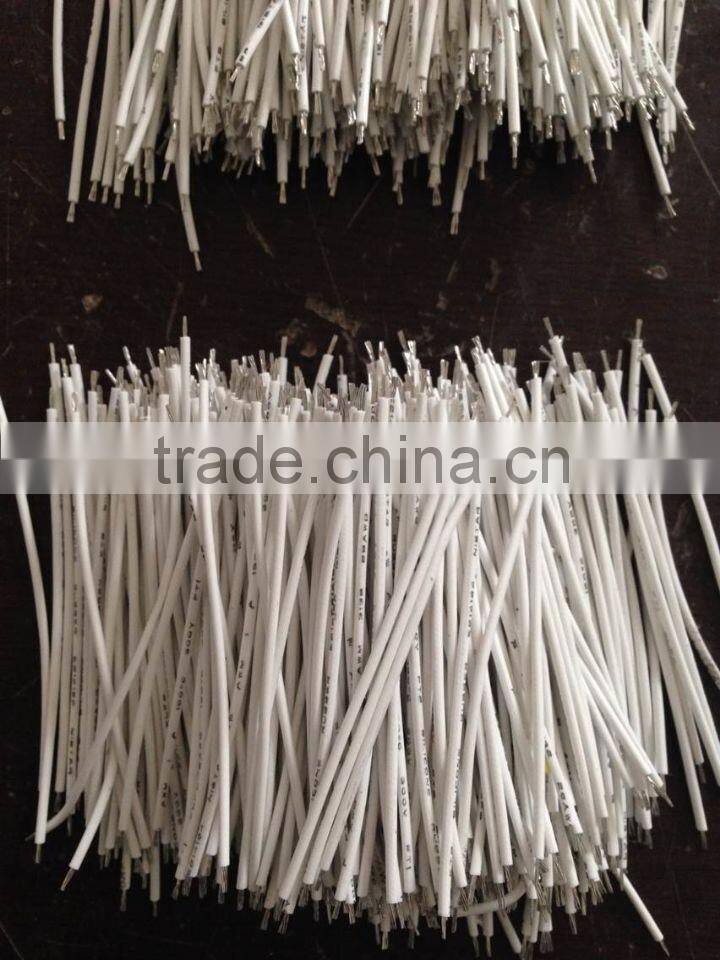

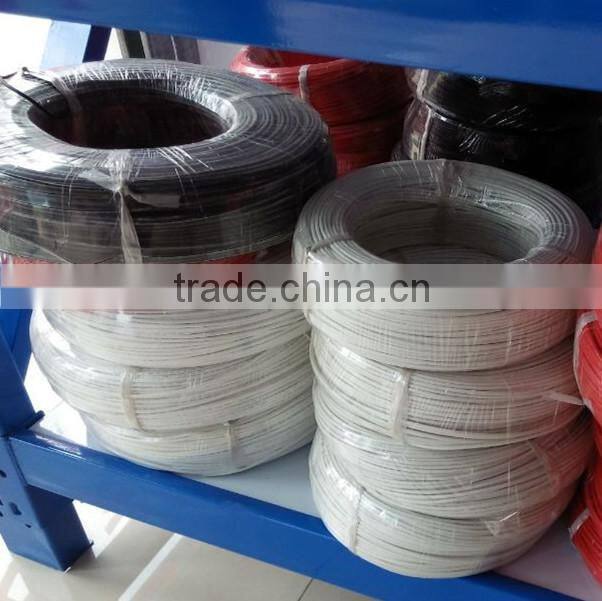

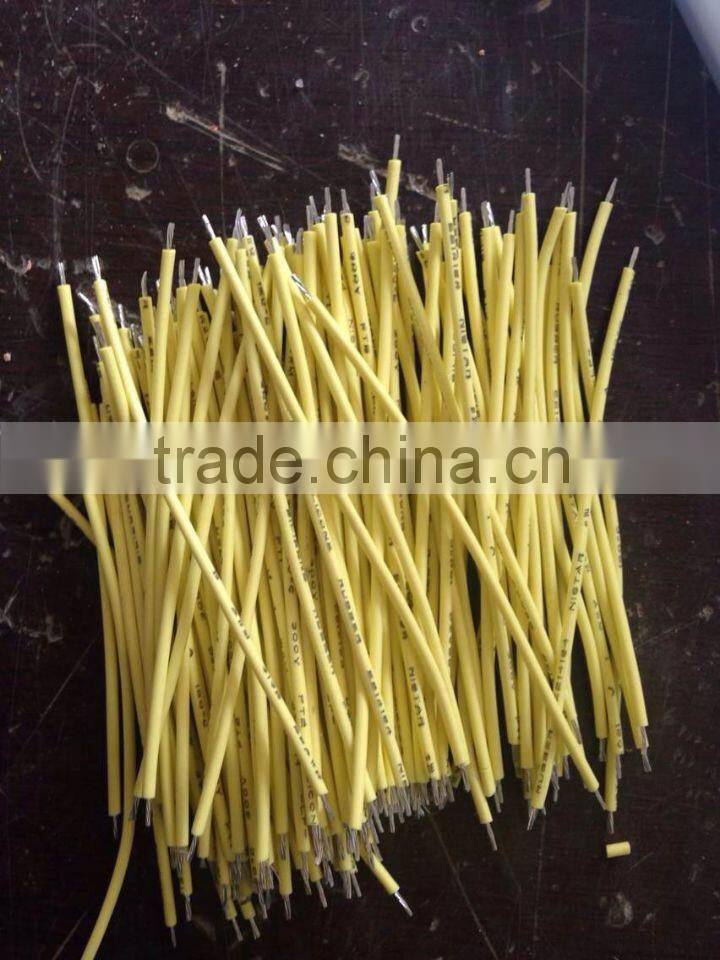

Help CenterUL VDE Style No.3239, 3135 Silicone Rubber Wire
Related Products
-
Male and Female ConnectorUS$ 0.6 - 5MOQ: 1000 Pieces -
Sineyi Brass PA Wholesale OEM Sorts of Lamps and Lanterns PE,PA,PP Din RailUS$ 0.1 - 0.5MOQ: 1000 Pieces
-
Sineyi 2014 High Quality Cat-2 Nylon 2 Way Waterproof Connector New Design Electric Pluggable ConnectorsUS$ 1 - 3.12MOQ: 1000 Pieces
-
China Silicone Cable Wire With Heat- Shrinkable Tubing and Tined TopUS$ 0.1 - 5MOQ: 5000 Meters
-
Sineyi 2016 PC252 Series High Quality Lighting Terminal 4P Home Lighting TerminalsUS$ 0.05 - 0.9MOQ: 1000 Pieces
Nominal voltage:3KV,6KV,10KV, 20KV,30KV
Temperature range:200
Standard:UL 758
| Size(AWG) | Construction(No./mm) | Diameter(mm) | Nominal thickness(mm) | Diameter(mm) | Nominal thickness(mm) | Diameter(mm) | Nominal thickness(mm) | Diameter(mm) | Nominal thickness(mm) | Diameter(mm) | Nominal thickness(mm) | Diameter(mm) | Max.Cond Resistance(Ω/km) | Unit Length(M)(Ft) |
| 28 | 7*0.12 | 0.37 | 0.5 | 1.37 | 0.7 | 1.77 | 1 | 2.37 | 1.3 | 2.97 | 1.7 | 3.77 | 237.25 | 305 |
| 26 | 7*0.15 | 0.49 | 0.5 | 1.49 | 0.7 | 1.89 | 1 | 2.49 | 1.3 | 3.09 | 1.7 | 3.89 | 148.94 | 305 |
| 24 | 14*0.14 | 0.6 | 0.5 | 1.6 | 0.7 | 2 | 1 | 2.6 | 1.3 | 3.2 | 1.7 | 4 | 93.25 | 305 |
| 22 | 22*0.14 | 0.76 | 0.5 | 1.76 | 0.7 | 2.14 | 1 | 2.76 | 1.3 | 3.36 | 1.7 | 4.16 | 55 | 305 |
| 20 | 32*0.14 | 0.91 | 0.5 | 1.91 | 0.7 | 2.31 | 1 | 2.91 | 1.3 | 3.51 | 1.7 | 4.31 | 34.6 | 305 |
| 18 | 52*0.14 | 1.17 | 0.5 | 2.17 | 0.7 | 2.57 | 1 | 3.17 | 1.3 | 3.77 | 1.7 | 4.57 | 21.8 | 305 |
| 16 | 52*0.18 | 1.5 | 0.5 | 2.5 | 0.7 | 2.9 | 1 | 3.5 | 1.3 | 4.1 | 1.7 | 4.9 | 13.7 | 200 |
We cooperated with local fedex, dhl, ups, tnt,ems, and got more than 50% discount, help you save the shipping cost, and let you receive it in 3 to 10 days.
1 Reply your enquiry in 24 working hours.
2 Experienced staffs answer all your questions in fluent English
3 Customized design is available .
4 Unique solution can be provided to our customer by our well-trained and professional and staffs
Why Trust Us:
1. Sineyi CO.,LTD is a professional manufacturer and exporter of cable glands, cable connector,etc wiring accessories. We have advanced production equipment, abundant technical force.
2. Sineyi quality is first in China(Mainland). Our quality of cable gland is same as AVC Corp( Tainwan).
3. Sineyi engineer team have at least 15 years experience to develop new mold every month.
4.Sineyi size and type of cable gland is most complete in China to satisfy different cable range.
5. Sineyi develop new products every year to keep the competitiveness in the market
6.Above payment: D/A D/P T/T L/C Western Union MoneyGram Paypal
