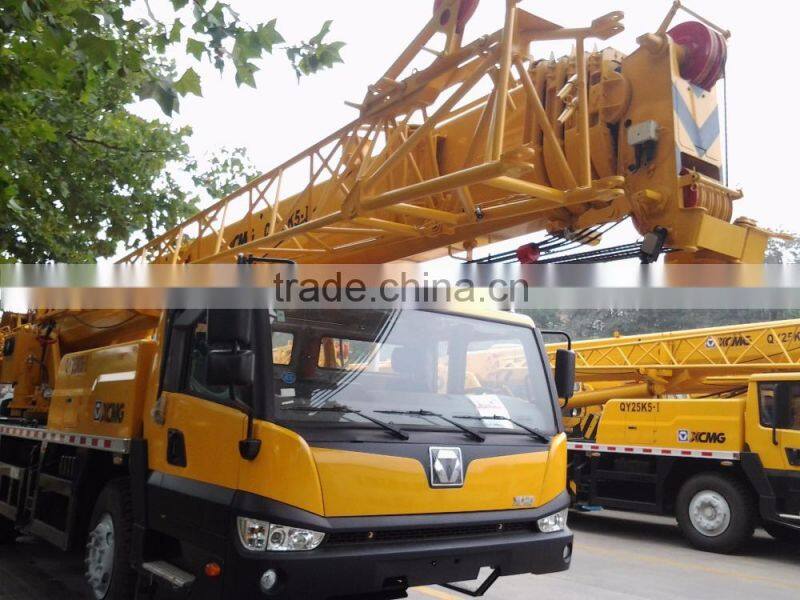

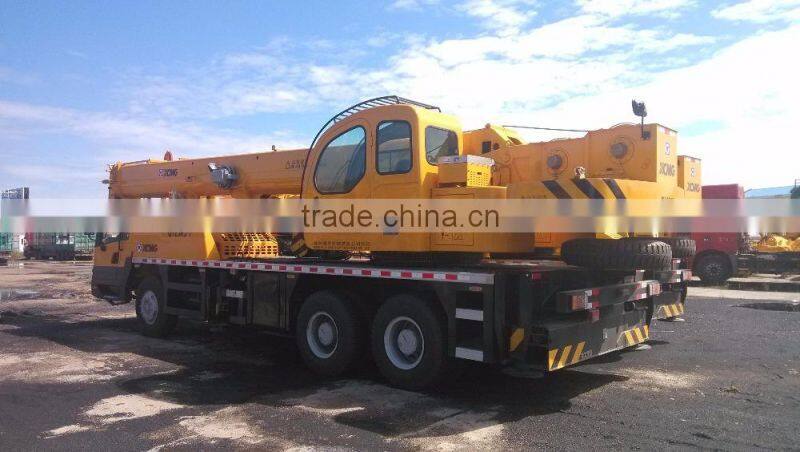

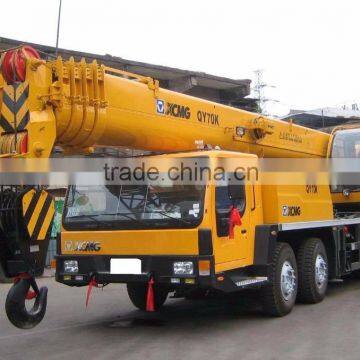

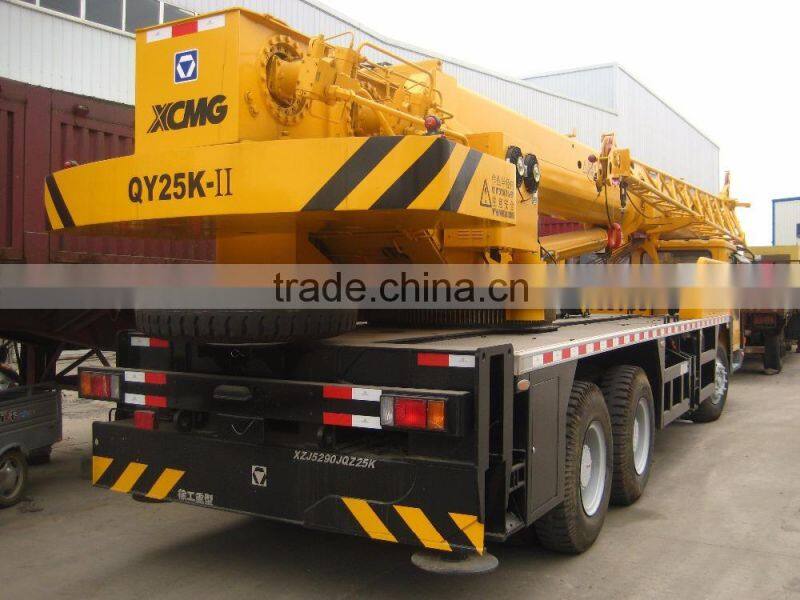

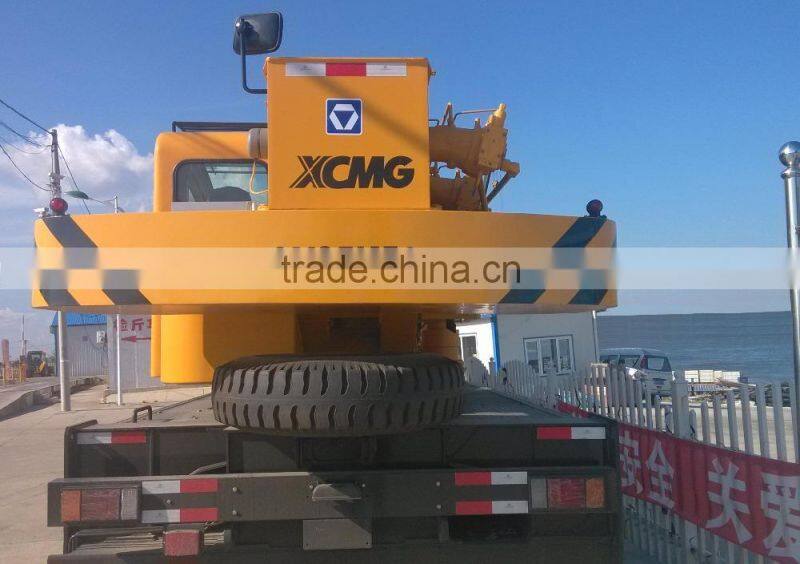

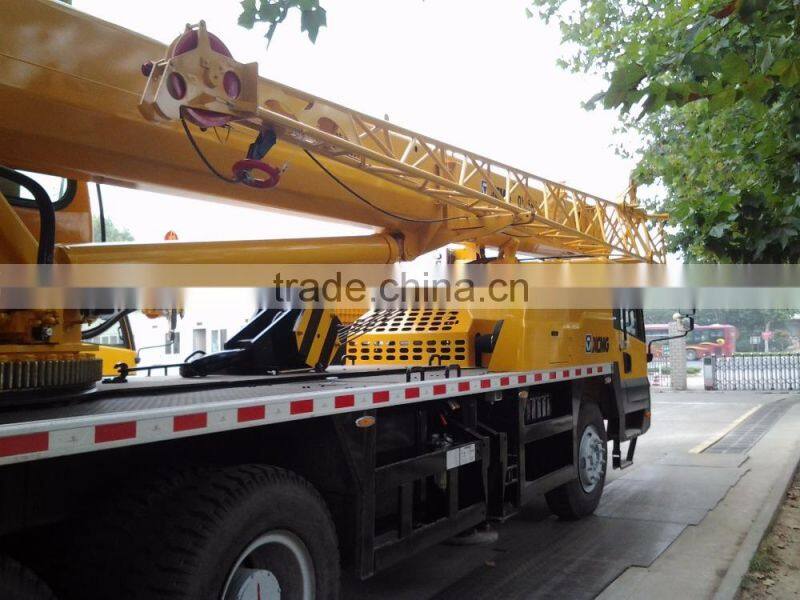

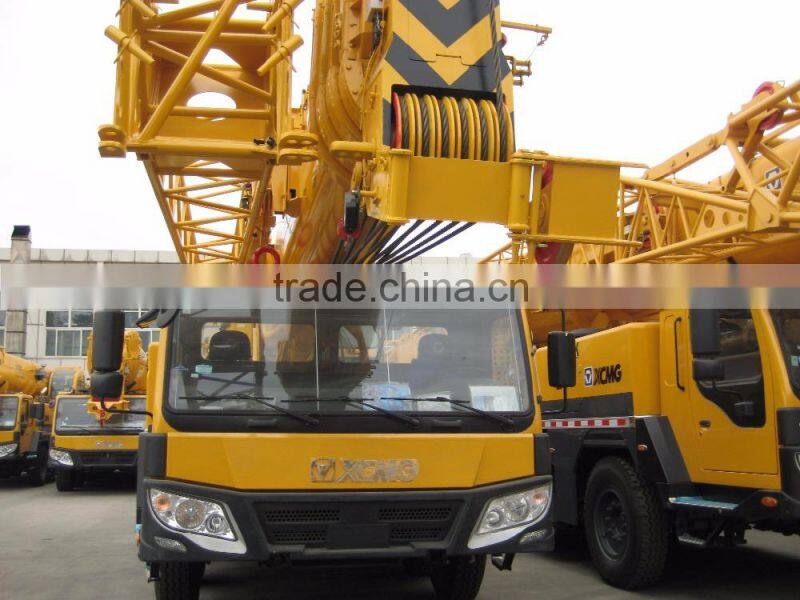

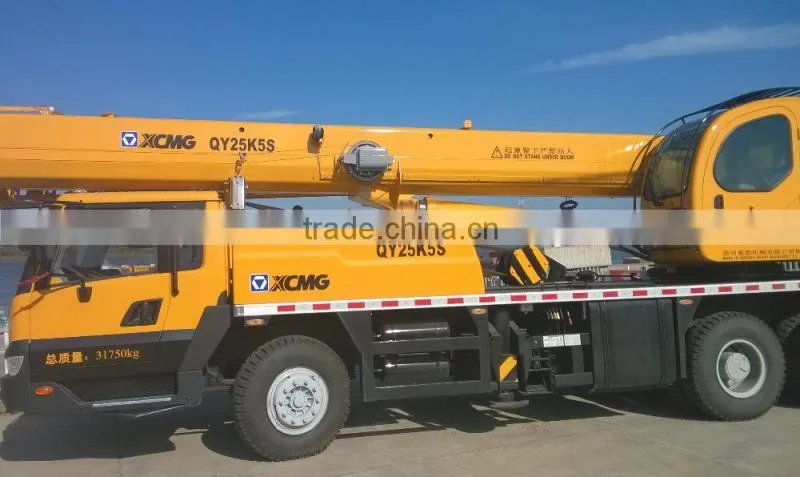

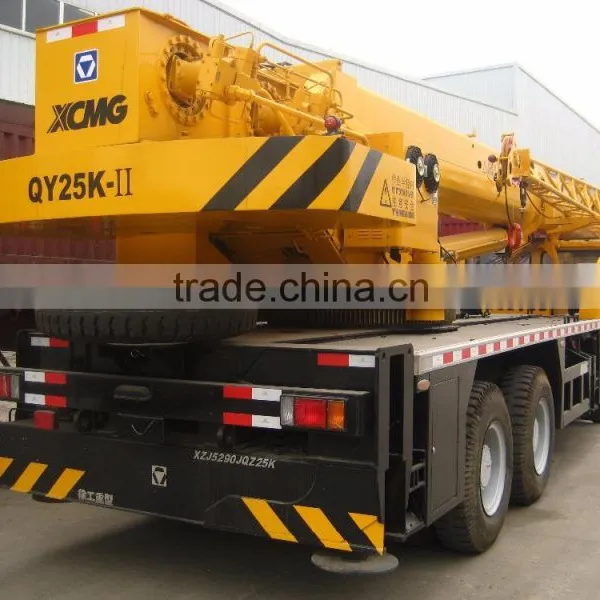

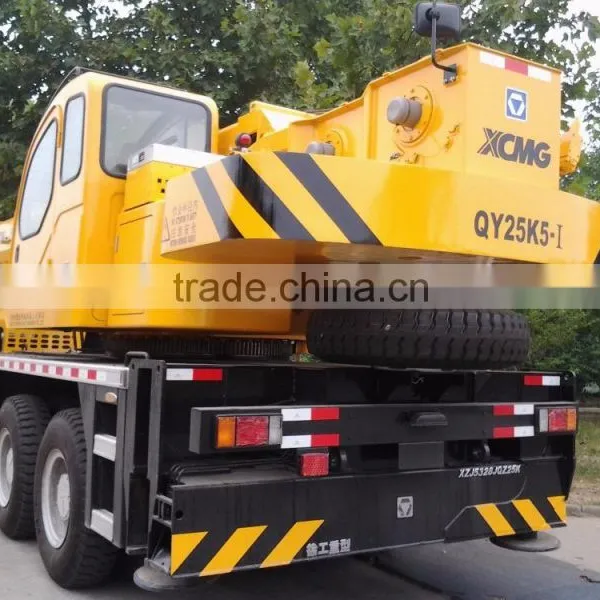

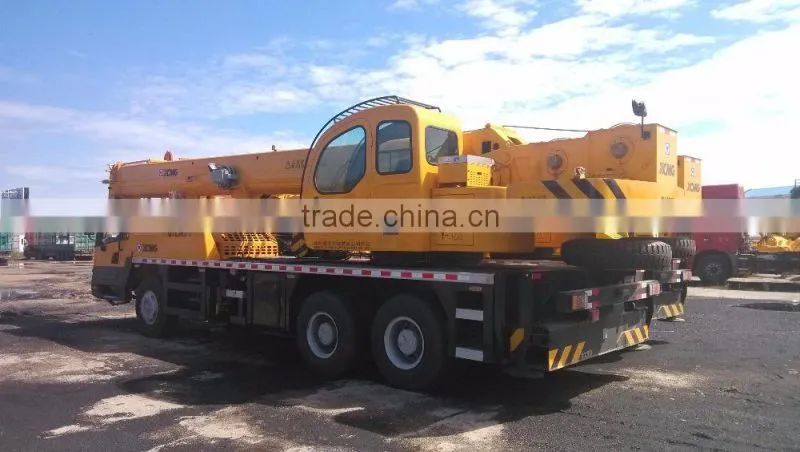

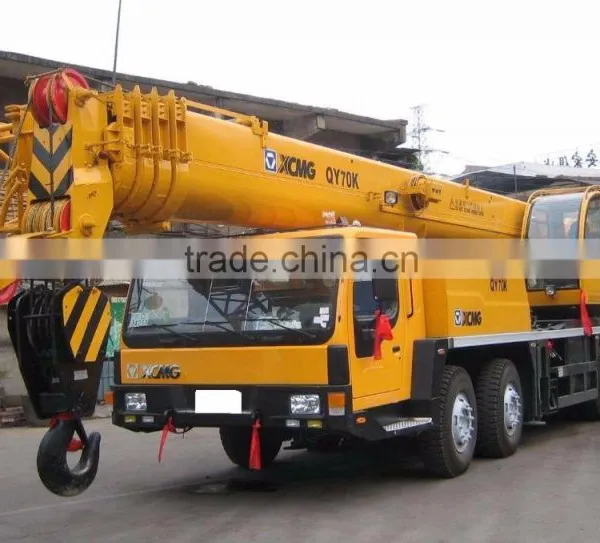

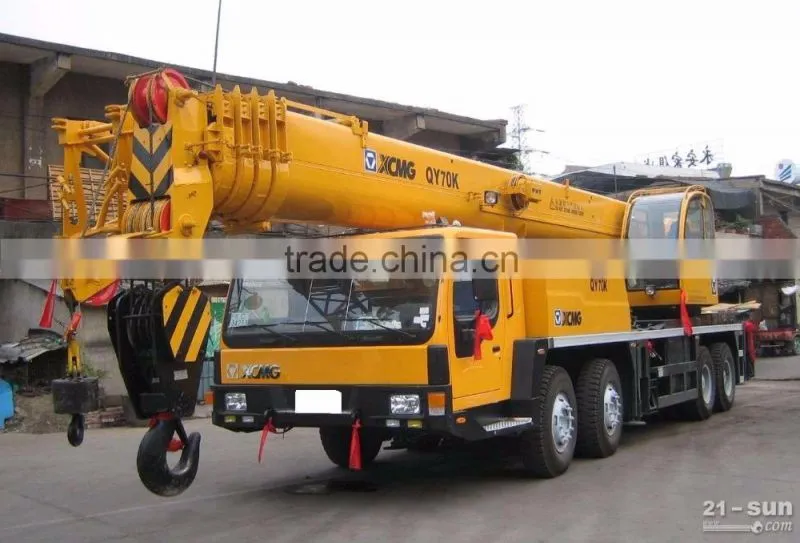

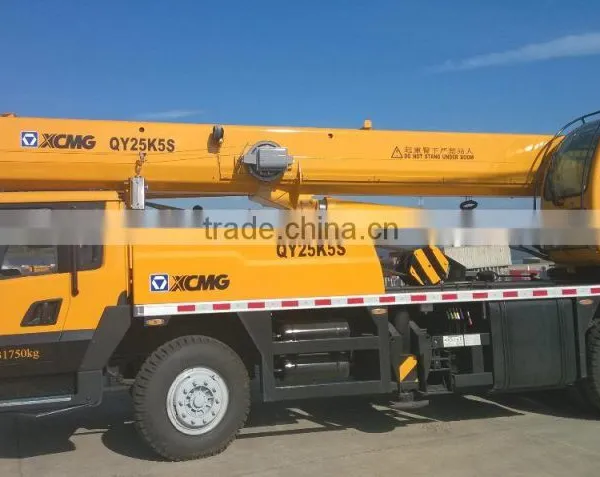

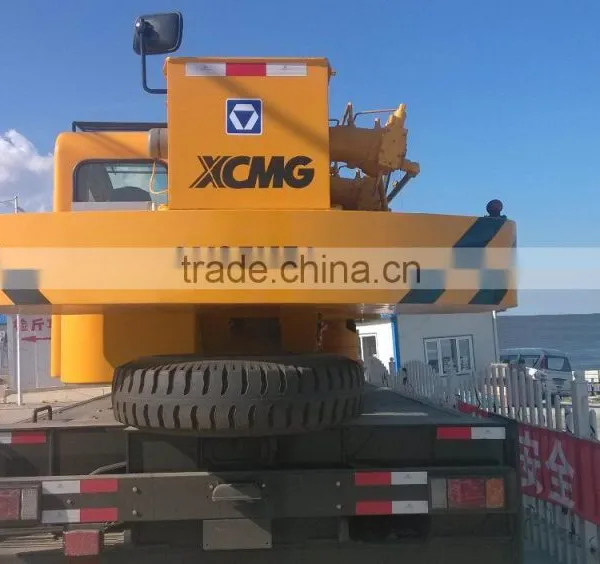

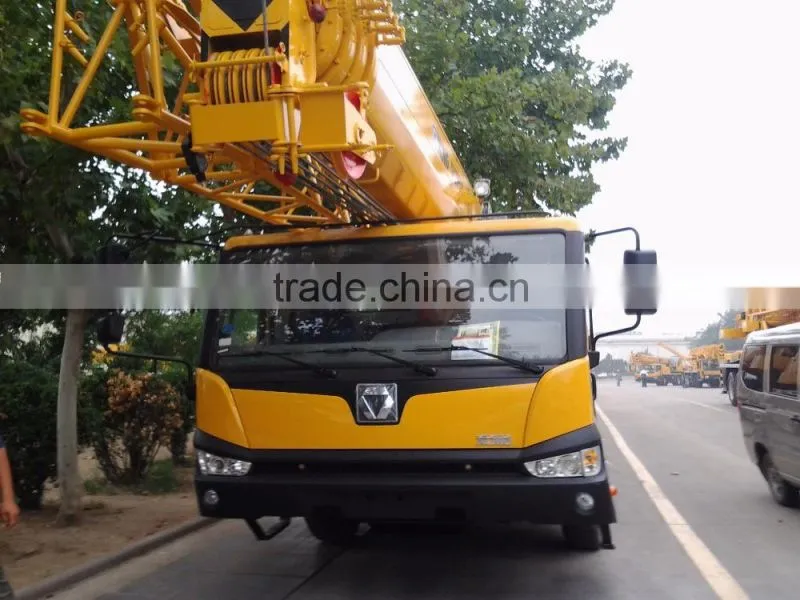

XCMG Mobile Truck Crane 25 50 Ton Mobile Crane

Name: XCMG Mobile Truck Crane 25 50 Ton Mobile Crane
Brand: XCMG
SKU: 124865569
Availability: InStock

Xiamen Xinlongteng Machinery Co., Ltd.

US$ 80,000 - 140,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Rated Loading Capacity:

25 ton

Rated Lifting Moment:

961 kN.m

Payment & Shipping

Payment Methods:

Port of Shipment:

Lianyuangang

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Rated Loading Capacity 25 ton

Rated Lifting Moment 961 kN.m

Max. Lifting Load 25 ton

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number QY25K5-I

Certification ISO9001

Warranty 1 Year

After-sales Service Provided Overseas service center available

XCMG hot sale mobile truck crane QY25K5-I 25 ton 50 ton mobile crane

Product Description

Main Information

Max.lifting capacity:25t

Fully extended boom: 39.5m

Fully extend boom+jib:47.8m

Detail Specification of XCMG QY25K5-I 25ton 50t truck crane

Dimension	Unit	QY25K5-I
Overall length	mm	12300
Overall width	mm	2500
Overall height	mm	3350
Weight
Total weight in travel	kg	31750
Front axle load	kg	6550
Rear axle load	kg	25200
Power
Engine model		SC8DK280Q3	WD615.329
Engine rated power	kW/(r/min)	206/2200	213/2200
Engine rated torque	N.m/(r/min)	1112/1400	1160/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	22
Min. ground clearance	mm	260
Approach angle	°	16
Departure angle	°	13
Max. grade ability	%	40
Fuel consumption for 100km	L	≈37
Main performance
Max. rated total lifting capacity	t	25
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.065
Max. lifting torque	kN.m	961
Base boom	m	10.4
Fully extended boom	m	39.5
Fully extended boom+jib	m	47.8
Longitudinal outrigger span	m	5.14
Lateral outrigger span	m	6
Working speed
Boom luffing time	s	68
Boom full extension time	s	150
Max. swing speed	r/min	2.5
Max. speed of main winch (single rope) (no load)	m/min	125
Max. speed of aux. winch (single rope) (no load)	m/min	125
