Home > Products > XCMG machine > XCMG famous QY25K5 25 ton mobile crane
XCMG famous QY25K5 25 ton mobile crane
- 100 Unit / Units per Month
- Lianyuangang
- T/T
Product Details
Condition: | New | Rated Loading Capacity: | 25 ton | Rated Lifting Moment: | 961 kN.m |
Max. Lifting Load: | 25 ton | Place of Origin: | Jiangsu, China | Brand Name: | XCMG |
Model Number: | QY25K5-I | Certification: | ISO9001 | Warranty: | 1 Year |
After-sales Service Provided: | Overseas service center available |
Product Description

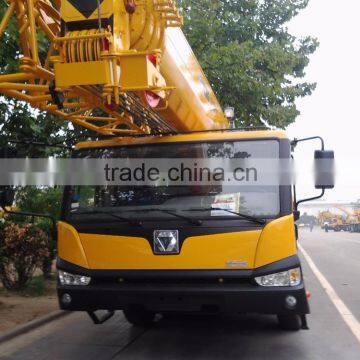

XCMG hot sale QY25K5-I 25 ton mobile crane
Main Information
Max.lifting capacity:25t
Fully extended boom: 39.5m
Fully extend boom+jib:47.8m
Detail Specification of XCMG QY25K5-I truck crane
Dimension | Unit | QY25K5-I | |
Overall length | mm | 12300 | |
Overall width | mm | 2500 | |
Overall height | mm | 3350 | |
Weight | |||
Total weight in travel | kg | 31750 | |
Front axle load | kg | 6550 | |
Rear axle load | kg | 25200 | |
Power | |||
Engine model | SC8DK280Q3 | WD615.329 | |
Engine rated power | kW/(r/min) | 206/2200 | 213/2200 |
Engine rated torque | N.m/(r/min) | 1112/1400 | 1160/1400 |
Travel | |||
Max. travel speed | km/h | 80 | |
Min. turning diameter | m | 22 | |
Min. ground clearance | mm | 260 | |
Approach angle | ° | 16 | |
Departure angle | ° | 13 | |
Max. grade ability | % | 40 | |
Fuel consumption for 100km | L | ≈37 | |
Main performance | |||
Max. rated total lifting capacity | t | 25 | |
Min. rated working radius | mm | 3000 | |
Turning radius at turntable tail | m | 3.065 | |
Max. lifting torque | kN.m | 961 | |
Base boom | m | 10.4 | |
Fully extended boom | m | 39.5 | |
Fully extended boom+jib | m | 47.8 | |
Longitudinal outrigger span | m | 5.14 | |
Lateral outrigger span | m | 6 | |
Working speed | |||
Boom luffing time | s | 68 | |
Boom full extension time | s | 150 | |
Max. swing speed | r/min | 2.5 | |
Max. speed of main winch (single rope) (no load) | m/min | 125 | |
Max. speed of aux. winch (single rope) (no load) | m/min | 125 |
After-sale service
We manufacturers,(LTMA) always treat the after-sale service more important than sale. Nowadays more than 10 agents around the world can supply LTMA professional after-sale service.
All the products of LTMA supplied with one year or 2000 workling hours (which occurs first) period quality warranty.
Detailed clauses and policies please see to our website and product’s quality certificate.
1.What's the Certificate do you have?
LTMA workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements. LTMA never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMA will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMA warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 90 days
