| Modle | WZ30-25 |
| Loading bucket capacity | 1.0m3 |
| Rated load capacity | 2000kg |
| Max. Breakout force | 49KN |
| Max. Traction | 38kn |
| Tipping load | 32KN |
| Forward I gear shift | 0-11km/h |
| Forward II gear shift | 0-27km/h |
| Reverse I gear shift | 0-10km/h |
| Reverse II gear shift | 0-26km/h |
| Dumping height | 2600mm |
| Dumping reach when at max. Dumping height | 880mm |
| Capacity of excavator bucket | 0.3 m3 |
| Max. Excavating depth | 4100mm |
| Max. Excavating radius | 5000mm |
| Revolute angle of movable arm | 180degree |
| Engine | 4105 |
| Rated power | 69kw |
| Rated rotation | 2400r/min |
| Driving speed | 25km/h |
| Max. Steering angle | 35degree |
| Grade ability | 45% |
| Min. Turning radius (front wheel center) | 4190mm |
| Operation weight | 6500kg |
| Wheel(4wheels in one size) | 1670-20 |
| Air condition (sealed cab) | Yes |
| Size(L*W*H) | 6500mm*2060mm*3300mm |
backhoe loader
Features and Advantages:

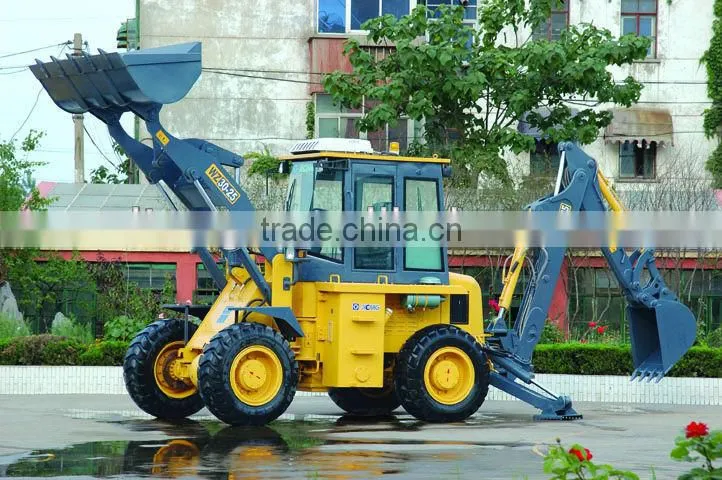

WZ30-25 is a muti-functional construction machine gathering loading and excavating. It is a new model developed with colleges and universities using virtual prototype, finite element analysis and other modern design methods. This makes it have obvious superiority over the similar products. It is four-wheels driven, adopts hydraulic torque converter, power gear box, all hydraulic steer gear, pilot control. It is widely used in municipal, construction, highway, water conservancy, power supply, garden and so on.
The main characteristics of this machine:
1. Adopt the Yucai engine which is powerful and with low maintenance. It has the high power and good performance ability ,
2. adopt the mature component part of ZL30 wheel loader, which is more safe.
3. The leading articulated frame, with the front and axle bridge rationally distributed, makes it has exceptional stability when loading and excavating.
4. Pneumatic valve control system makes car-stopping brake with urgent brake. So it is more safe when braking.
5. The operation devices are designed according to humanization.
6. the rear can swing around the center, which makes the tire have well cling capacity and the whole machine has good off-road performance.
7.optimized designed loading device, reasonable displayed cutting point, automatic leveling system.
8.middle displayed digging device, spread wing legs.
9.Firstly adopts the pivot control system in the backhoe loader.
10.The whole day-lighting closed driver’s cabin is furnished with the system of the air conditioner, ROPS system. It is safe and comfortable, and the visual field is broad. It adopts the sound insulation, the heat insulation and shock attenuation, which improved the comfortableness of the operating environment.
.

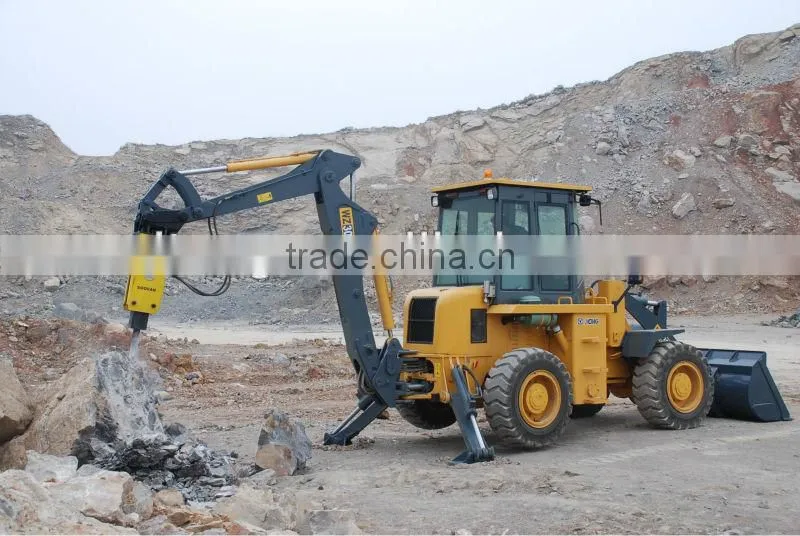

11.Various instruments such as four in one bucket, crash hammer can be chosen.
How to Trade
MOQ | One set. sample order, small order, mix order accept |
OEM, ODM | Available |
Port of Load | Xiamen, China |
Trade terms | FOB,FCA, CNF, CIF, Door to Door Optional |
Shipping | Container or nude packing. By sea, truck |
Payment term | (1) T/T, 30% in deposit, balances on the receipt of copy of B/L |
Traded Currency | USD ,EUR |
Lead time | 7 to 20 days after order confirmation |
