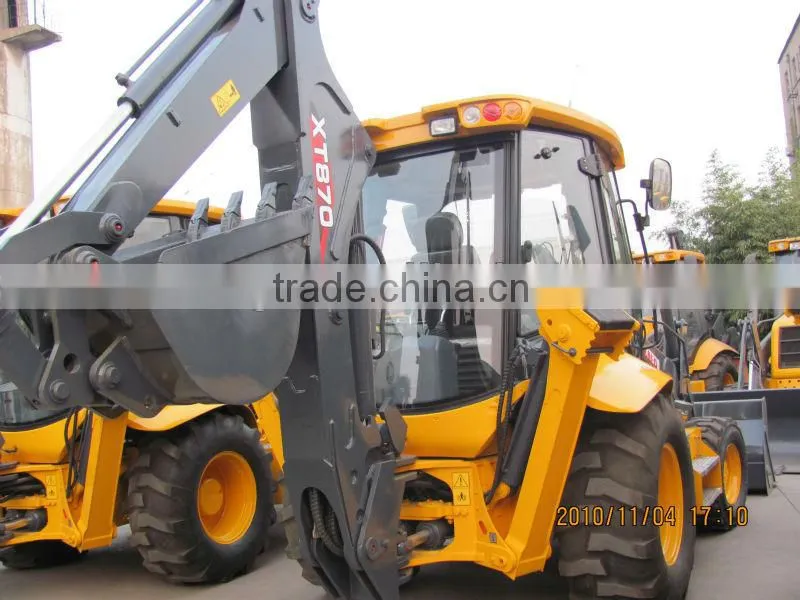

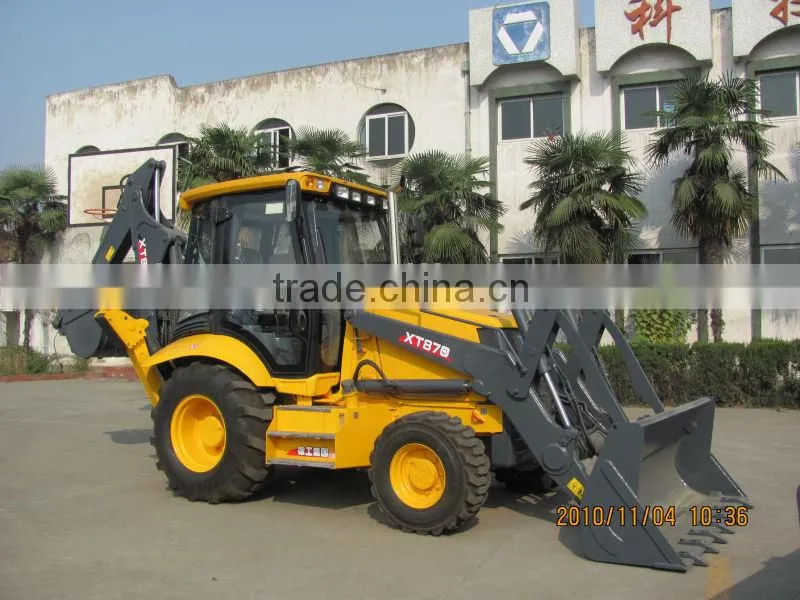

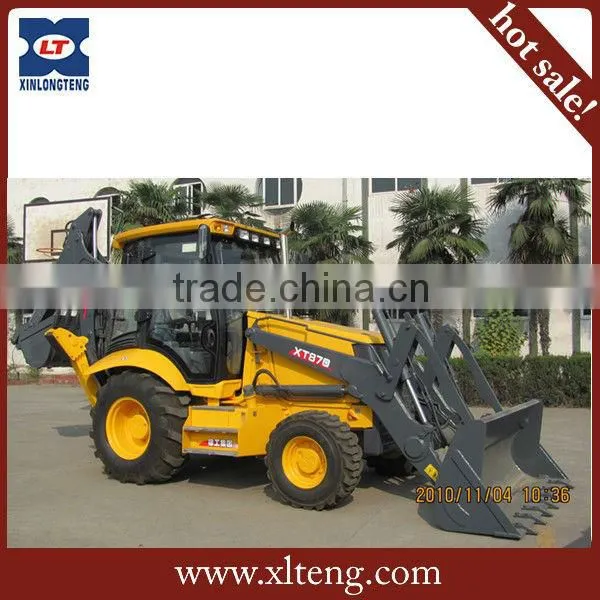

xcmg small backhoe loader mini loader with backhoe
| Description | Unit | LT870 | LT872 |
| Overall dimensions(L*W*H) | mm | 7173×2300×3437 | 7173×2382×2820 |
| Bucket capacity | m3 | 0.8-1.2 | 0.8-1.2 |
| Digger capacity | m3 | 0.25-0.35 | 0.25-0.35 |
| Dumping clearance | mm | 2825 | 2825 |
| Dumping reach | mm | 727 | 727 |
| digging depth | mm | 4400 | 4000 |
| digging radium | mm | 5471 | 5471 |
| Breakout fore | kn | 42 | 42 |
| Wheel base | mm | 2180 | 2180 |
| Tread | mm | front1870/back1774 | |
| Model | Cummins B4.5 | deutz TD226B-4IG2 | |
| Rated power | kw | 82 | 70 |
| Rated speed | r/min | 2200 | 2200 |
| max.travel speed | km/h | 40.2/48.6 | 35/36 |
| Total cycling time | s | ≤11 | ≤11 |
| Tyres | 14-17.5/19.5L-24 | 14-17.5/19.5L-24 | |
| Operating weight | t | 7.8 | 7.8 |
Features and Advantages:
WZ30-25 is a muti-functional construction machine gathering loading and excavating. It is a new model developed with colleges and universities using virtual prototype, finite element analysis and other modern design methods. This makes it have obvious superiority over the similar products. It is four-wheels driven, adopts hydraulic torque converter, power gear box, all hydraulic steer gear, pilot control. It is widely used in municipal, construction, highway, water conservancy, power supply, garden and so on.
The main characteristics of this machine:
1. Adopt the Yucai engine which is powerful and with low maintenance. It has the high power and good performance ability ,
2. adopt the mature component part of ZL30 wheel loader, which is more safe.
3. The leading articulated frame, with the front and axle bridge rationally distributed, makes it has exceptional stability when loading and excavating.
4. Pneumatic valve control system makes car-stopping brake with urgent brake. So it is more safe when braking.
5. The operation devices are designed according to humanization.
6. the rear can swing around the center, which makes the tire have well cling capacity and the whole machine has good off-road performance.
7.optimized designed loading device, reasonable displayed cutting point, automatic leveling system.
8.middle displayed digging device, spread wing legs.
9.Firstly adopts the pivot control system in the backhoe loader.
10.The whole day-lighting closed driver’s cabin is furnished with the system of the air conditioner, ROPS system. It is safe and comfortable, and the visual field is broad. It adopts the sound insulation, the heat insulation and shock attenuation, which improved the comfortableness of the operating environment.
.
11.Various instruments such as four in one bucket, crash hammer can be chosen.
After-sale service
We manufacturers,(LTMA) always treat the after-sale service more important than sale. Nowadays more than 10 agents around the world can supply LTMA professional after-sale service.
All the products of LTMA supplied with one year or 2000 workling hours (which occurs first) period quality warranty.
Detailed clauses and policies please see to our website and product’s quality certificate.
1.What's the Certificate do you have?
LTMA workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements. LTMA never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMA will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMA warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 90 days
