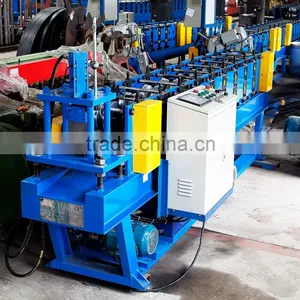

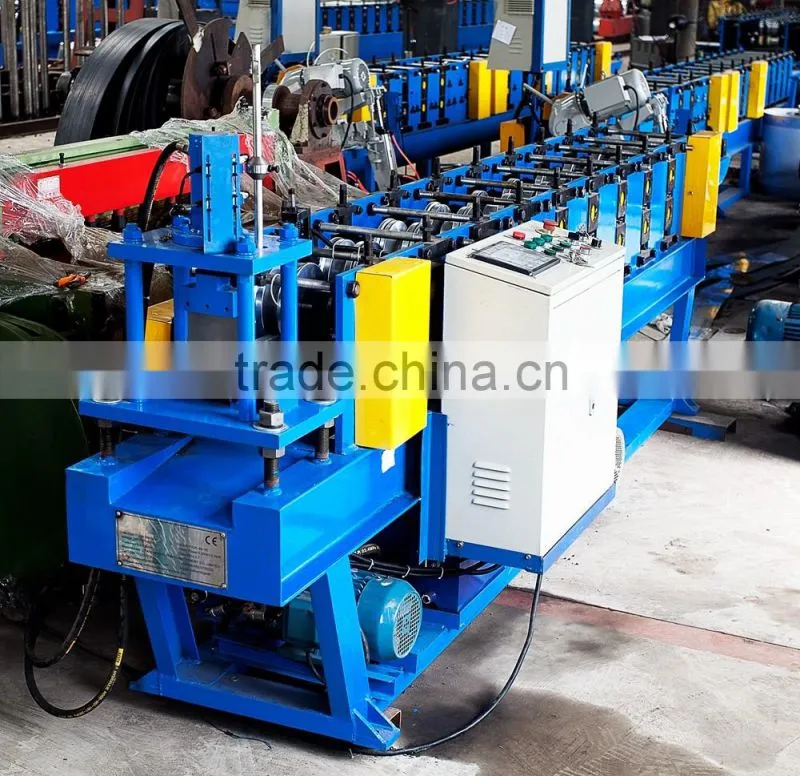

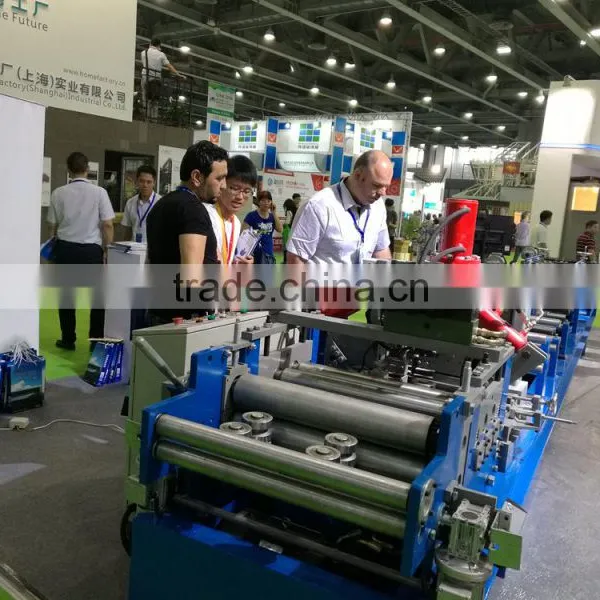

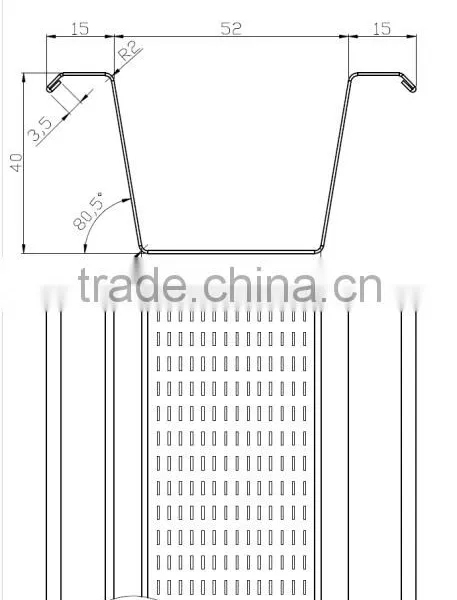

Top Hat Purlin Roll Forming Machine
1. Details of Top Hat Purlin Roll Forming Machine
| Material |
| Material Thickness(&):0.4-0.8mm |
| Applicable material:Galvanized Steel Coils, Hot Rolled Coils,Cold Rolled Coils,yield strength 245Mpa or 550Mpa |
| Machine Components |
| 1)Manual Decoiler: one set |
| Max. feeding width: 500mm, coil ID range 470mm±30mm |
| Capacity: Max. 3Ton |
| 2) Cold Rolling Mills: |
|
Rollers manufactured from bearing steel GCr15,precision machined,hard Chrome Coated with thickness 0.04mm(for longer life and anti-rust) ;
|
Motor Driving,Gear chain transmission, 16 forming stations and 7 rollers(3 upper rollers and 4down rollers)for straightening and levelling) |
| Main Motor=5.5KW , Frequency speed control |
| Forming speed approx.15-20m/min |
| 3)Hydraulic Cutting device |
| Pre-cutting, stop to cutting, use the same hydraulic motor drive |
| hydraulic motor: 3KW, Hydraulic pressure range: 0-16Mpa |
| Cutting tool material: Cr12, Heat treatment |
| 4)PLC Control System(Touch screen brand:Taiwan WEINVIEW,Inverter brand:Finland VOCAN/Denmark Danfoss ,Encoder brand: Japan Koyo) |
| Control the quantity and punching,cutting length automatically |
| Combined with: PLC, Inverter, Touch Screen, Encoder, etc |
| Cut-to-length tolerance≤±1mm |
| Control Voltage 24V |
| 5) Exit Rack Un-powered, two units |
2. Machine Features of Top Hat Purlin Roll Forming Machine
The advantages of top hap purlin machine are as follows:
1.Assembly process meets export standards, body frame and sideboard are spray-painted, other parts are finished through baking/chroming/galvanizing/blackening respectively, then unified assembly. After surface treatment, not only extend lifetime, but also improve overall appearance.
2.Manufactured from 45# steel, CNC lathes, Heat Treatment, hard Chrome Coated, surface with mirror treatment (more wearable and rust-free)
3.Rolling shafts are with precision machined. Solid core, 75mm, the material thickness increased to 0.8mm
4.Hydraulic cutting device, make the cutting smooth and neat.
5.Easy operation, low maintenance cost
3. Detailed Images of Top Hat Purlin Forming Machine
Machine Parts

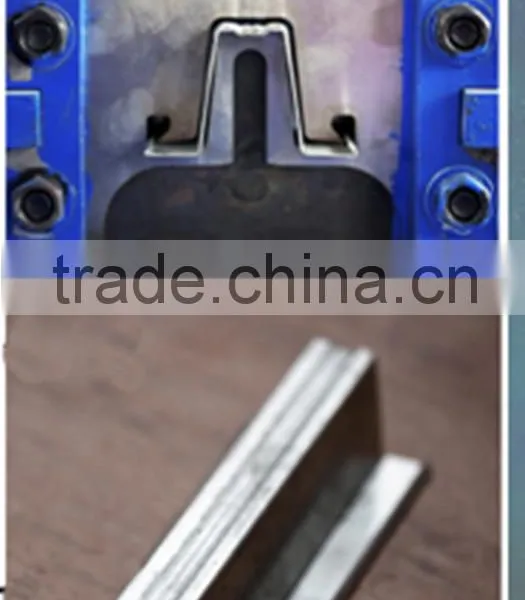

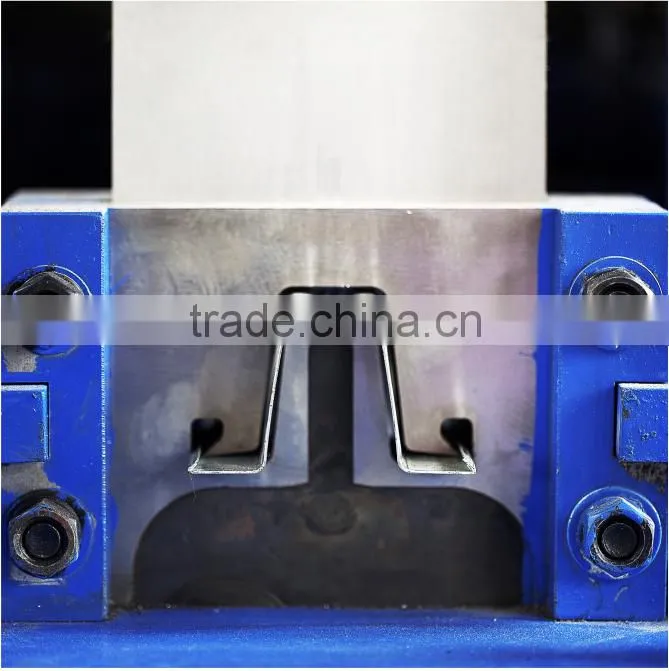

Name:Top hat purlin forming machine hydraulic cutter
Brand: BMS
Original: China
made by high quality mold steel Cr12 with heat treatment
Machine Parts

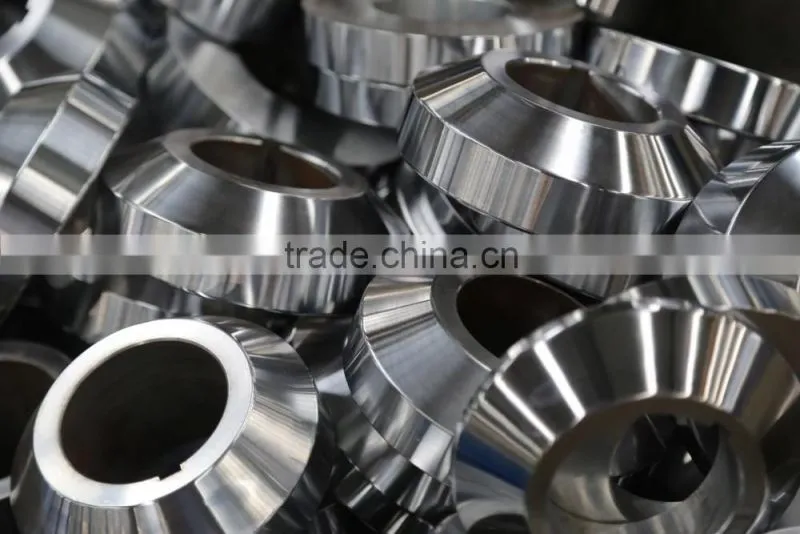

Name: rollers
Brand: BMS
Original: China
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.With black treatment or Hard-Chrome Coating for options.
Machine Parts
Name: PLC control system
Brand: SIEMENS/SCHNEIDER ELECTRIC
Original: Germany/France
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Encoder: KOYO/Omron (Japan brand)
