Metal Roof Panel Roll Forming Machine

Product Description

                             Metal Roof Panel Roll Forming Machine

1. Details of metal roof panel roll forming machine

Material

Material Thickness(&):0.3-0.6mm

Applicable material:Galvanized Steel Coils, Hot Rolled Coils,Cold Rolled Coils,yield strength 245Mpa or 550Mpa

Machine Components

1)Manual Decoiler: one set

Max. feeding width: 500mm, coil ID range 470mm±30mm

Capacity: Max. 3Ton

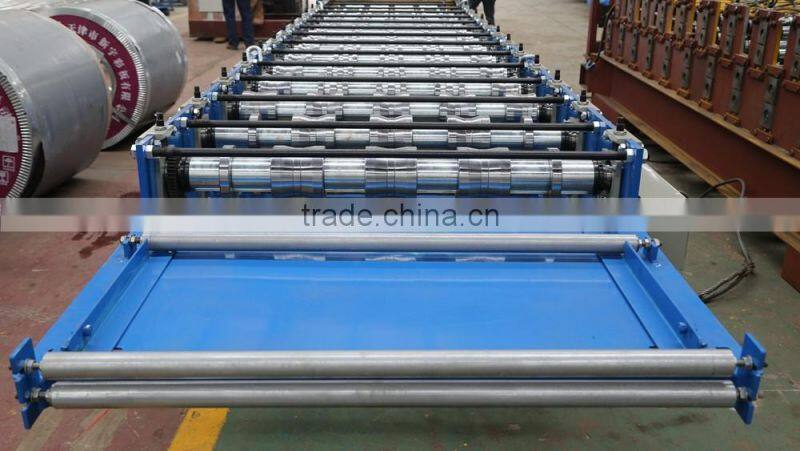

2)   Cold Rolling Mills:

Rollers manufactured from bearing steel GCr15,precision machined,hard Chrome Coated with thickness 0.04mm(for longer life and anti-rust)   ;

Motor Driving,Gear chain transmission, 14 forming stations and 7 rollers(3 upper rollers and 4down rollers)for straightening and levelling)

Main Motor=4KW  , Frequency speed control

Forming speed approx.12-18m/min

3)Hydraulic Cutting device

hydraulic motor: 2.2KW, Hydraulic pressure range: 0-16Mpa

Cutting tool material: Cr12Mov, Heat treatment

4)PLC Control System(Touch screen brand:Taiwan WEINVIEW,Inverter brand:Finland VOCAN/Denmark Danfoss ,Encoder brand: Japan Koyo)

Control the quantity and cutting length automatically

Combined with: PLC, Inverter, Touch Screen, Encoder, etc

Cut-to-length tolerance≤±1mm

Control Voltage 24V

5) Exit Rack Un-powered, two units

2. Machine Features of metal roof panel roll forming machine

The advantages of metal roof panel cold roll forming machineare as follows:
1.Easy operation, low maintenance cost
2. With manual pre-cutter, save materials.

3. Detailed Images of metal roof panel roll forming machine

Name: Roof panel roll forming machine  feeing device

Brand: BMS

Original: China

make the steel materials move more smoothly

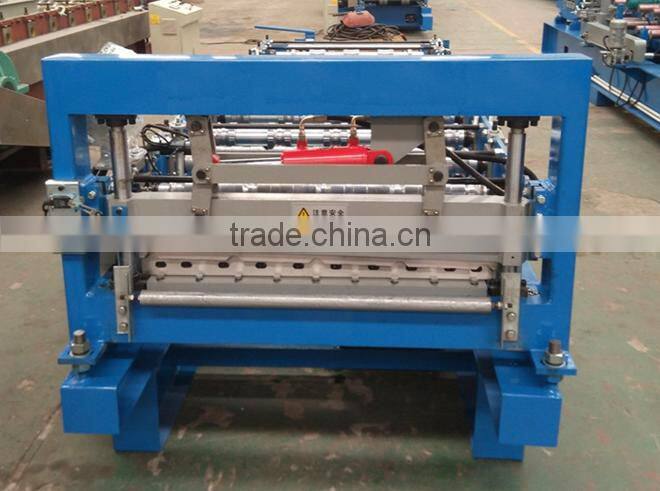

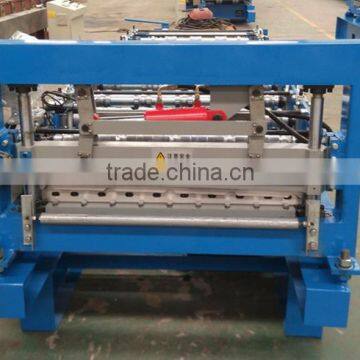

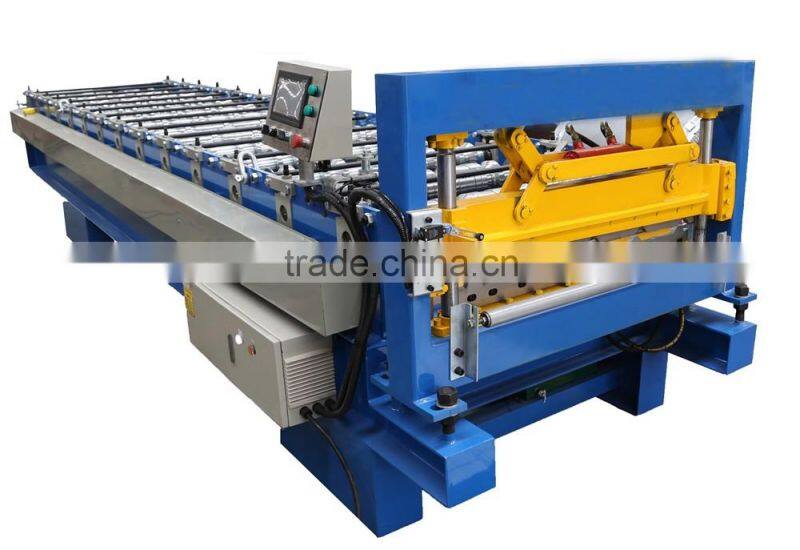

Name: Roof panel roll forming machine cutting system
Brand: BMS
Original: China
made by high quality mold steel Cr12Mov with heat treatment

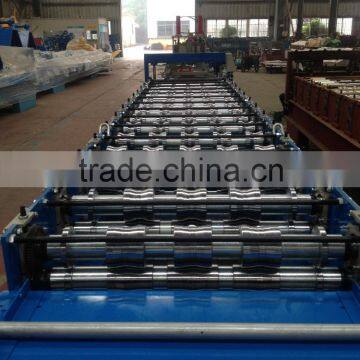

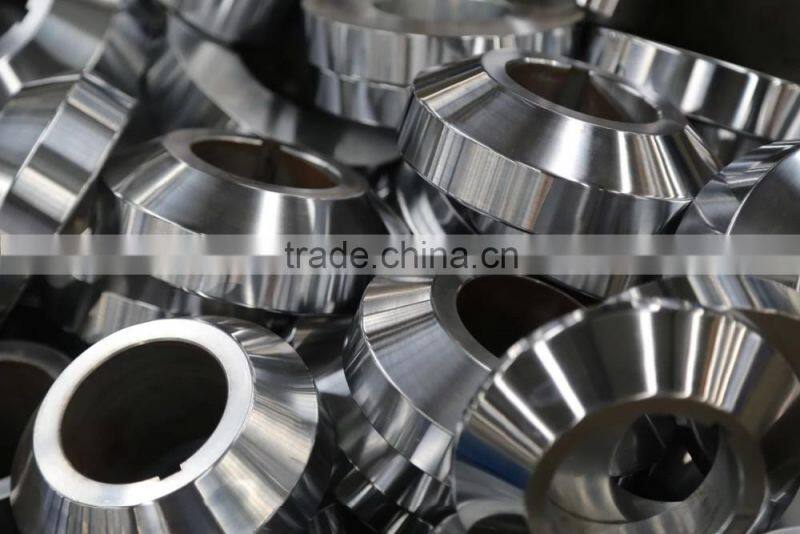

Name: rollers
Brand: BMS
Original: China
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.With black treatment or Hard-Chrome Coating for options.

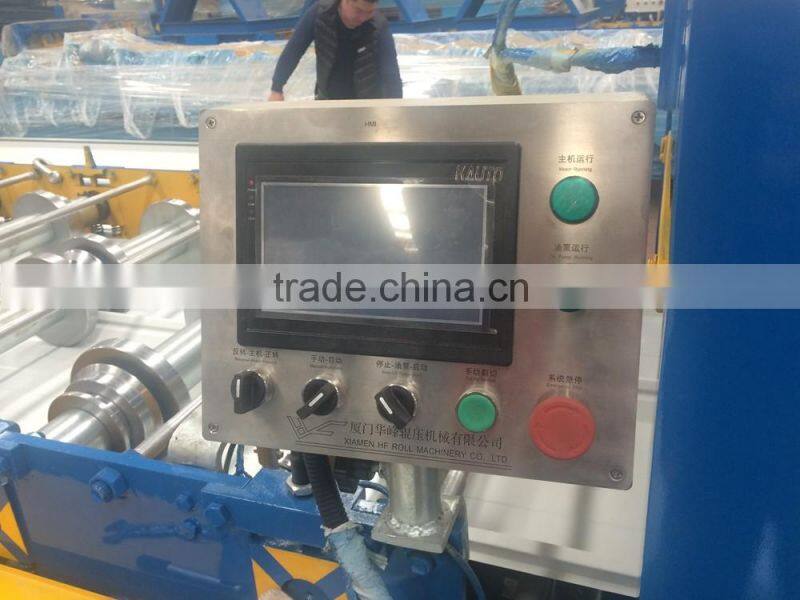

Name: PLC control system
Brand: SIEMENS/SCHNEIDER ELECTRIC
Original: Germany/France
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Encoder: KOYO/Omron (Japan brand)

4. Certifications

Our Service

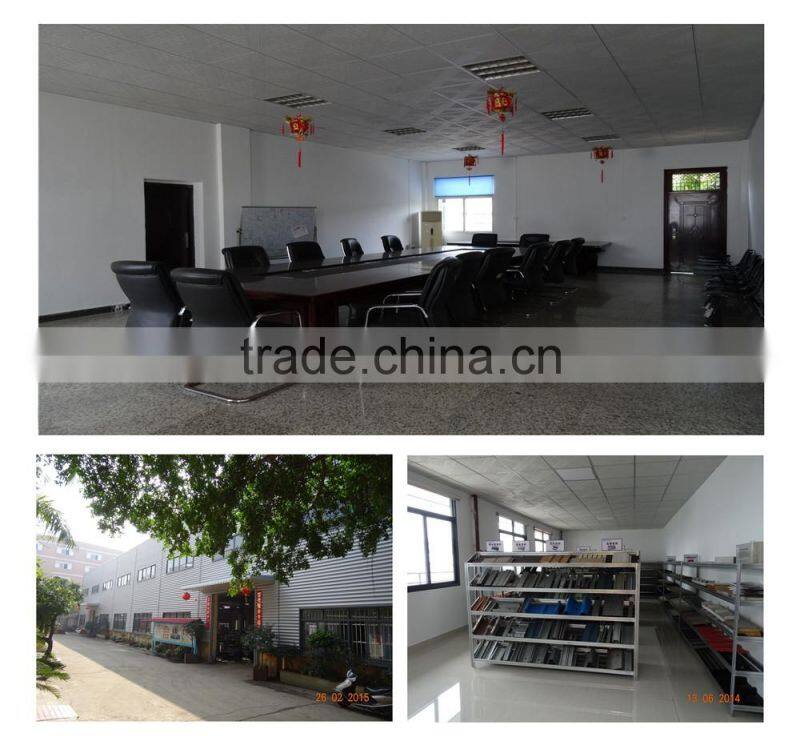

Conpany information

Conpany Show

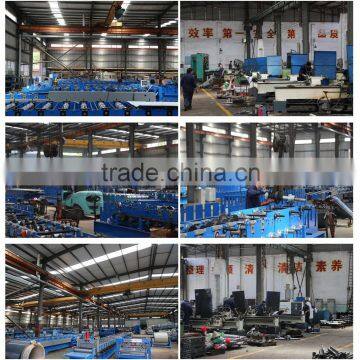

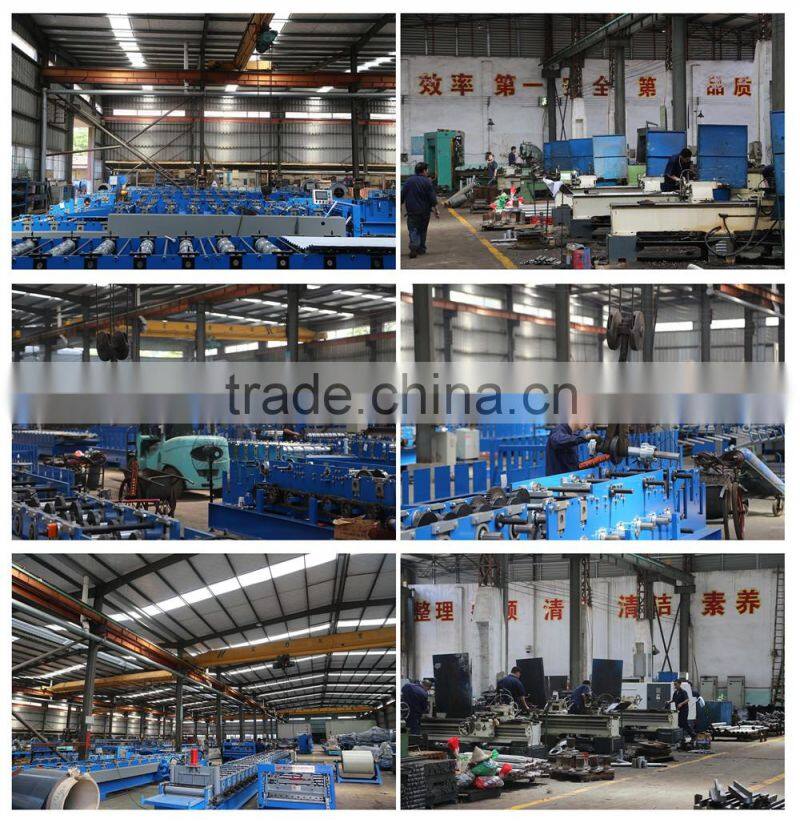

Factory Show

BMS Machine (formerly named as HF BRAND FORMING MACHINERY CO.,LTD) was established in 1996,which covers an area of MORE THAN 20000 SQUARE METERS. With 20 YEARS PROFESSIONAL EXPERIENCE, we have been the TOP 3 manufacturer and exporter of cold roll forming machines in China. We are an ISO9001 approved company, and have European CE certification (issued by SGS). We have the honor to serve some of the famous companies in the world such as TATA STEEL, BLUESCOPESTEEL, BRADBURY MACHINERY,etc.

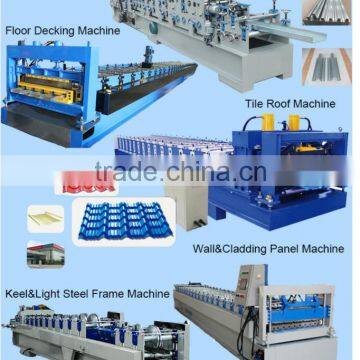

We manufacture wide range products of metal sheet cold roll forming machines as follows: 1) for Metal Building Industry/PEB (Pre-Engineering Building): HAYES style quick change CZ purlin machine(including automatic and quick-change type C purlin machine and Z purlin machine), light gauge steel framing machine(LGSF, Howick and SCOTTSDALE style), roof panel forming machine, corrugated panel roll forming machine, curving machine, glazed tile roll forming machine, floor decking machine, ridge cap roll forming machine, cladding facade system forming machine, cut-to-length slitting line etc., as well as some hydraulic shearing machine, hydraulic folding machine for gutter and flashing, etc.
