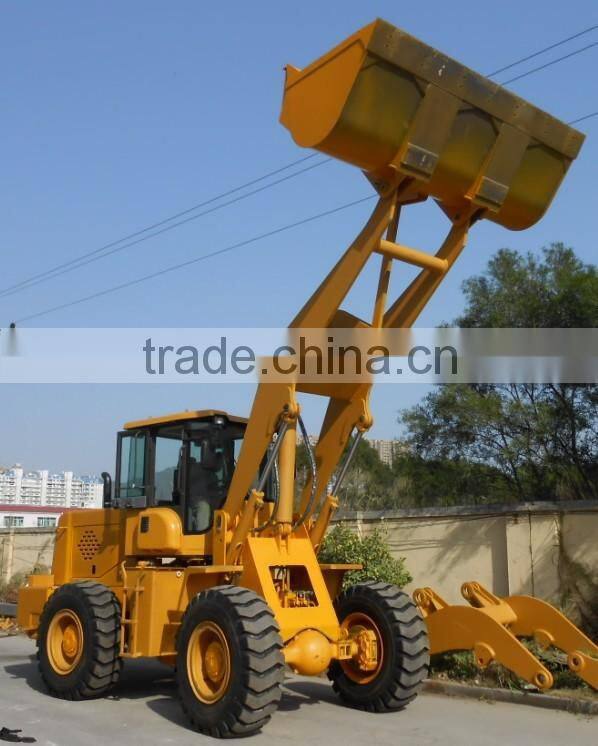

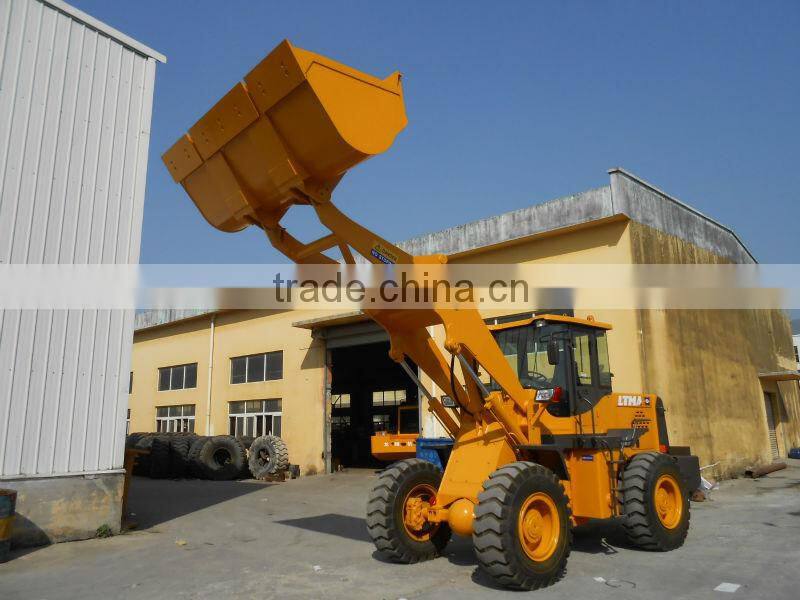

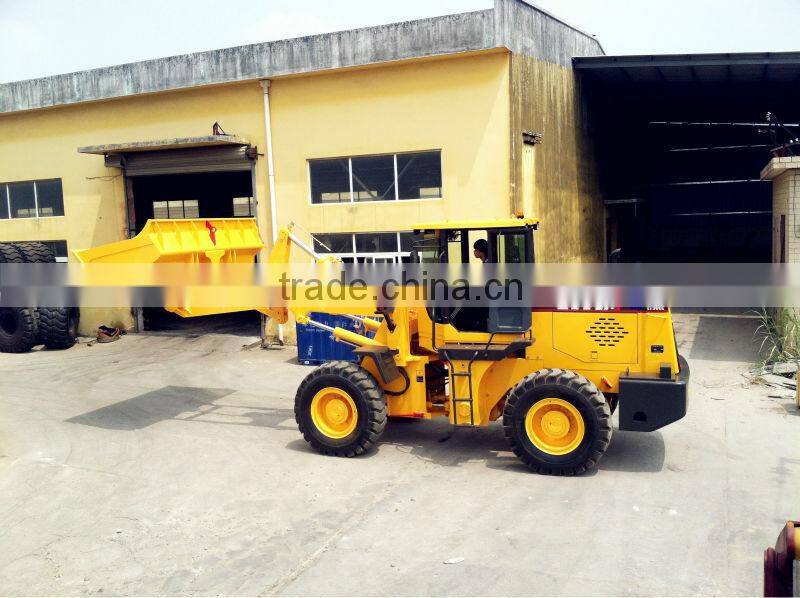

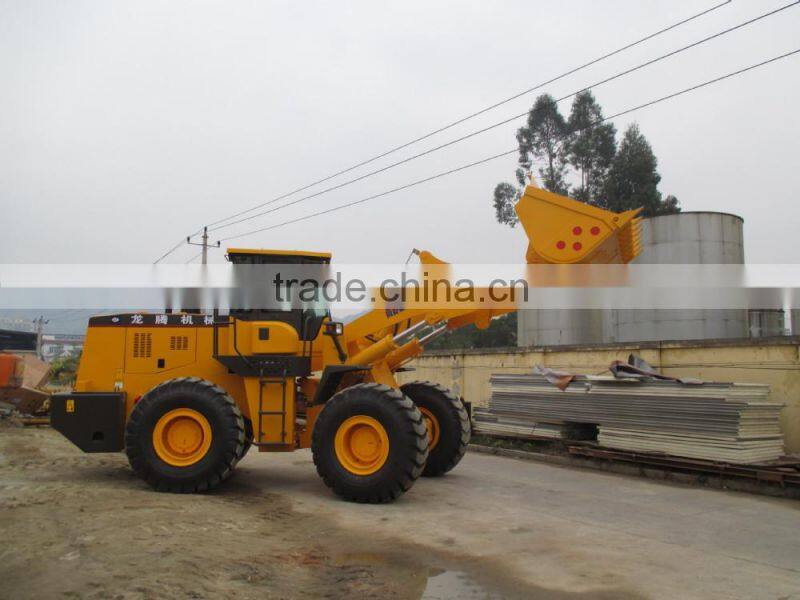

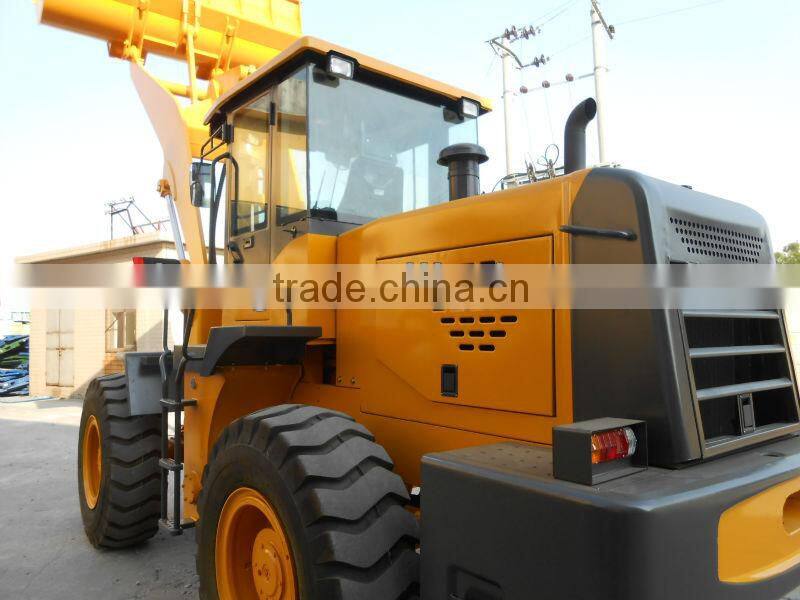

4.5m aircraft high lift loaders for Thailand grain loader
The specifications of LT 933L high lift loader:
Operating Weight |
10400kg |
Standard Bucket capacity |
1.7m3 |
Rated Load |
3000kg |
MAX-Tractive Force |
≥100KN |
MAX-Breakout Force |
98KN |
MAX-Climbing Angle |
30° |
MAX-Dumping Height |
4500mm |
Dumping Reach |
1255mm |
Overall dimension(L×W×H) |
7200×2250×3220mm |
Engine |
WEICHAI DEUTZ |
Model |
WD |
Type |
4-Stroke, Inline diesel engine, turbo charged direct-injection |
Qty of Cylinder-Bore/Stroke |
6-105×120mm |
Rated Power |
92KW |
Rated Speed |
23300r/min |
Transmission System |
|
Torque Convertor |
Single-stage four-element double-turbine hydraulic converter |
Transmission |
Planetary hydraulic gearbox |
Gear Shift |
2 Forwards, 1 Reverse |
Service Speed |
Forward 1 gear shitf………0-11km/h |
|
Forward 2 gear shitf………0-38km/h |
|
Reverse………………………0-16km/h |
Tire Type |
17.5-25 |
Tyre Pressure |
0.27-0.32MPa |
Sheering System |
|
Type |
All Hydraulic Coaxial Flow Amplificationg Steering System |
Sheering Angle |
35° Each Side |
Min-Turning Radius |
Outside of bucket 6415mm |
|
Outside if the rear tyre 5720mm |
Hydraulic System |
|
System Working Pressure |
16.0MPa |
Boom Lifting Time |
≤13s |
Total |
≤20s |
Brake System |
|
Service Brake |
Air Over Hydraulic Disc Brake |
Parking brake |
Flexible shaft control and clamp-type disc parking brake |
Fill Capacity |
|
Fuel tank |
180L |
Hydraulic tank |
200L |
Features and Advantages:
1).Competitive price:we manufacturer’s products are directly exported to buyers without the trading company in China
2).Optional accessories:There are some accessories could be chosen by users ,such as engine, transmission,floating forks ,marble slab carrier ,manure fork and grab ,bucket ,fixed platform etc.
About our factory:
Located in Xiamen Special Economy Zone, Xiamen Xinlongteng Machinery Co., Ltd. is specialized in the manufacture, sale, service and R&D of construction and engineering machinery. Our company is mainly engaged in the whole sale of various types of wheel loaders and variant products as well as accessories.
"The customer is highest, trustworthiness first" is the tenet of our company. Being an innovative company, our company always pays attention to economic, ecological and social development. Our goal is "to be the best supplier of wheel loader industry, outstanding enterprise".
All products have been certified by the State Bureau of Technical Supervision, and have been exported to Asia, Europe, Africa and America,Australia,.
3.5 - 5m high lift wheel loader Thailand grain loader
1.What's the Certificate do you have?
LTMA workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements. LTMA neverrecruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMA will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMA warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 90 days.
