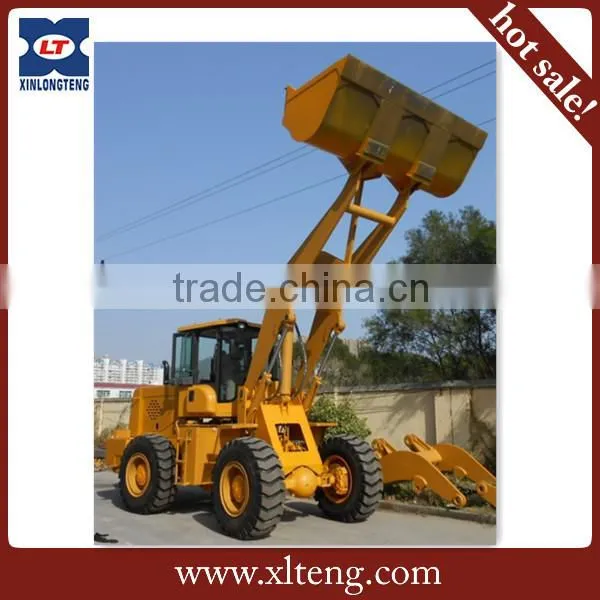

LTMA aircraft high loader with high lift bucket Loaders
Operating Weight | 11000kg |
Standard Bucket capacity | 2 m3 |
Rated Load | 3500kg |
MAX-Tractive Force | ≥100KN |
MAX-Breakout Force | 112KN |
MAX-Climbing Angle | 28° |
MAX-Dumping Height | 3400mm |
Dumping Reach | 1297mm |
Overall dimension(L×W×H) | 7450×2480×3200mm |
Engine | WEICHAI DEUTZ |
Model | WP6G140E22 |
Type | 4-Stroke, Inline diesel engine, turbo charged direct-injection |
Qty of Cylinder-Bore/Stroke | 6-105×120mm |
Rated Power | 105KW |
Rated Speed | 2200r/min |
Transmission System |
|
Torque Convertor | Single-stage four-element double-turbine hydraulic converter |
Transmission | Planetary hydraulic gearbox |
Gear Shift | 2 Forwards, 1 Reverse |
Service Speed | Forward 1 gear shitf………0-11km/h |
| Forward 2 gear shitf………0-38km/h |
| Reverse………………………0-16km/h |
Tire Type | 17.5-25 |
Tyre Pressure | 0.27-0.32MPa |
Sheering System |
|
Type | All Hydraulic Coaxial Flow Amplificationg Steering System |
Sheering Angle | 35° Each Side |
Min-Turning Radius | Outside of bucket 6415mm |
| Outside if the rear tyre 5720mm |
Hydraulic System |
|
System Working Pressure | 16.0MPa |
Boom Lifting Time | ≤6.8s |
Total | ≤12.5s |
Brake System |
|
Service Brake | Air Over Hydraulic Disc Brake |
Parking brake | Flexible shaft control and clamp-type disc parking brake |
Fill Capacity |
|
Fuel tank | 180L |
Hydraulic tank | 200L |
Optional equipments of LT 958 PAY loader and boom loader:
1) A/C, joystick,
2)ZF-Transmission, Liuzhou-ZF Transmission, HangChi-Transmission
3)Cummins engine , ShangChai engine, Steyr engine
4)Tubelss Tire, Tire Chain, Guizhou Tire
5) OEM ACCEPTABLE, exclusive Brand and appearance.
6) Quich hitch, Fork, grapple, rock bucket,jackhammer,snow blade and so on.
1). Quality: With CE and ISO certificate, 10 km away from the Xiamen Port, China, 14 years' manufacture's experience specially in loader. LTMA have the customers covers more than 30 districts and zones in the world.
2) Competitive price:we manufacturer’s products are directly exported to buyers without the trading company in China
3).Optional accessories and Customizing:There are some accessories could be chosen by users ,such as engine, transmission,floating forks ,marble slab carrier ,manure fork and grab ,bucket ,fixed platform etc.we can customzing the machines specially for your requirement.

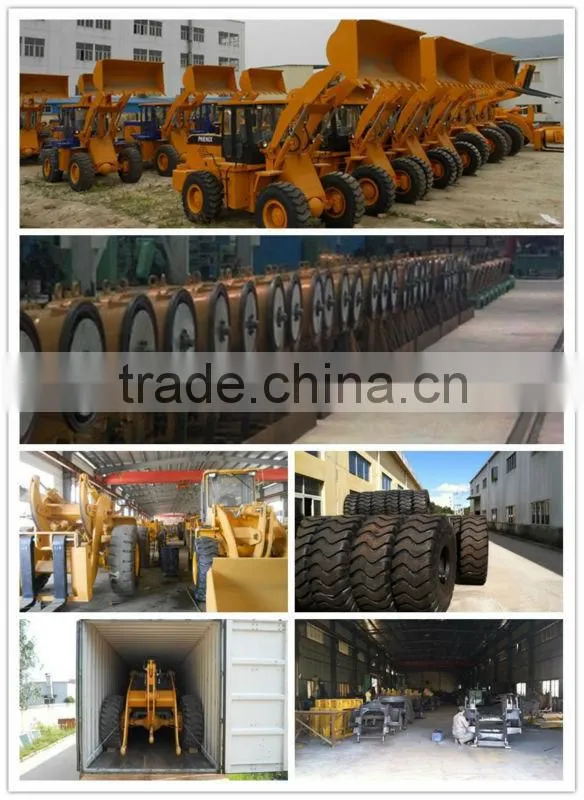

About our factory:
LTMA workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements. LTMA neverrecruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMA will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically.The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMA warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, the balance paid before shipment.100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 90 days.
ltma aircraft high loader with high lift bucket Loaders
...
....
