We are a professional in One-stop Service with efficient design, manufacture and installation of chicken farm house construction .

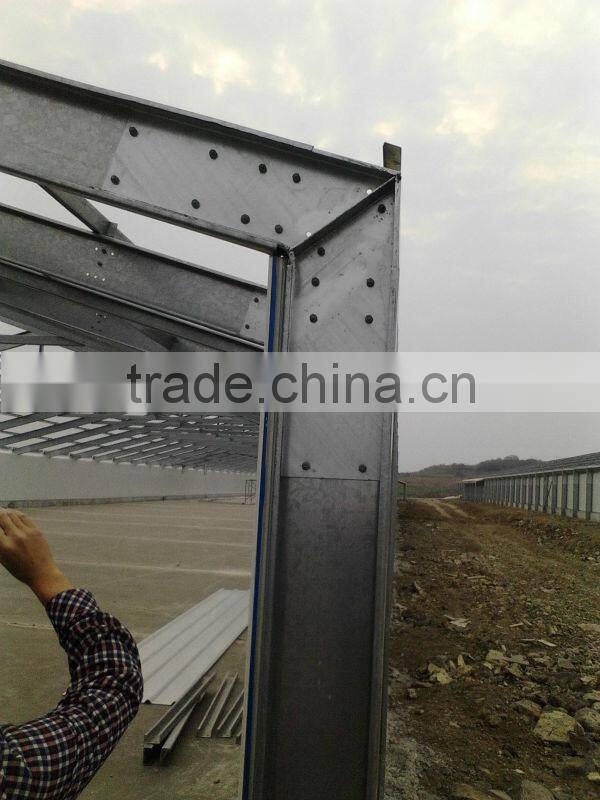

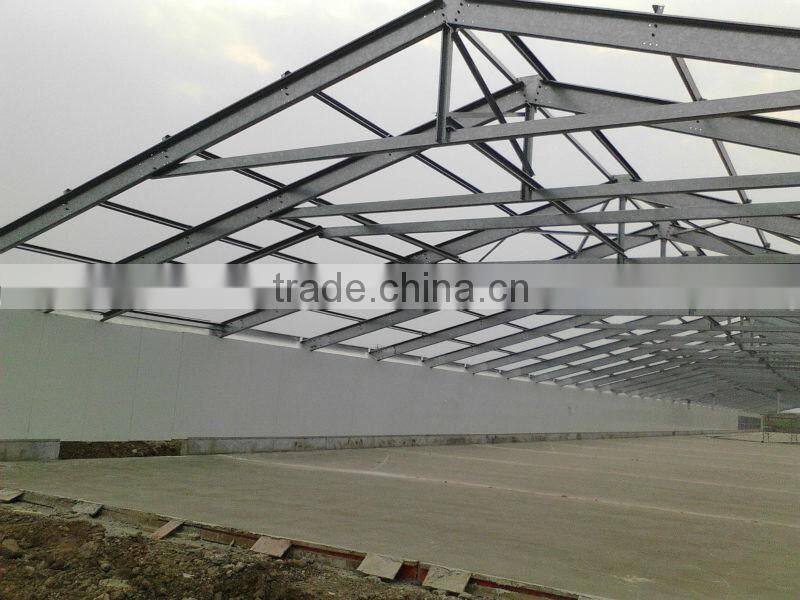

Light steel structure prefabricated chicken farm house is formed by the main steel framework linking up square tube, C section steel components, roof and walls using fiberglass sandwich panel.
It is widely applied in modern breeding base.
The performance of our broiler sheds, combined with our proven ability to deliver on time and within budget, has made chicken growers throughout the world.

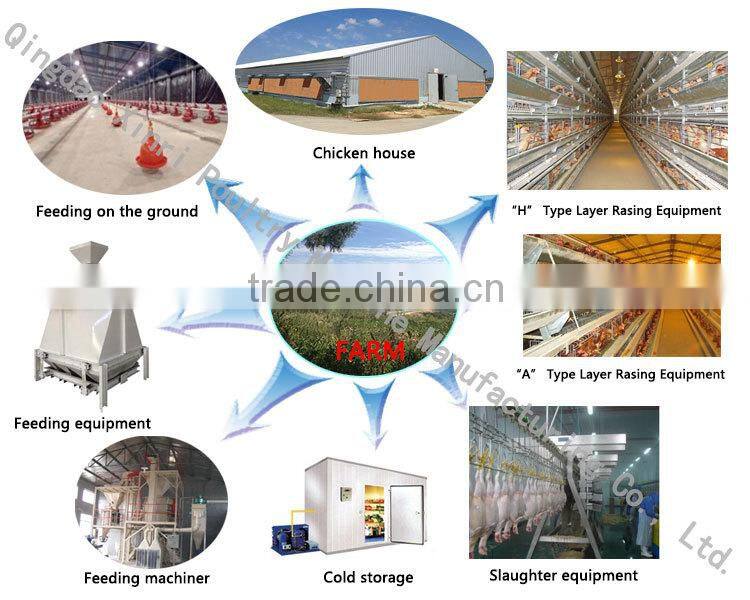

Chicken House composed of :
1) Main feeding system
2) Feed pan system
3) Nipple drinking system
4) Ventilaion fan system
5)cooling pad system
6) Environmental control system
7) Lighting system
8) Spraying system
9)Heating system
1.Main feeding system
This system delivers feed from the silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line which control the motor on and off automatical to release automatic delivery.

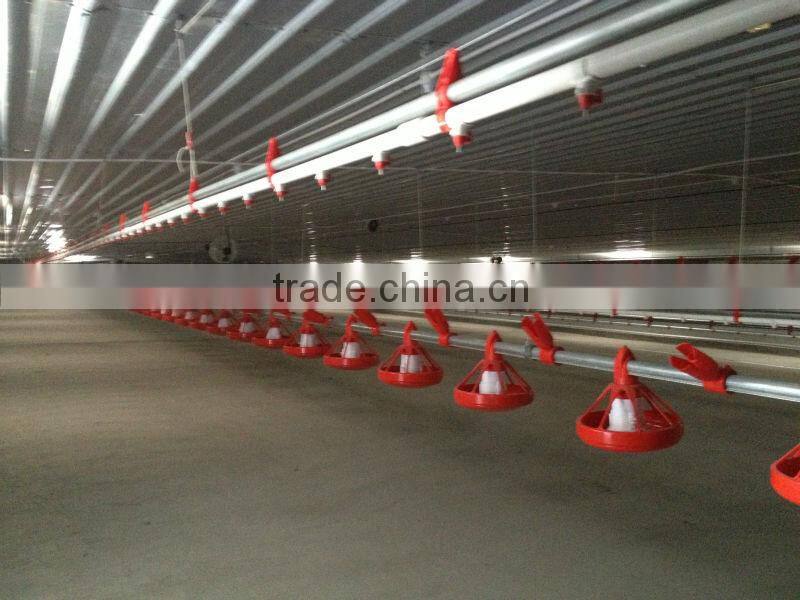

2.Feed pan system
This system deliver feed automatically through motor under the control of feed sensor,which ensure birds feeding during whole growing period.
3.Nipple drinking system
This system can provide fresh and clean water for poultry which is crucial for the growth of poultry.The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.

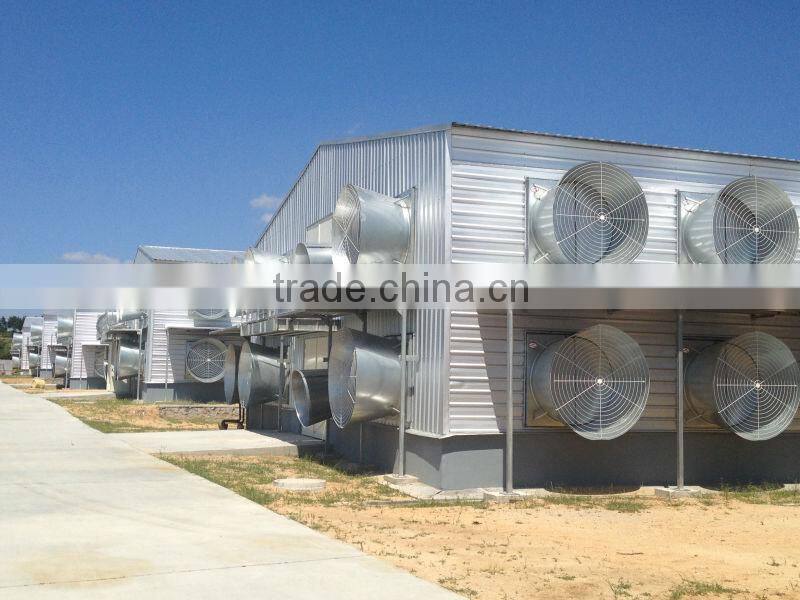

4.Ventilation fan system
This system controls climate conditions,fresh air,humidity and temperature in poultry shed,it is vital for growing birds.This system include Poultry house fan, Cooling pad,Air inlet window.

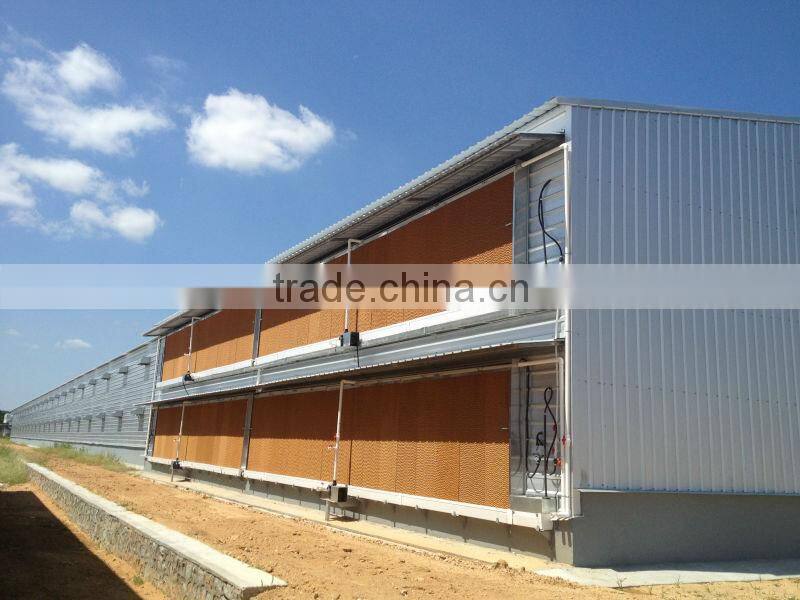

5.Cooling pad system
6.Environmental control system
This system saves the labor and the resources under the condition of assuring the optimum growth environment of the chickens. It is imported from Israel can set an optimum working mode according to the local climate and raising environment.

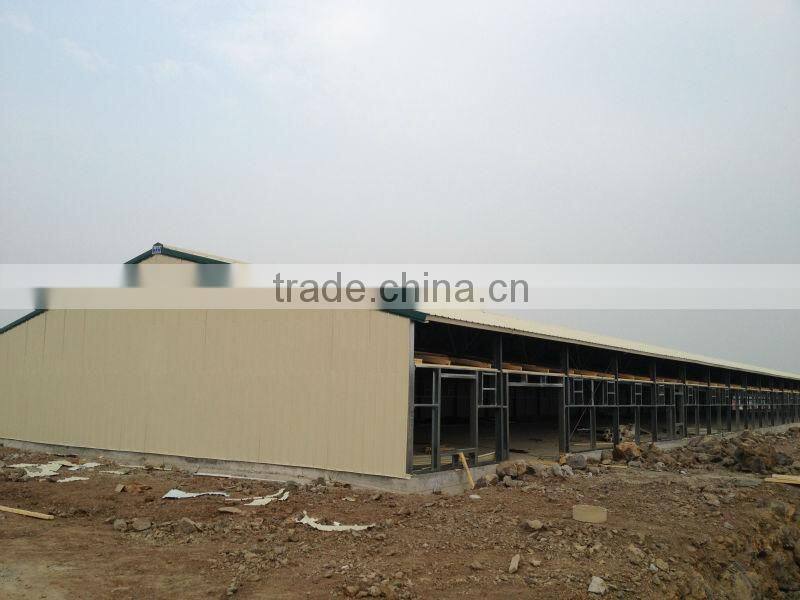

Our projects of poultry house
Steel structure design common norms are as follows:
"Steel Design Code" (GB50017-2003)
"Cold-formed steel structure technical specifications" (GB50018-2002)
"Construction Quality Acceptance of Steel" (GB50205-2001)
"Technical Specification for welded steel structure" (JGJ81-2002, J218-2002)
"Technical Specification for Steel Structures of Tall Buildings" (JGJ99-98)
Commonly used steel grades and performance of steel
Carbon structural steel: Q235, Q345,etc.
High-strength low-alloy structural steel
Quality carbon structural steel and alloy structural steel
Special purpose steel
Characters:
a) Wide span: single span or multiple spans, the max span clear distance is 36m, without middle columns.
b) Low cost: unit price range from USD35 to USD70/square meter FOB according to customer’s request.
c) Fast construction and easy to install
d) Long term service life: more than 50 years.
e) Environmental protection, stable structure, earthquake resistance, water proofing, and energy saving
Quotation:
Below info needed for the quotation:
Project Name |
steel structure Chicken House |
Size |
total length and width, roof and eave height, roof pitch, etc |
Roof and Wall |
option: EPS, fiber glass, rock wool or PU sandwich panel |
Door and Window |
PVC or Aluminum alloy; sliding door or rolled door |
Column and Beam |
option:hot rooled or welded H section, I section; painting or galvanized |
Purlin |
option:C-Section or Z-section |
Local Climate |
d speed |
Drawing |
1. according to clients' drawing |
2. design as per clients' dimension and requests | |
Package |
Naked loaded in shipping container or as per requests. |
Loading |
20 GP, 40HQ |
Looking forward to your inquiry and visiting.
Contact person :Jeany Zhao
Tel:18561337146
Skype:zhaonajeany
Send Inquiry to This Supplier
